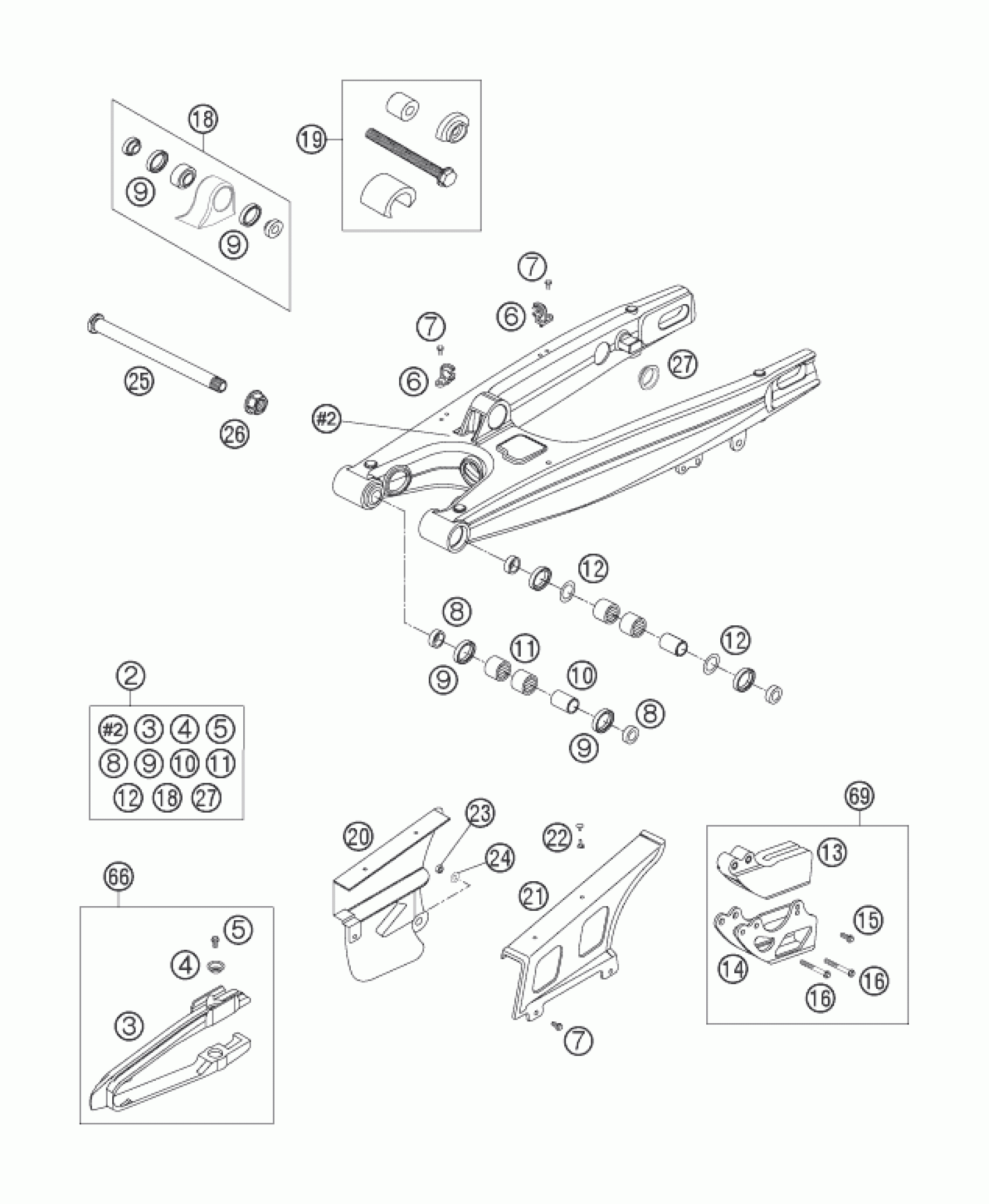

KTM 250 XCF-W 2007 SWING ARM Diagram

SWINGARM CPL. 2005

54804230244

$589.37

CHAIN GUARD 05

50304066100

$25.52

BUCKET

72210079000

$3.00

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

Bucket f. shaft seal ring 03

54804034000

$5.23

radial shaft seal 25x32x7

0760253270

$6.63

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

NEEDLE BEARING HK 2216

58033097000

$14.02

STOP DISK 22,2X31,7X1

54603036000

$3.08

CHAIN GUIDE REAR '94

54607066100

$28.60

RETAINING PLATE CPL.

54607070144

$31.41

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

TOOL BEARING MOUNTING PDS

50329000044

$752.92

CHAIN GUARD SMALL EXC 2000

50304060100

$9.62

CHAIN GUARD LARGE EGS

54607460000

$33.77

HOLLOW RIVET TWO PARTS

20012062055

$3.08

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

Nut with flange M16X1,5 WS=19

54804038000

$2.05

CLOSING COVER ROUND 03

58404041100

$1.49

CHAIN GUARD CPL. 05

50304066110

Unavailable

CHAIN GUIDE KIT REAR CPL.

54607069000

Unavailable
