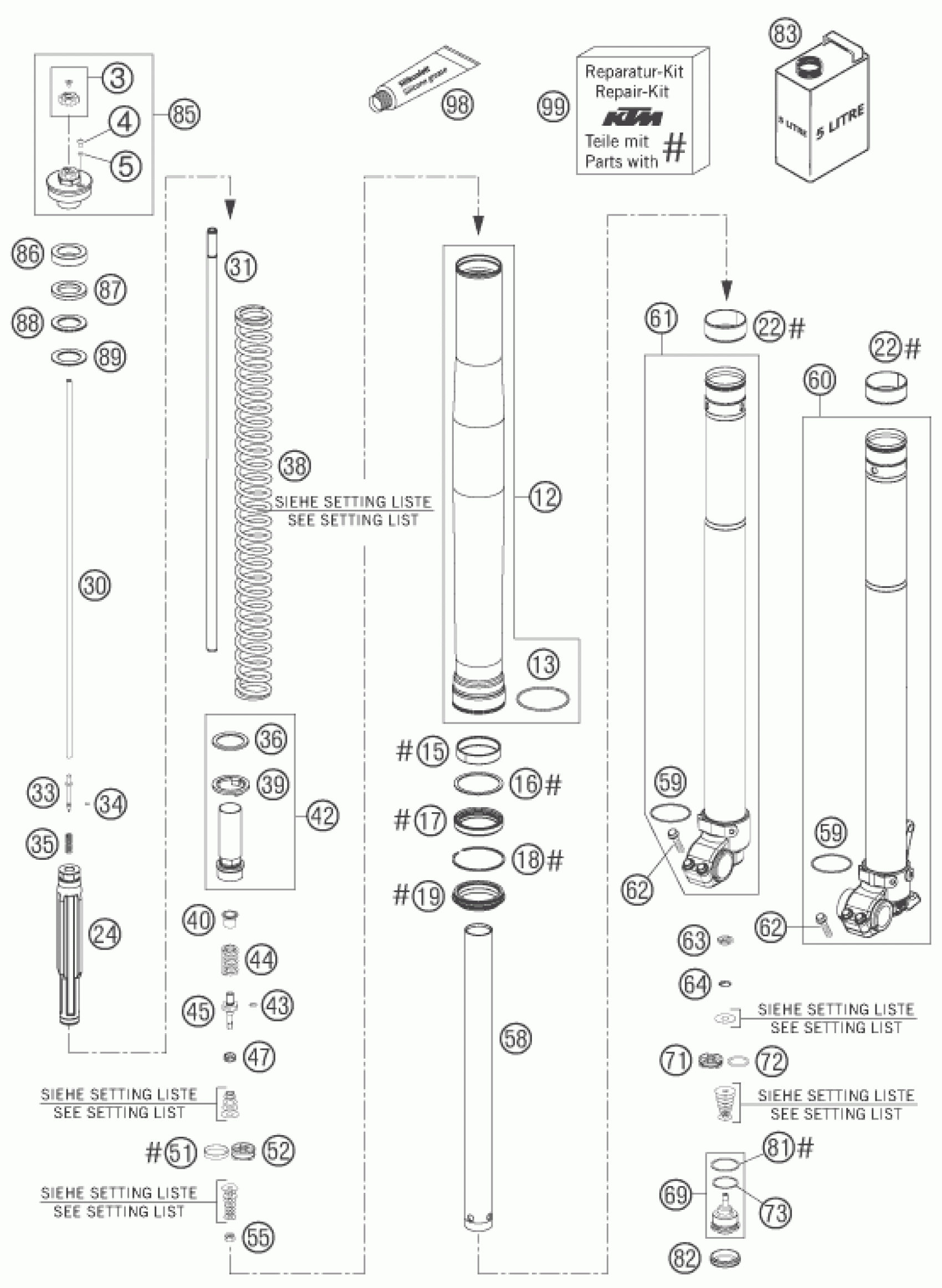

KTM 250 XCF-W 2007 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

12

OUTER TUBE L=577 D=54/60

48600492E

$325.10

13

Round-wire snap ring 48x2

48600016

$3.08

15

DU-BUSH D48XD52X12DDL02

48600429

$12.05

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST CAP D=48 58,4X11,8

48600400

$12.80

22

DU-BUSH D47XD49X20DDL02

48600428

$12.05

24

Stop 12,4x31,9x200 cpl.

48600557S

$40.50

30

Adjustment tube 6x520

48600559

$13.55

31

Piston rod 12x554

48600568

$99.20

33

Needle 4,5x43,6

48600277

$5.51

34

O-ring 2x1,5 NBR70

48600298

$1.49

35

Spring (5,4) 4-23 rebound

48600444

$3.08

36

Washer 32x42x2,5 plastic

48600113

$11.12

39

Spring retainer 33,5x43x3

48600021

$16.73

42

SCREW SLEEVE M29,3X1 L=90 CPL.

48600556S

$29.21

43

O-ring 6x1,2 NBR70

48600299

$1.49

44

Spring (13,9) 17-32 rebound

48600511

$1.49

45

TAP REBOUND 07

48600513

$15.98

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

TUBE 29,3X1X390 D=8,5MM

48600081

$155.20

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S + TUBE CPL.07

48600237S1

$649.54

61

AXLE CLAMP R/S + TUBE CPL. 07

48600238S1

$444.48

62

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

Tap compression cpl.

48600586S

$37.67

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE5 5L 2005

48600401S1

$149.59

86

Preload bush 26,5x42x10

48600038

$3.08

87

Preload bush 26,5x42x5

48600037

$4.11

88

Preload bush 42x26,5x2,5

48600036

$2.05

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR-KIT EXC FRONT FORK06/07

R14013

$106.21

85

Screw cap M51X1.5 cmpl. 0

48600558S

$72.87

89

Preload bush 26,5x42x1,5

48600053

$4.11

40

Spring retainer 12,3x19x1,25 r

48600525

$2.05

38

SPRING 3,8N/MM SET D=4,9MM

91410012S

Unavailable

38

SPRING 4,0N/MM SET D=5,0MM

91410013S

Unavailable

38

SPRING 4,2N/MM SET D=5,0MM

91410014S

Unavailable

38

SPRING 4,4N/MM SET D=5,1MM

91410015S

Unavailable

38

SPRING 4,6N/MM SET

91410016S

Unavailable

3

SETTING KNOB + SCREW

48600564S

$5.23

5

O-ring 3,7x1,6 NBR70

48600009

$1.49

4

Cross flat head screw M4x6

48600058

$1.82
