CARBURETOR

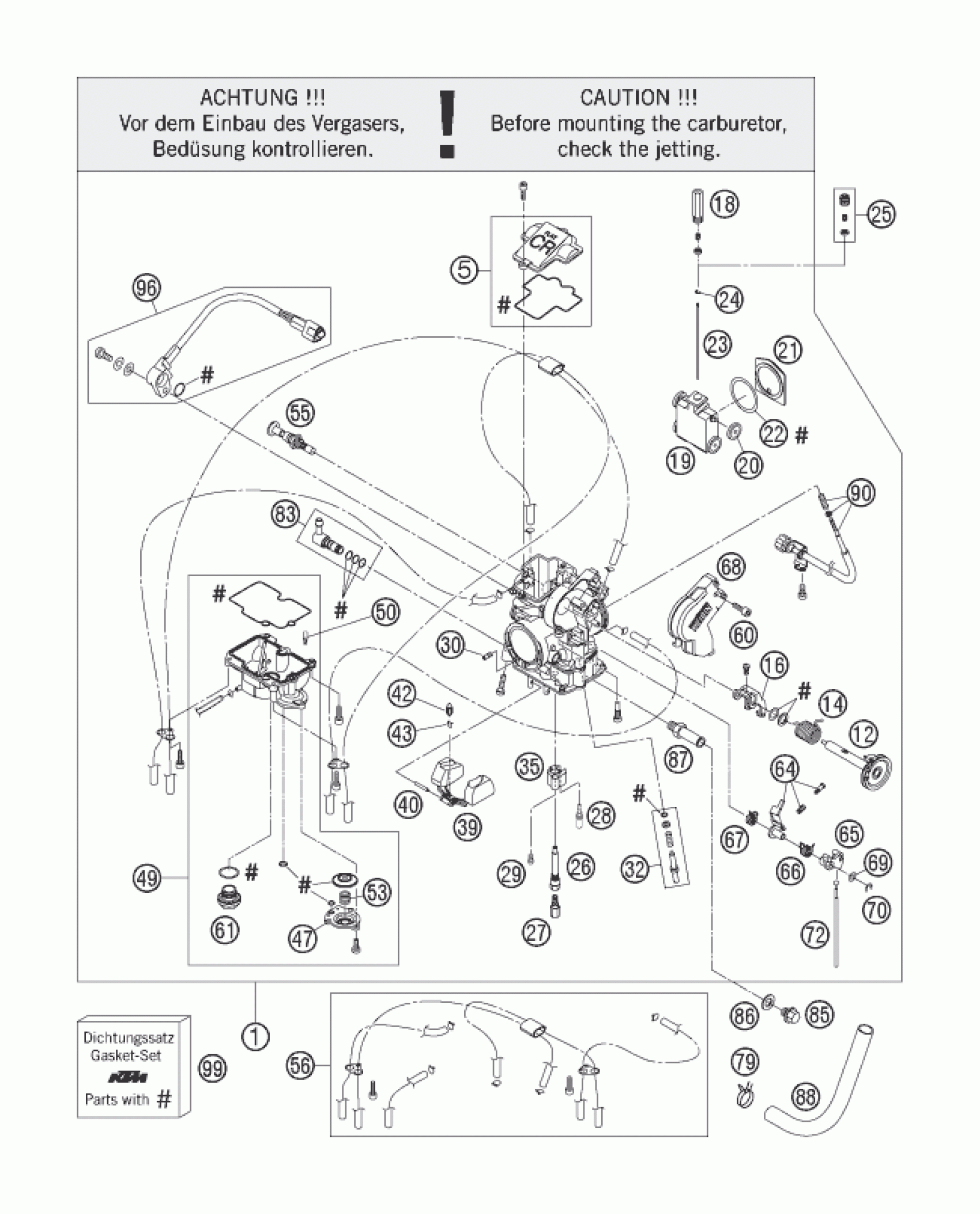

KTM 250 XCF-W 2006 CARBURETOR Diagram
#
16
LINK ARM THROTTLE VALVE CPL.
57331035051
$84.89
19
THROTTLE VALVE CPL.
57331035000
$345.01
20
BUSHING THROTTLE VALVE
59031035050
$10.65
12
THROTTLE SHAFT CPL. 06
57331046100
$91.58
14
COIL SPRING THROTTLE SHAFT
57331046050
$9.15
1
CARB FCR-MX 3900G,TPS 06
77031001100
$899.01
5
CARBURETOR COVER WITH GASKET
57331027044
$39.26
21
GASKET PLATE THROTTLE VALVE 04
57331035153
$191.85
22
GASKET WASHER THROTTLE VALVE
59031035052
$17.94
23
JET NEEDLE KEIHIN OBETN
59031034200
Unavailable
23
JET NEEDLE KEIHIN OBETP
59031034100
Unavailable
23
JET NEEDLE KEIHIN OBETQ
59031034300
Unavailable
24
BAR CLIP
59031029000
$5.23
25
NEEDLE SET SCREW CPL.
57331032000
$40.10
26
NEEDLE JET FCR-MX
59031121000
$32.72
27
MAIN JET 168 KEIHIN
54531623168
$13.08
27
MAIN JET 170 KEIHIN
54531623170
Unavailable
27
MAIN JET 172 KEIHIN
54531623172
Unavailable
27
MAIN JET 175 KEIHIN
54531623175
Unavailable
27
MAIN JET 178 KEIHIN
54531623178
Unavailable
28
IDLE JET 38 KEIHIN
54531607038
Unavailable
28
IDLE JET 40 KEIHIN
54531607040
$12.61
28
IDLE JET 42 KEIHIN
54531607042
Unavailable
29
STARTER JET 85
59031051085
$16.73
30
IDLE AIR JET 100 KEIHIN
57331107100
$14.76
32
ADJUST SCREW CPL. FCR-MX
59031017100
$19.63
35
BUFFER PLATE
57331085000
$12.33
39
FLOAT CPL.
57331009000
$59.64
40
ARM PIN FLOAT
57331008000
$2.05
42
FLOAT NEEDLE
54631220000
$31.41
43
CLAMP
54531621000
$4.11
47
COVER ACCELERATOR PUMP
57331060000
$27.01
49
FLOAT CHAMBER CPL.
77031011000
$178.48
50
JET POWER JET 50 KEIHIN
54631085050
Unavailable
50
JET POWER JET 60 KEIHIN
54631085060
Unavailable
50
JET POWER JET 70 KEIHIN
54631085070
$13.27
53
COIL SPRING
59031059000
$7.38
55
STARTER VALVE CPL.
57331048000
$86.85
56
BREATH.HOSE FCR-MX KEIHIN CPL.
57331098000
$107.52
60
SCREW F. COVER KEIHIN
57331038100
$7.88
61
PLUG M 18X1
54531699000
$20.09
64
INTERMEDIATE LEVER CPL.
57331062000
$33.28
65
LINK LEVER
57331056000
$8.13
66
SPRING LINK LEVER
57331059000
$9.49
67
SPRING INTERMEDIATE LEVER
57331159000
$10.84
68
CARBURETOR COVER 06
57331038200
$8.13
69
WASHER LINK LEVER
57331087000
$2.05
70
E-CLIP
57331084000
$2.05
72
ROD ACCELERATOR PUMP
57331061000
$26.73
83
HOSE CONNECTOR CPL.
59031013044
$65.35
90
STOP SCREW CPL. FCR-MX
57331025000
$56.65
96
TPS-SENSOR FCRMX 190MM 2006
59031077200
$144.64
99
GASKET SET FCR-MX KEIHIN
57331099000
$119.67
27
MAIN JET 160 KEIHIN
54531623160
Unavailable
27
MAIN JET 162 KEIHIN
54531623162
Unavailable
27
MAIN JET 165 KEIHIN
54531623165
Unavailable
23
JET NEEDLE KEIHIN OBEKT
57331034500
$27.56
18
SLIDE STOP 03
59031029010
$13.96
79
YDNAC-clamp 10173 (16MM)
58431082100
$1.49
85
PLUG DIN0910-M 10X1
0910100003
$4.11
86
sealing ring DIN 7603 10x14x1
0603100141
$2.05
87
HOSE CONNECTOR KEIHIN
59031040300
$39.45
88
ENGINE BREATHER TUBE
77031050000
$12.89
