FRONT FORK, TRIPLE CLAMP

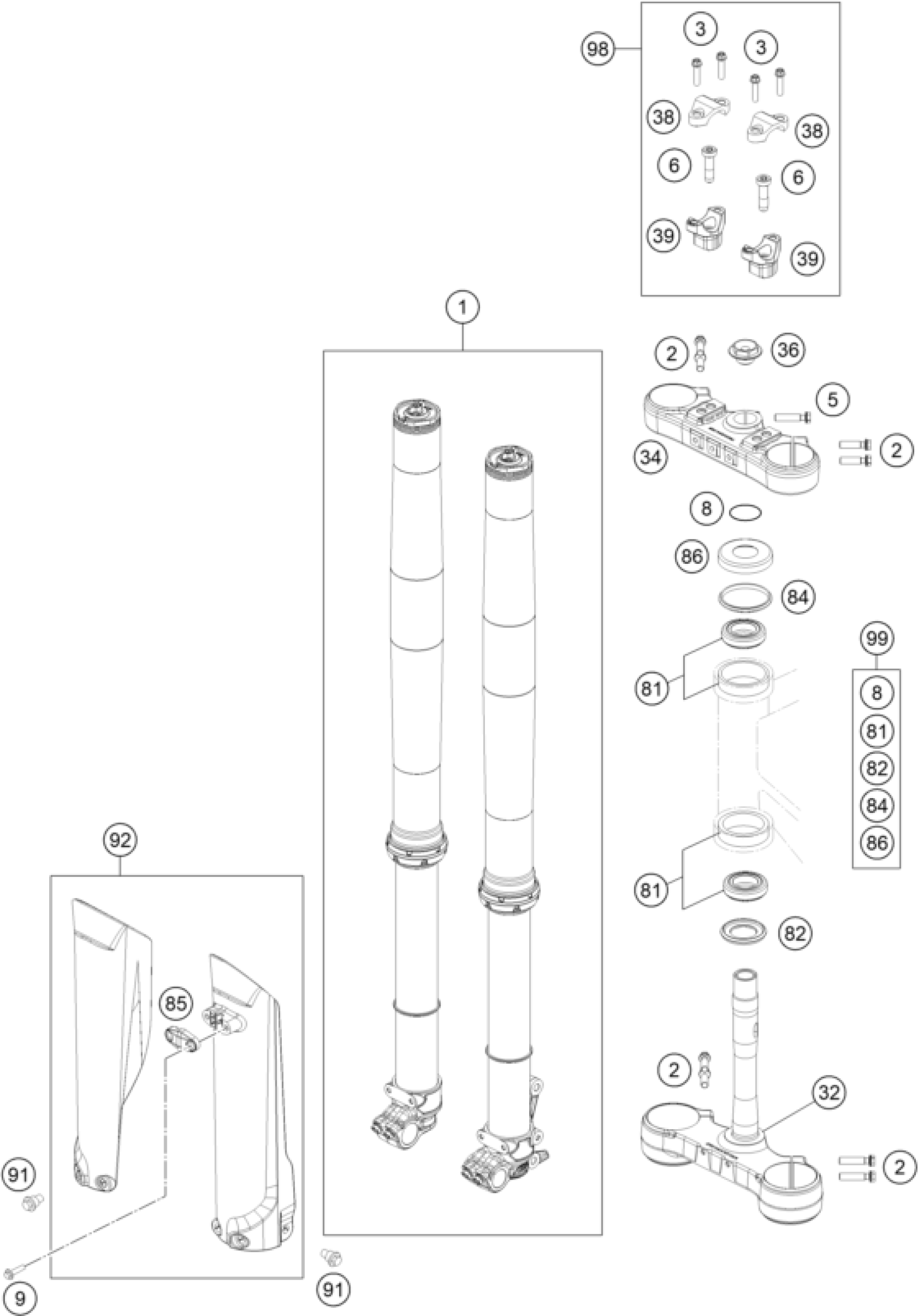

KTM 250 XC-W TPI 2021 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
1
Fork EXC 250/300 TPI Sixdays 2
14188T6401
$2,353.01
2
HH collar screw M8x30
0025080306
$3.08
3
HH collar screw M8x25
0025080256
$2.05
5
HH collar screw M8x35 TX40
0025080356
$4.11
6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
$4.11
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
SCREW F. PLASTIC K60X20AL SW6
0017060206
$3.08
32
BOTTOM TRIPLE CLAMP CPL.
78101132122
$206.07
34
TOP TRIPLE CLAMP X=22MM
78101034022
$148.19
36
COLLAR SCREW M20X1,5 WS17 AL
72001036000
$11.49
38
HANDLEBAR CLAMP 28MM
77201038000
$25.05
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
39
Handlebar mount D28mm-H37mm
59401039037
$34.12
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
77701084000
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
Clamp for brake hose
77701085100C1
$2.05
86
STEERING HEAD COVER
78101086000
$6.07
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
Fork protection kit EXC 21
77701094100C1E
$51.51
98
HANDLEBAR SUPPORT KIT D28/H37
00050000921
Unavailable
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
