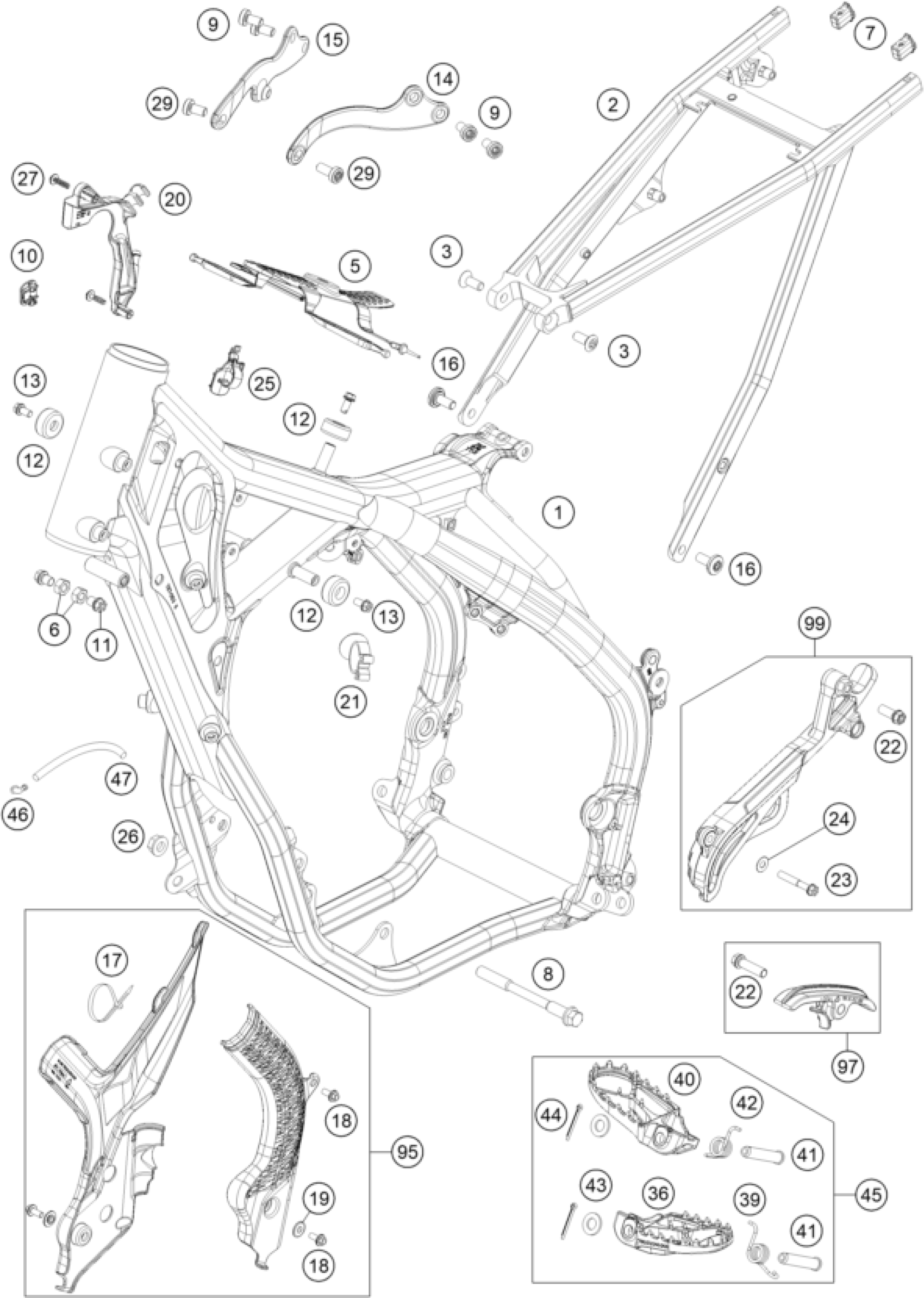

KTM 250 XC-W TPI 2021 FRAME Diagram

Frame 557T2

5570310100033

$2,165.64

Subframe

79103002100

$302.46

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

TANK REST RUBBER

79607012000

$10.09

Hexagon nut DIN934 M8

0934080003

$2.05

Rear frame bit

79103002010

$4.11

engine brac.scr. M10x115

77203014000

$8.97

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

Cover control head sheet

79111013010

$2.05

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

TANK ROLLER 12X26X12 '98

50307014000

$11.02

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

Engine brace, left 250/300 TPI

5570301300001S

$47.96

Engine brace, right 250/300 TP

5570301400001S

$49.36

Special screw M8X18 TORX45 SL

79003003000

$3.08

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

cable tie 140/ 3,5 mm Schwarz

44011176140

Unavailable

HH collar screw M5x10 TX30

0025050106

$1.49

Bush f. frame protection 03

54803092060

$4.11

Cable holder throttle cable gu

79711013000

$10.09

Cable bracket d8

79711013010

$1.49

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x40 TX30

0025060406

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

wire holder / fuel ventilation

79107013010

$1.49

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

SHCS M8x20 TX45

0035080206S

$5.32

FOOTREST L/S EXC 2017

79603040000

$44.78

FOOTREST SPRING L/S 2016

79003045000

$2.05

FOOTREST R/S EXC 2017

79603041000

$44.78

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING R/S 2016

79003044000

$2.05

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTREST-SET

79603040033

$113.03

ANGLE PIECE '97

50303089000

$5.23

preformed hose 6x10 ECO

50430087000

Unavailable

Frame protection set

7910309410030

$26.55

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

SPROCKET COVER KIT

55403096010

$24.58
