Description

Price

1

Side fairing, right

79106004000BJ

$41.22

2

AIR FILTER BOX bottom part

79106001000EB

$30.59

3

Air filter cover left

79106003000BJA

$53.10

4

Air filter cover left

79106005000BJA

$53.10

5

AIR FILTER BOX front part

79106001010EB

$17.84

6

Air boot

55706026000

$64.41

7

AIR FILTER SUPPORT

50406016000

$18.60

8

AIR FILTER

79006015000

$32.12

9

SPLASH GUARD

79006010000

$15.79

10

FILTER MOUNTING BRACKET

79006017000

$2.05

11

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

12

HH collar screw M6x25 TX30

0025060256

$3.08

13

SPECIAL SCREW M6X15X3

83008000015

$3.08

14

Subframe bush

79103002020

$2.05

15

quick release rubber grommet

47106003160

$4.11

16

HH collar screw M6x16 TX30

0025060166

$3.08

17

HOSE CLAMP 45-65MM

78006027000

$5.23

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

chain slider bushing

77304066050

$1.49

21

THROTTLE CAP

50406012040

$30.85

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

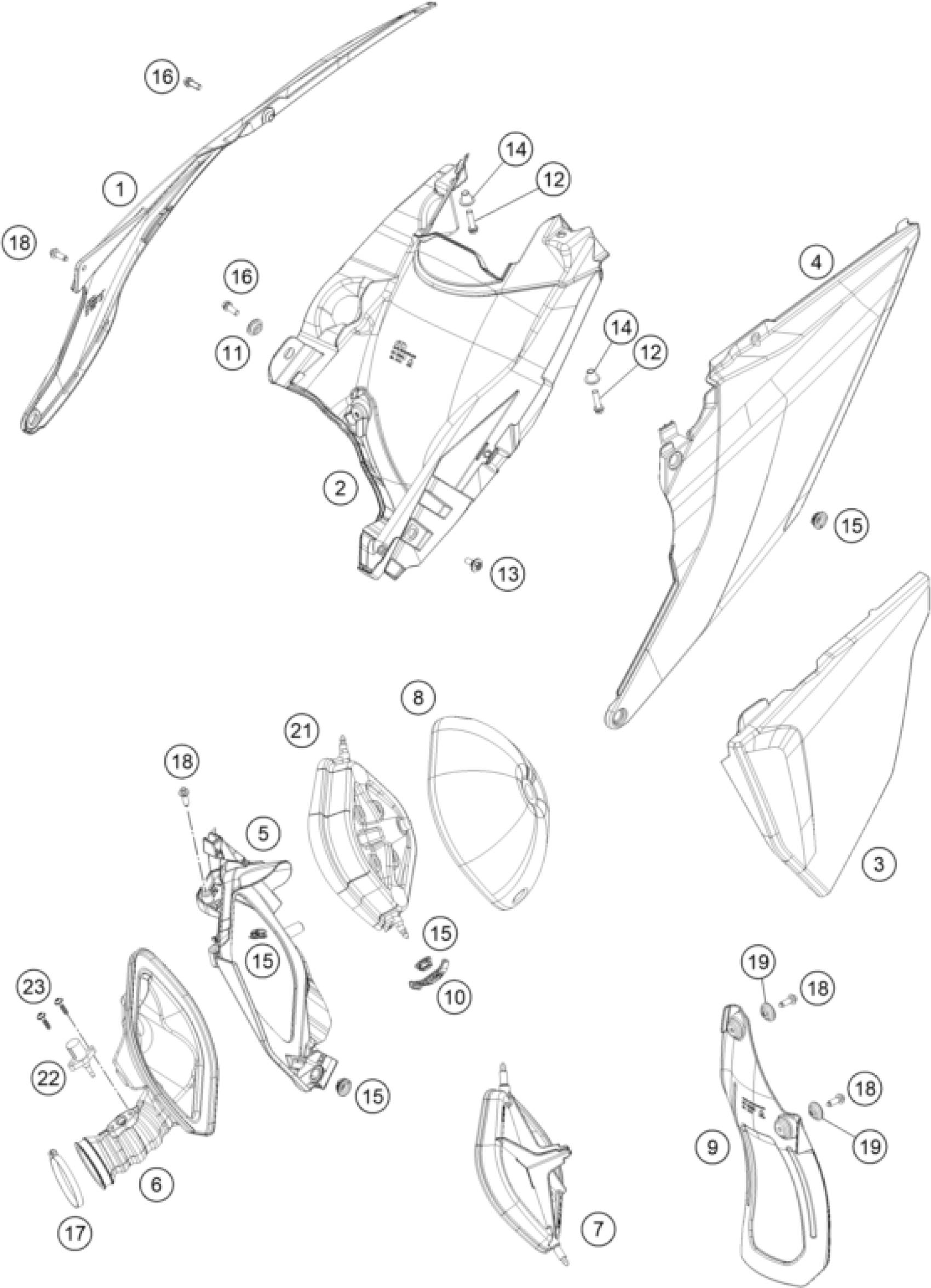

KTM 250 XC-W TPI 2021 AIR FILTER Diagram

Side fairing, right

AIR FILTER BOX bottom part

Air filter cover left

Air filter cover left

AIR FILTER BOX front part

Air boot

AIR FILTER SUPPORT

AIR FILTER

SPLASH GUARD

FILTER MOUNTING BRACKET

COLLAR BUSH. F.REAR FENDER 07

HH collar screw M6x25 TX30

SPECIAL SCREW M6X15X3

Subframe bush

quick release rubber grommet

HH collar screw M6x16 TX30

HOSE CLAMP 45-65MM

SCREW F. PLASTIC K60X20AL SW6

chain slider bushing

THROTTLE CAP

AMBIENT-AIR TEMPERATURE SENSOR

SCREW FOR PLASTIC K50X18 T20
