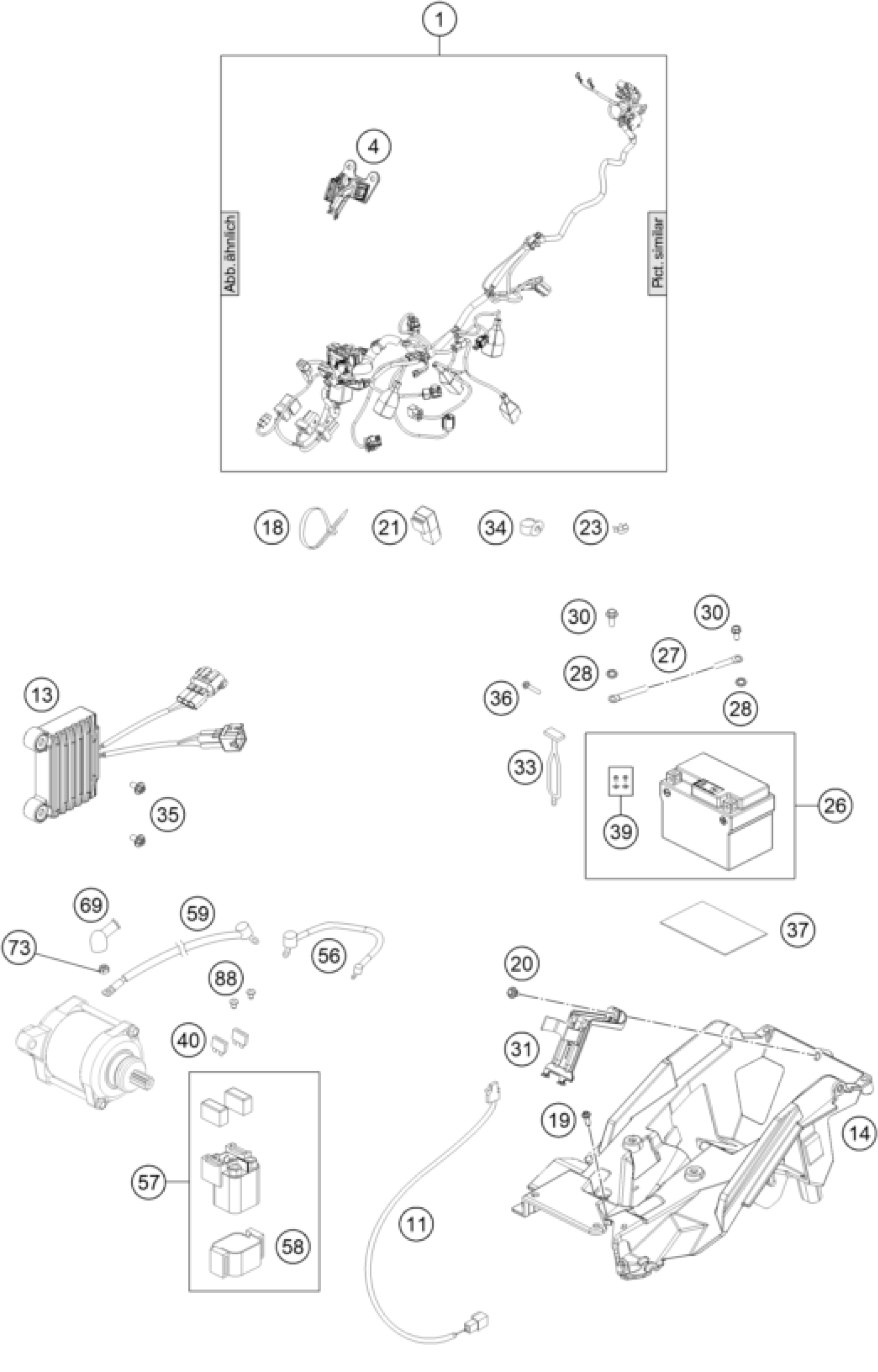

KTM 250 XC-W TPI 2019 WIRING HARNESS Diagram

main harne 250/300 XC-W cpl 17

55611175033

$451.13

SUPPORT BRACKET

77711083000

$22.52

BRAKE LIGHT SWITCH FRONT 2014

77711050000

$52.91

VOLTAGE REGULATOR

79611034000

$192.32

Battery box

55411055000

$31.22

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

WIRING HOLDER 12MM

57013072000

Unavailable

WIRING HOLDER 16MM

57013072100

$1.49

battery 12V/24Wh

79111053000

$166.05

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

HH collar screw M5x12 TX30

0025050126

$3.08

BATTERY BOX SUPPORT

79011056100

$3.08

RUBBER L=145MM

50303018000

$6.44

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

HH collar screw M6x15 TX30

0024060156

$3.08

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

METAMOLL 90X45X3MM 03

59003001099

$2.05

Plug-in fuse, big 20A

58011109120

$1.49

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

Starter reley 12V 99

58211058000

$72.64

STARTERCABLE 1100MM 07

55111059000

$26.08

Protection cap for starter eng

77240099000

$6.35

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

screw kit

79111053010

$4.11
