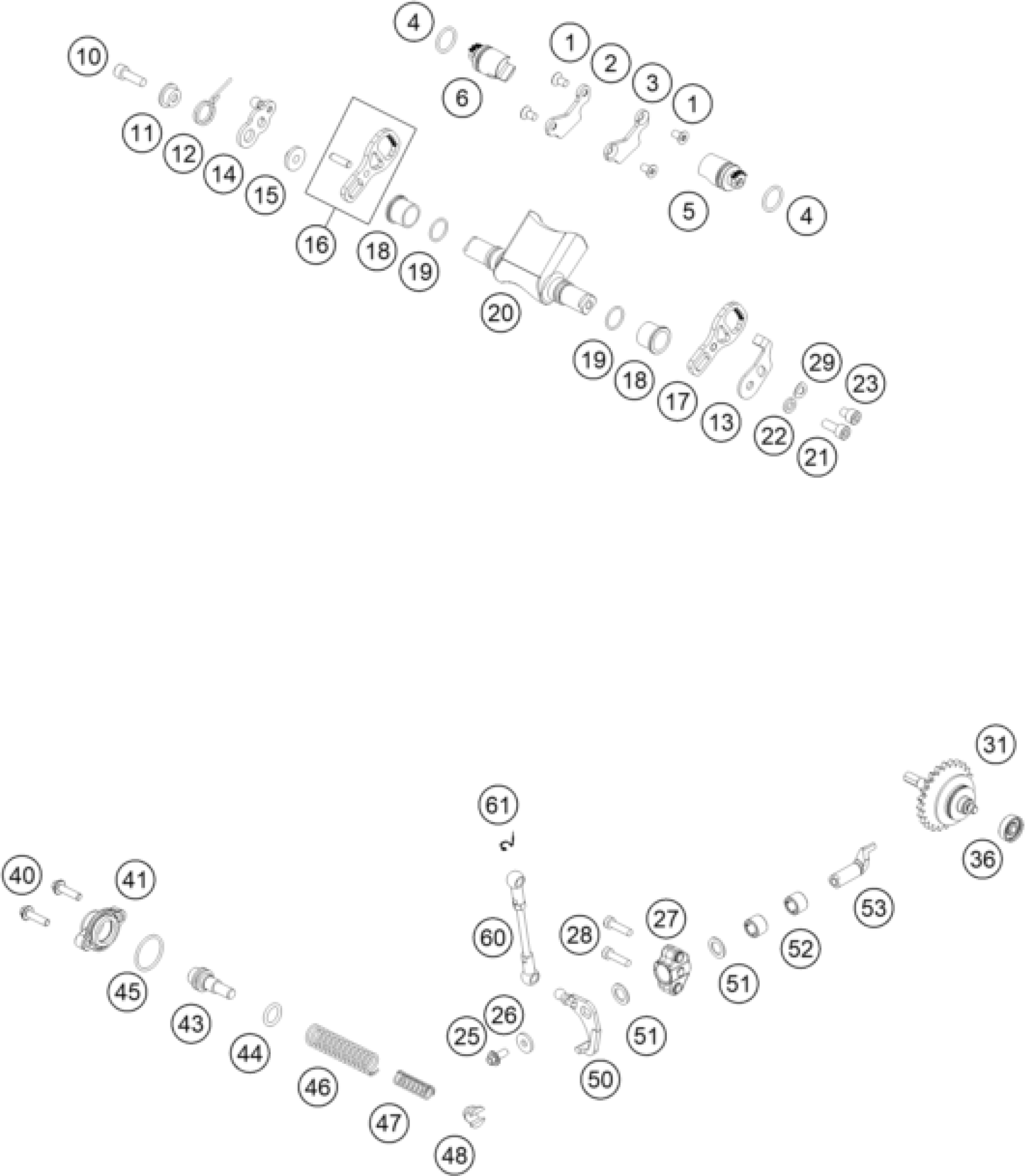

KTM 250 XC-W TPI 2019 EXHAUST CONTROL Diagram

hex lobe countersunc screw M5x

0019050106S

$2.05

RETAINING PLATE R/S 07

54837062000

$10.56

RETAINING PLATE L/S 07

54837063000

$7.10

O-ring 16x2 Viton 75

0770160021

$3.08

CONTR.VALVE 250 LEFT KPL.

55437061044

$43.84

CONTR.VALVE 250 RIGHT KPL.

55437062044

$43.84

AH SCREW DIN0912-M 6X20

0912060203

$2.05

SPRING SLEEVE

54637067000

$4.11

OVERLOAD SPRING

54637066000

$4.11

RETAIN.PLATE CONTROL FLAP '92

54637085300

$5.23

CONTROL LEVER WITH BALL TYPE

54637065000

$21.03

BUSHING SLEEVE

54637068100

$7.85

GEAR SEGMENT CPL. RIGHT 07

54837064144

$102.56

GEAR SEGMENT L/S 250 07

54837064150

$29.72

exaust flap bushing

50437023100

$5.23

O-RING 15,00X1,50 VITON

0770150151

$3.08

CONTROL FLAP 250

55437020000

$93.30

AH SCREW DIN0912-M 6X16

0912060163

$1.49

WASHER 6,5X11X2

54637056100

$1.49

AH collar screw DIN 912 M6x8

0912060083

$2.05

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

WASHER DIN7349-5X15X2

0349000050

$1.49

BEARING SUPPORT

55437058000

$15.51

HH collar screw M5x25 TX30

0025050256S

$1.49

spring washer DIN 137 B - 6

0137060003

$2.05

Centrifugal governor assy.

55537050244

$188.96

Grooved ball bearing 626LLBC3/

54637098100

$12.61

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

COVER LID 250-380'98

54637070100

$18.69

SPRING GUIDE 250/300

54837075000

$14.95

O-RING 12,37X2,62 NBR70

0770021120

$3.08

O-RING 24,00X2,00 NBR70

0770240020

$2.05

ADJUST. SPRING 2003

54837069000

$3.08

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

SPRING INSERT

54637071200

$9.06

angle lever

47237056000

$31.69

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

needle sleeve HK 1010 10x14x10

0618101410

$5.98

ADJUSTING LEVER 250/300

55437057100

$40.48

CONNECTING ROD CPL.

55437095044

$22.34

SECURING DIN-71805-S-8

50237195055

$2.05
