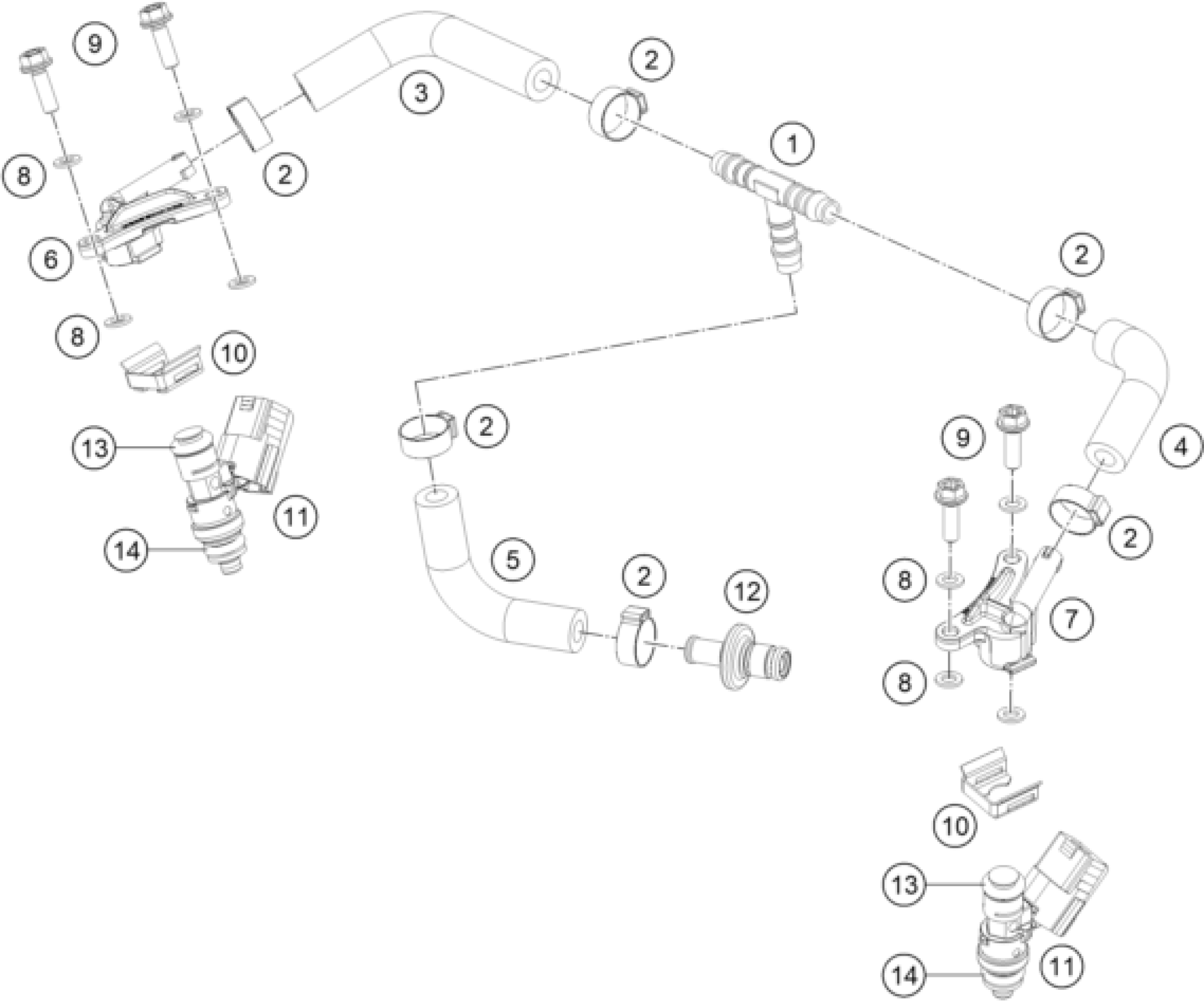

KTM 250 XC-W TPI 2018 FUEL DISTRIBUTOR Diagram

#

Description
Price

1

T-connector 7.5

55441007000

$1.49

2

Variable one-ear clamp 15.7mm

00050157706

$5.23

3

TPI hose right

55441019000

$12.80

4

TPI hose left

55441018000

$10.84

5

TPI supply hose

55441020000

$11.49

6

injector top right

55441113000

$14.72

7

Injector top left

55441013100

$14.72

9

Oval head screw M5x14 TX25

58605083014

$3.08

10

Injector clip

55441017000

$1.49

11

Injector cpl.

55441023044

$118.27

12

Fuel connection

77707010000

$15.14

8

Insulating disk 5x9x1

0773705916

$1.49

13

O-ring

55641023020

$10.56

14

O-ring

55641023010

$7.66
