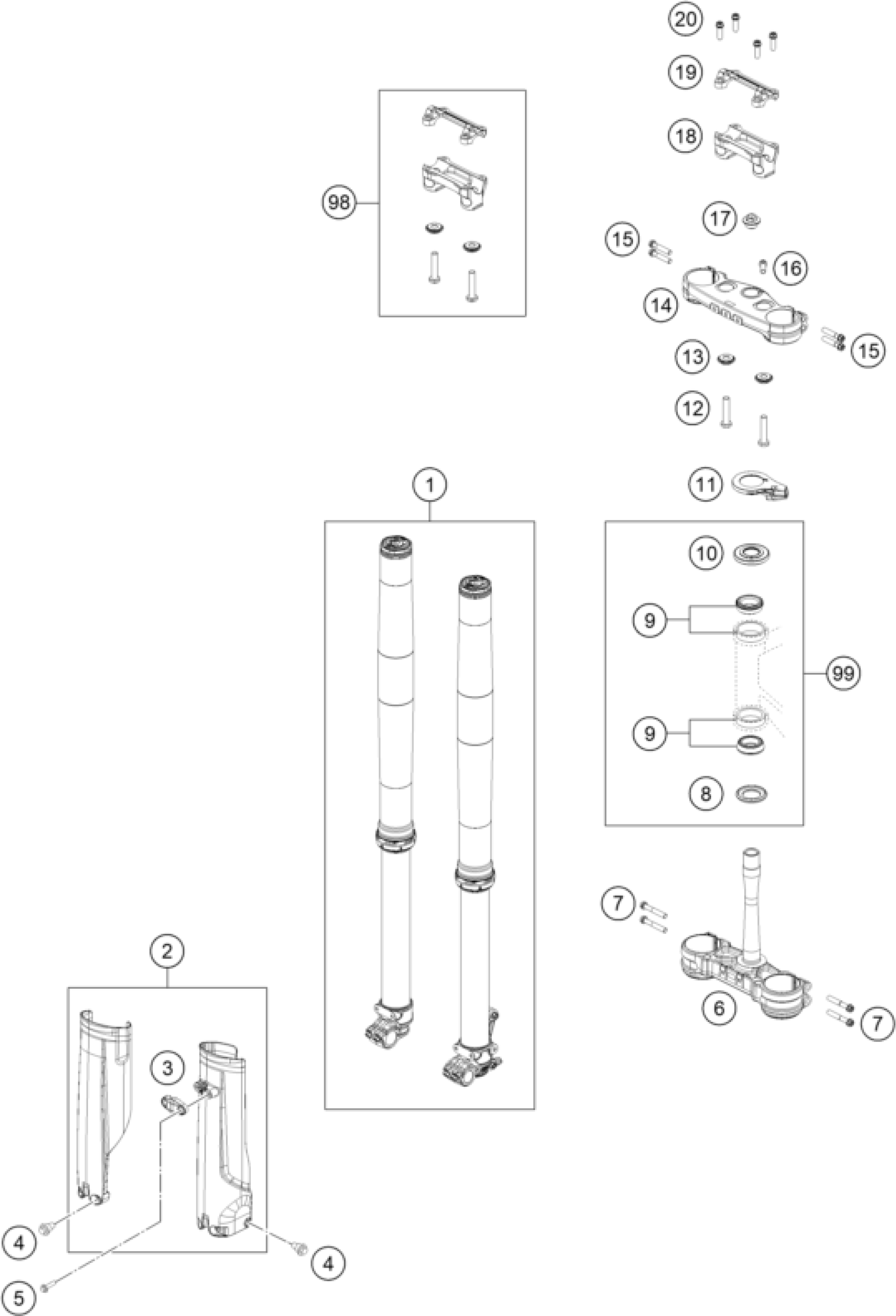

KTM 250 XC-W 2026 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Non orderable part

SPNO

Unavailable

2

fork protector kit Enduro 26

A46001094000EBN

Unavailable

3

Clamp for brake line

77701085100EB

$5.23

4

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

5

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

6

bottom triple clamp X=22mm

A49001032022

$220.46

7

HH collar screw M8x50 TX40

0025080506

$3.08

8

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

9

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

10

Steering head seal

A46001086000

$22.43

11

Steering lock

A49002065000

$41.97

12

AH collar screw M10x50 ISA45

0035100509S

$7.10

13

Rigid handlebar clamp bushing

A46001038010

$5.70

14

upper triple clamp

A49001034022

$159.04

15

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

16

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

17

Collar screw M20x1.5 SW17 Al

A46009082000

$3.08

18

Handlebar mount D28 mm-H41 mm

A48001139041

$98.17

19

HANDLEBAR CLAMP 28MM

79001038000

$69.37

20

HH collar screw M8x25

0025080256

$2.05

98

Handlebar mount kit d28mm-h41m

A49001039010

Unavailable

99

Repair Kit steering head beari

A46001081044

Unavailable
