Description

Price

1

Silencer EXC

A45005081000

$618.49

2

SCREW TORX M5X10

78105081010

$2.05

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

5

DAMP. COMPON. BLACK

77205068000

$6.54

6

end cap cpl.

A44005079060

$110.51

7

stuffingyarn package

55505083085

$78.44

8

Pair of washers M6 NORDLOCK

50233041000

$4.11

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

manifold

A44005007000

$562.02

11

exhaust rubber

50405057000

$9.62

12

O-RING 44,00X3,00 VITON

0770440030

$4.11

13

Tension spring L=62mm

A46005016000

$4.57

15

Damper gray

79105068000

$8.03

16

HH collar screw M8x30

0025080306

$3.08

18

Hose spring

50405058000

$4.11

19

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

20

BUSHING 8.5x12x28x8.3

77805069000

$5.98

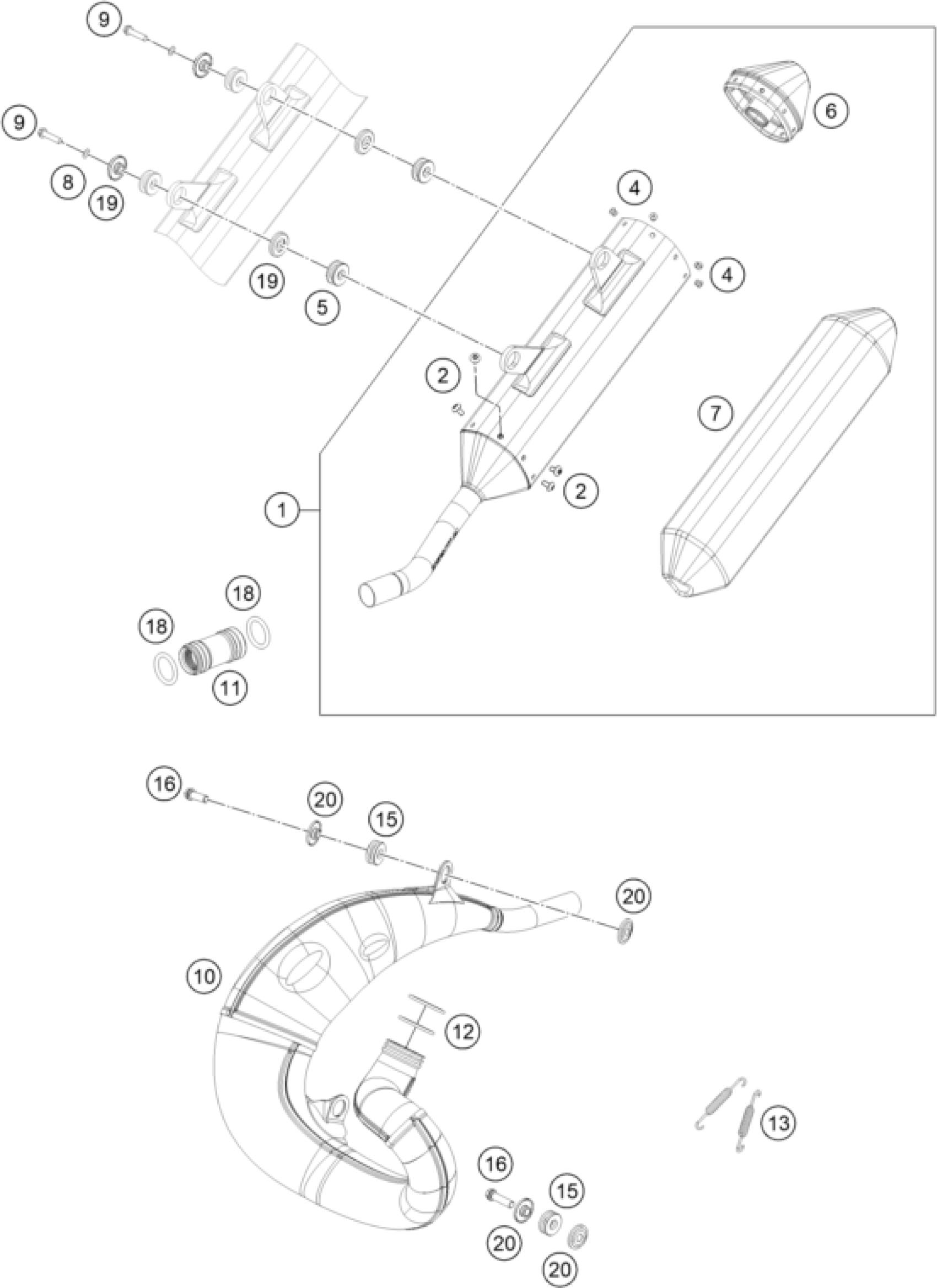

KTM 250 XC-W 2024 EXHAUST SYSTEM Diagram

Silencer EXC

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

DAMP. COMPON. BLACK

end cap cpl.

stuffingyarn package

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

manifold

exhaust rubber

O-RING 44,00X3,00 VITON

Tension spring L=62mm

Damper gray

HH collar screw M8x30

Hose spring

BUSHING 7.5x12x28x8.3 11

BUSHING 8.5x12x28x8.3
