CYLINDER, CYLINDER HEAD

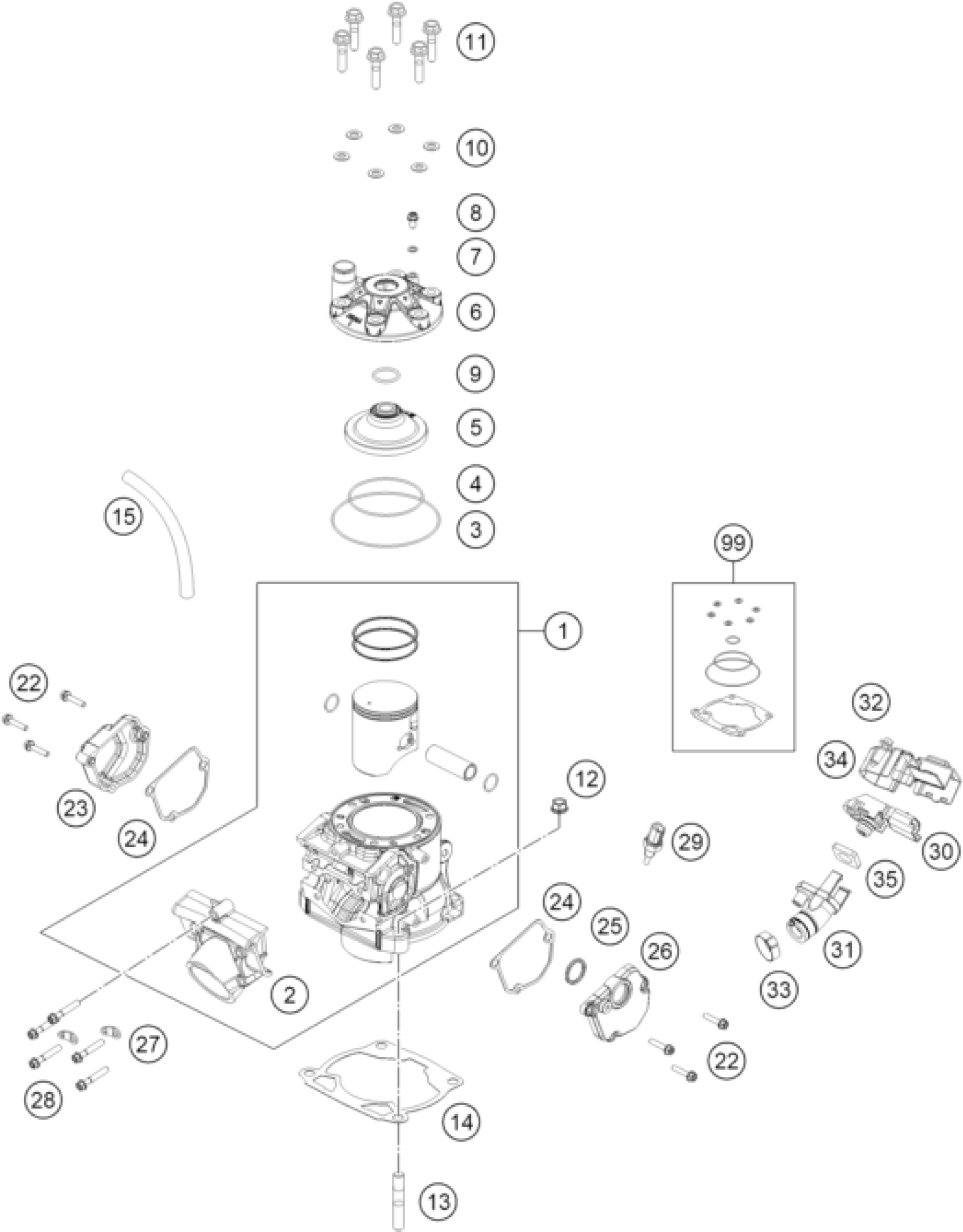

KTM 250 XC-W 2024 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
1
Cylinder + Piston
A44030138000
$971.92
2
Intermediate flange
A44037001000
$29.54
3
O-Ring 107x2
0770107020
$3.08
4
O-RING 73,00X2,00 VITON
0770730020
$5.23
5
Combustion chamber insert EXC
A44030160000
$58.62
6
Cylinder head
A45030006100
$30.85
7
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
8
HH collar screw M6x10 TX30
0025060106
$3.08
9
O-ring 23x2,5 Viton 75SH
0770023025
$1.49
10
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
11
COLLAR SCREW M 8X35 WS=13
54830079000
$4.11
12
Collar nut M10-SW13 ZnNi
55530044000
$1.49
13
Stud bolt M10x30
0835100300
$2.05
14
Cylinder base gasket
A44030035020
Unavailable
14
Cylinder base gasket
A44030035025
Unavailable
14
Cylinder base gasket
A44030035030
Unavailable
14
Cylinder base gasket
A44030035040
Unavailable
14
Cylinder base gasket
A44030035050
Unavailable
14
Cylinder base gasket
A44030035070
Unavailable
14
Cylinder base gasket
A44030035080
Unavailable
15
Engine vent hose
A44030087000
$9.81
22
HH COLLAR SCREW M5X25 ISA30
0025050256
$1.49
23
exhaust control cover right
A44037007000
$12.80
24
Control cover seal, left
A44037006000
$5.23
25
X-ring 21.89x2.62 FKM 70
0770002226200
$2.05
26
exhaust control cover left
A44037005000
$19.44
27
RETAINING PLATE
51005074000
$3.08
28
HH collar screw M6x35 TX30
0025060356
$3.08
29
water temperature sensor
79435047000
$23.74
30
crank case pressure sensor
A45041075000
$50.01
31
Pressure sensor flange
A44041087000
$12.05
32
SCREW F. PLASTIC K60X20AL SW6
0017060206
$3.08
33
VARIABLE ONE-EAR CLAMP 21,0MM
00050210706
$2.05
34
Pressure sensor cover
A45041075060
$1.77
99
Sealkit cylinder MX 250/300
A44030097000
Unavailable
35
Pressure sensor EPDM plate
A45041075050
$5.79
