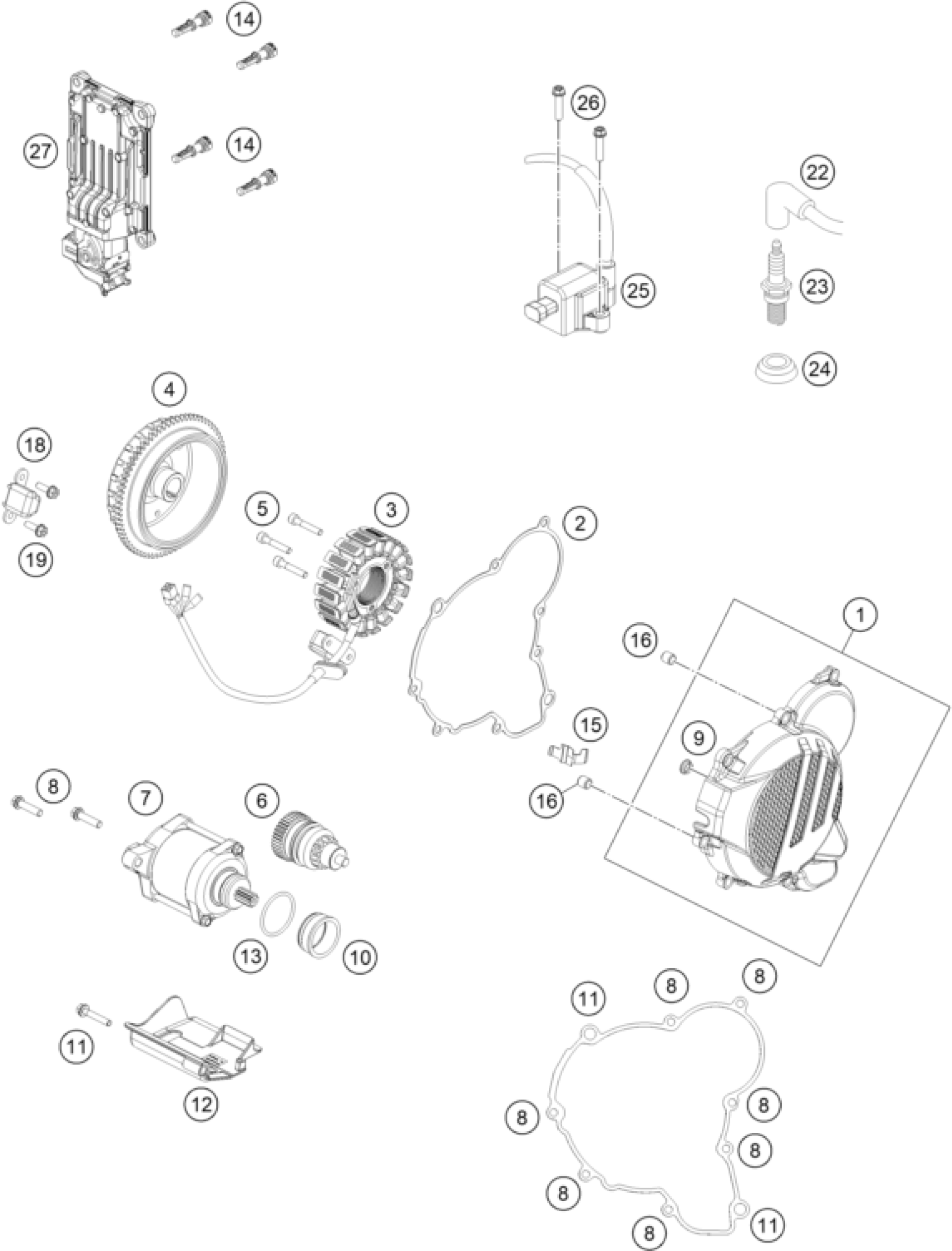

KTM 250 XC-W 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

Ignition cover cpl.

5543010214415

$107.24

2

IGNITION COVER GASKET

55430040000

$14.58

3

Stator

55439104100

$179.42

4

flywhell

55439105000

$376.52

5

AH SCREW DIN0912-M 5X30

0912050303

$1.49

6

BENDIX

55440126000

$124.07

7

STARTER ENGINE

55440001000

$238.23

8

HH collar screw M6x25 TX30

0025060256

$3.08

9

Collar bushing

55540031000

$2.05

10

BEARING BUSH

55440012000

$12.33

11

HH collar screw M6x30 TX30

0025060306

$3.08

12

PROTECTION CAP STARTER ENGINE

55440040044

$16.73

13

O-RING 34,59X2,62

0770021260

$2.05

14

Holder control unit

55641030000

$3.08

15

Holding plate generator cable

55439140220

$15.98

16

DOWEL 9,8 X7X10

49030090100

$2.05

18

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

19

HH collar screw M5x16 TX30

0025050166

$2.05

22

Ignition wire

55639007100

$64.79

23

Spark plug

55439193000

$22.71

23

SPARK PLUG

54739093000

Unavailable

24

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

25

Iginition coil

55639006000

$52.16

26

HH collar screw M6x25 TX30

0025060256

$3.08

27

Control device EFI

55641031000

$470.58
