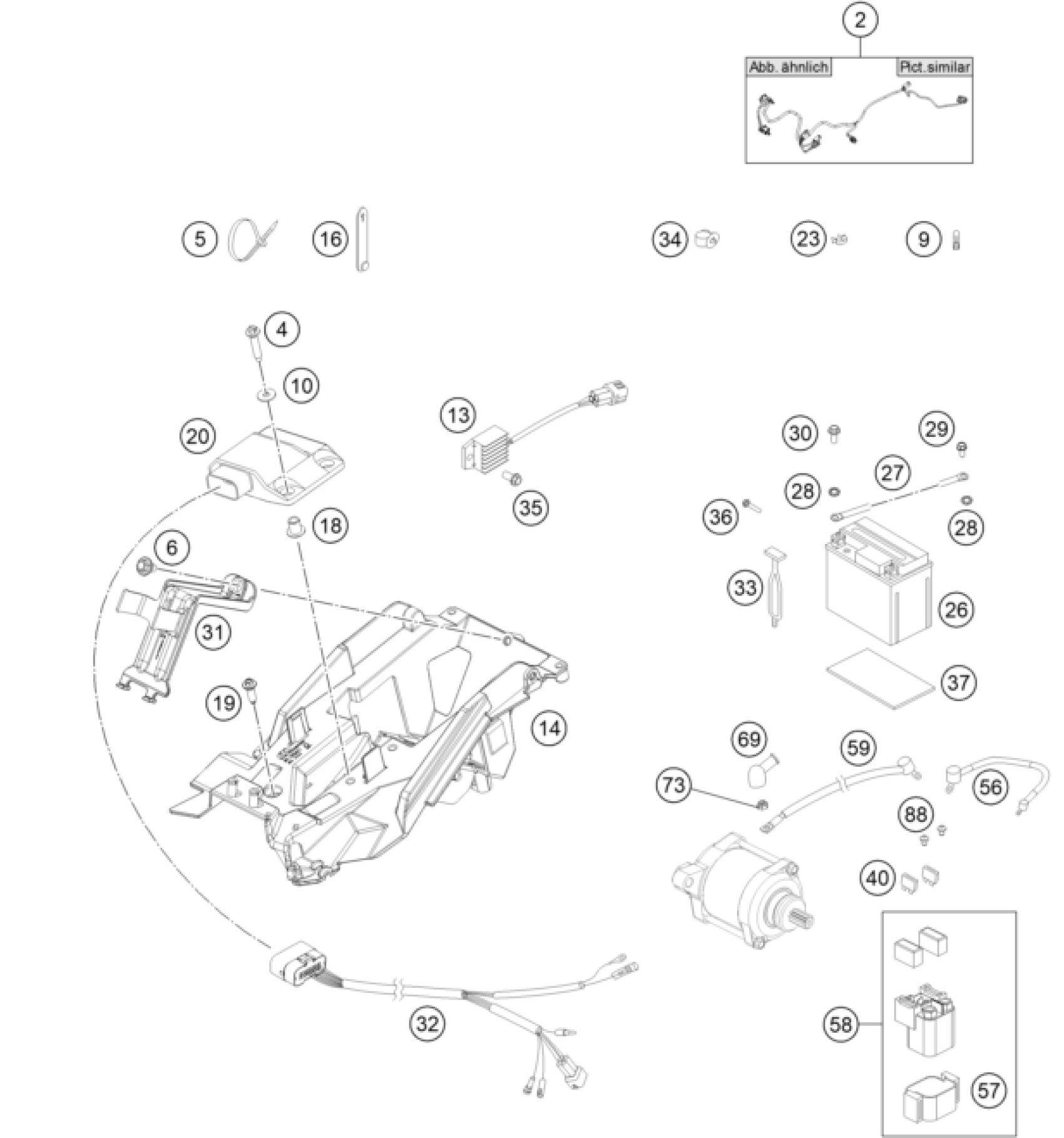

KTM 250 XC-W 2018 WIRING HARNESS Diagram

#

Description
Price

2

WIRING HARNESS 200/300 XC-W 14

54811075800

$131.55

4

Special screw K60X30 WS=6

0017060305

$2.05

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

9

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

10

washer DIN 9021 A - 5.3

0021050003

$1.49

13

VOLTAGE REGULATOR 04

80011034000

$99.57

14

BATTERY BOX

79011055100

$37.86

16

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

18

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

20

Dash board box 250 18

55439131100

$267.50

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

$1.49

26

LITHIUM ION BATTERY 5S

77311953000

$166.05

27

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

29

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

30

HH collar screw M5x12 TX30

0025050126

$3.08

31

BATTERY BOX SUPPORT

79011056100

$3.08

32

HARNESS CDI BOX 2T 2017

55439032000

$56.93

33

RUBBER L=145MM

50303018000

$6.44

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

35

COLLAR SCREW M6X12 TX

0023060123

$2.05

36

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

37

METAMOLL 90X45X3MM 03

59003001099

$2.05

40

Plug-in fuse, big 10A

58011109110

$2.05

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 1100MM 07

55111059000

$26.08

69

Protection cap for starter eng

77240099000

$6.35

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23
