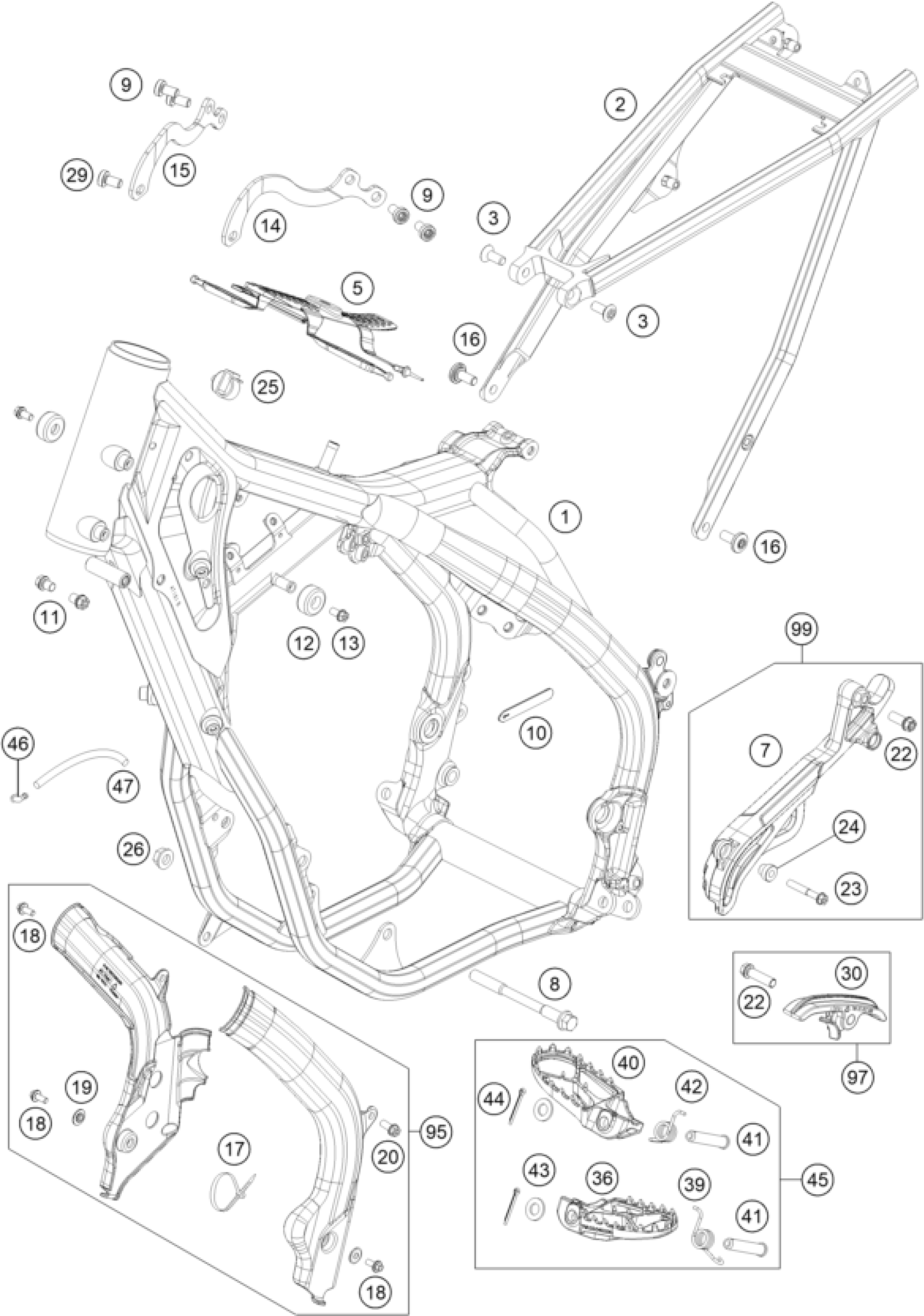

KTM 250 XC-W 2017 FRAME Diagram
#
Description
Price
1
FRAME ''554Q2'' BLACK
5540310100033
$1,555.79
29
SHCS M8x20 TX45
0035080206S
$5.32
3
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
2
SUBFRAME 2016
79003002000
$267.78
22
HH collar screw M8x30
0025080306
$3.08
23
HH collar screw M6x30 TX30
0025060306
$3.08
24
WASHER DIN0125-A 6,4
0125060003
$1.49
36
FOOTREST L/S EXC 2017
79603040000
$44.78
25
CABLE SUPPORT KHS NR.150-47610
58111076000
$4.11
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
30
Chain slider, lower part, cmpl
79003053000
$10.56
39
FOOTREST SPRING L/S 2016
79003045000
$2.05
40
FOOTREST R/S EXC 2017
79603041000
$44.78
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING R/S 2016
79003044000
$2.05
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTREST-SET
79603040033
$113.03
46
ANGLE PIECE '97
50303089000
$5.23
47
preformed hose 6x10 ECO
50430087000
Unavailable
97
CHAIN SLIDING KIT BELOW CPL.16
79003053010
$17.85
95
FRAME PROTECTION SET BLACK
7900309400033
$35.24
99
SPROCKET COVER KIT
55403096010
$24.58
5
TANK REST RUBBER
79607012000
$10.09
7
FRONT CHAIN GUARD 250/300
55403096000
$21.12
8
engine brac.scr. M10x115
77203014000
$8.97
9
AH-COLLAR SCREW M8X15 TORX45
0035080156S
$2.05
10
RUBBER CABLE TIE 75MM 03
60011093075
$5.23
11
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
14
ENGINE BRACE LEFT
55403113000
$24.21
12
TANK ROLLER 12X26X12 '98
50307014000
$11.02
13
COLLAR SCREW M6X13 ISA30
0026060136
$3.08
15
ENGINE BRACE RIGHT
55403114000
$22.06
16
Special screw M8X18 TORX45 SL
79003003000
$3.08
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
17
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
18
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
19
Bush f. frame protection 03
54803092060
$4.11
20
HH collar screw M6x12 TX30
0025060126
$3.08
