Description

Price

1

RADIATOR HOSE WITH THERMO.

55635026033

$143.23

2

RADIATOR LEFT 17

50435007100

$200.74

3

RADIATOR RIGHT 17

50435008100

$244.59

4

RADIATOR CAP 1,8 BAR

79035016000

$28.51

5

COLLAR SCREW M6X12 TX

0024060123

$1.49

6

Y-PIECE CPL.

79035071044

$53.57

7

COOLING WATER PIPE

50435073000

$19.44

8

HOSE CLAMP GEMI 18-29

10001020000

$2.05

9

PRE-FORMENDHOSEENGINE/RADIAT

55635027000

$41.60

10

RADIATOR PROTECT 2016

7903503400030

$18.13

11

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

12

O-RING 32,00X2,00

0770320020

$2.05

13

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

15

ANGLE PIECE '97

50303089000

$5.23

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

14

PVC-HOSE 6X9

50335030001

$6.72

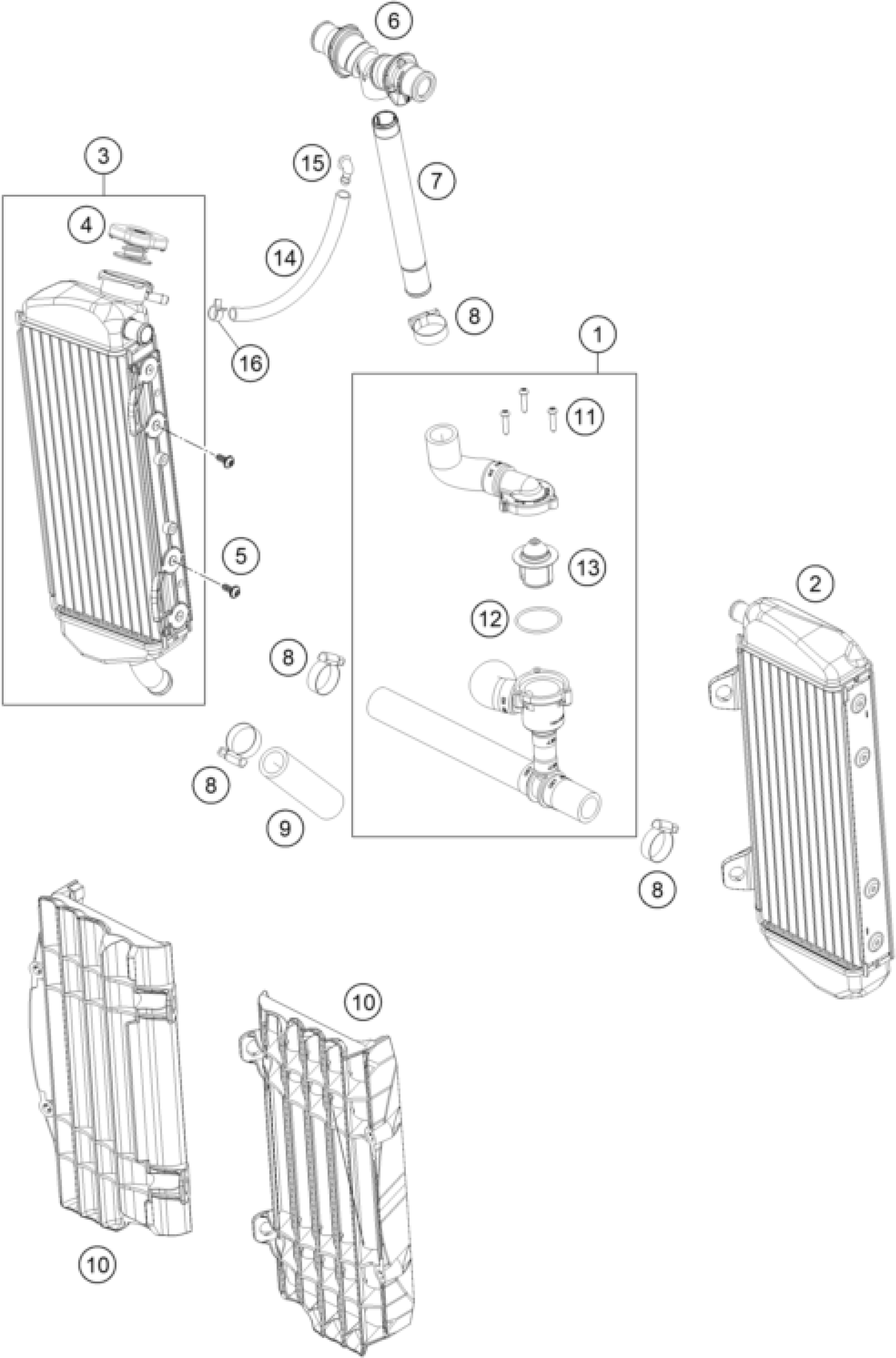

KTM 250 XC-W 2017 COOLING SYSTEM Diagram

RADIATOR HOSE WITH THERMO.

RADIATOR LEFT 17

RADIATOR RIGHT 17

RADIATOR CAP 1,8 BAR

COLLAR SCREW M6X12 TX

Y-PIECE CPL.

COOLING WATER PIPE

HOSE CLAMP GEMI 18-29

PRE-FORMENDHOSEENGINE/RADIAT

RADIATOR PROTECT 2016

SCREW FOR PLASTIC D=4X18

O-RING 32,00X2,00

THERMOSTAT 70 DEGREE 04

ANGLE PIECE '97

CLAMP YDNAC 10096F (9,6MM)

PVC-HOSE 6X9
