FRONT FORK, TRIPLE CLAMP

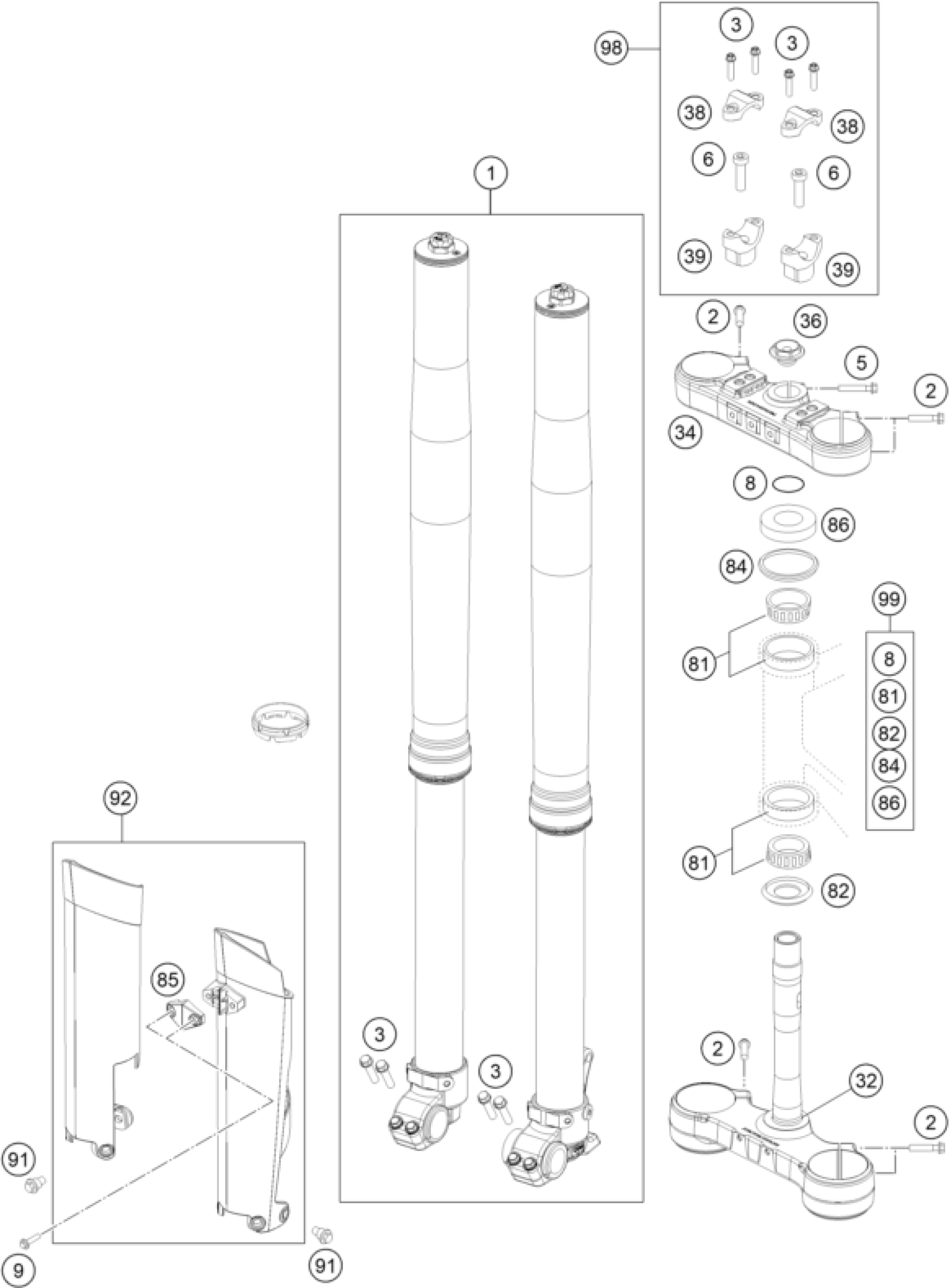

KTM 250 XC-W 2016 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROTECTION SET EXC 16
7770109400028C
$43.28
82
O-RING SUPPORT W. SEALING LIP
77701084000
$19.35
34
TOP TRIPLE CLAMP X=22MM
78101034022
$148.19
38
HANDLEBAR CLAMP 28MM
77201038000
$25.05
39
Handlebar mount D28mm-H32mm
59401039032
Unavailable
32
BOTTOM TRIPLE CLAMP CPL.
78101132122
$206.07
36
AXLESCREW M20X1.5 SW17
70009082000
$9.44
39
Handlebar mount D28mm-H37mm
59401039037
$34.12
39
Handlebar mount D28mm-H42mm
59401039042
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
84
STEARING HEAD GASKET TOP
54601184000
$7.10
1
FORK 250/300 EXC, XCW 16
14187P6301
$2,406.46
2
HH collar screw M8x30
0025080306
$3.08
3
HH collar screw M8x25
0025080256
$2.05
5
HH collar screw M8x35 TX40
0025080356
$4.11
6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
$4.11
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
SCREW F. PLASTIC K60X20AL SW6
0017060206
$3.08
85
CLAMP BRAKE HOSE
7770108500028
$5.23
86
STEERING HEAD COVER
78101086000
$6.07
98
HANDLEBAR SUPPORT KIT D28/H37
00050000921
Unavailable
