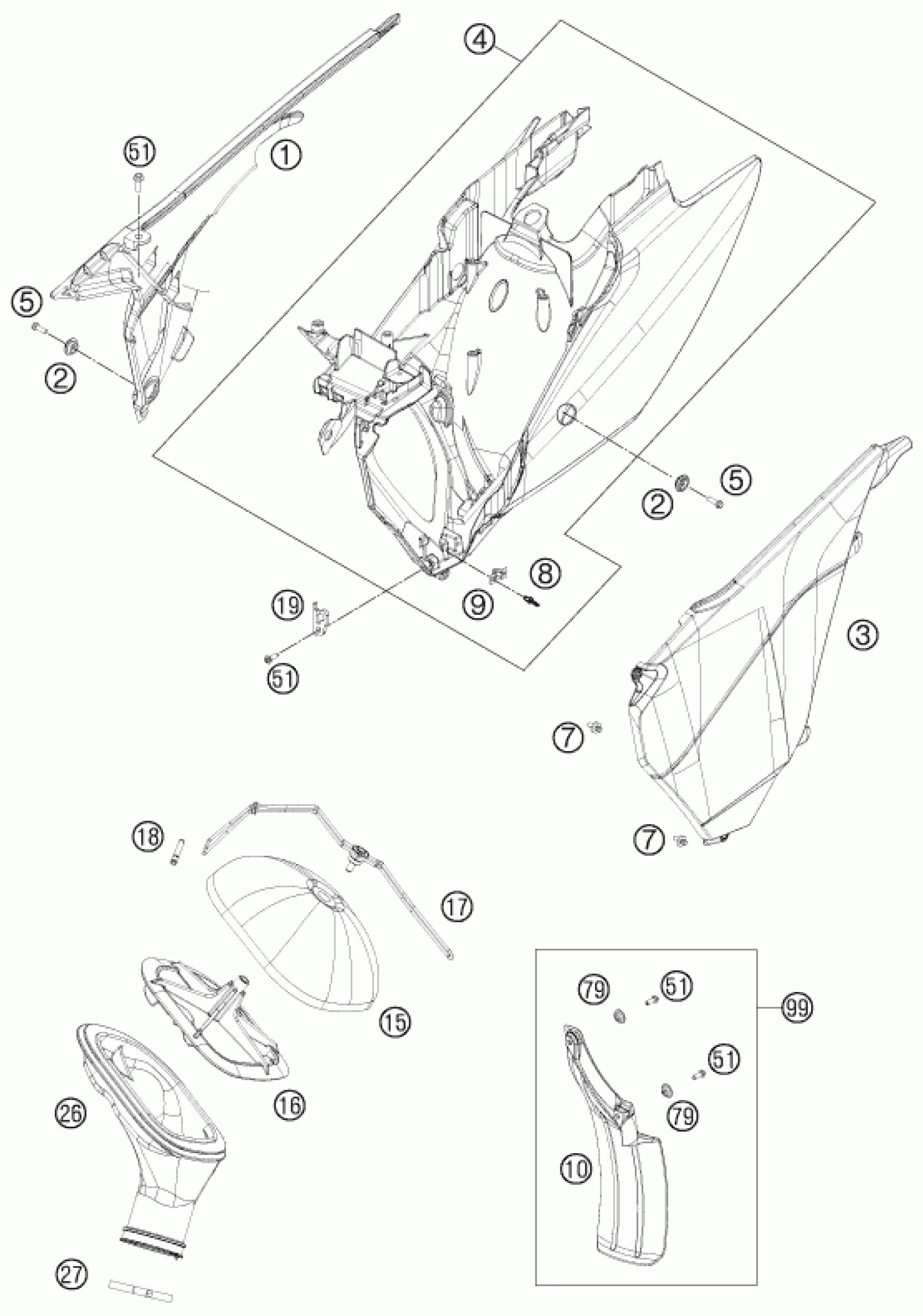

KTM 250 XC-W 2013 AIR FILTER Diagram

SPLASH PROTECTOR KIT SX/EXC

77306010010

Unavailable

AIRFIL.BOX COV. R/S PDS EXC 13

7720600410004C

$25.80

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

AIRFILTERBOX COVER L/S EXC 13

7720600300004G

$38.98

FILTER BOX CPL. WHITE 13

7770600104428

$41.22

HH collar screw M6x20 TX30

0025060206

$3.08

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

FENDER FOR FILTER BOX

77306010000

$20.84

AIR FILTER

77206015000

$32.12

FILTER CARRIER

54806516000

$9.15

FILTER SUPPORT CPL. 11

77206017000

$19.53

FILTER SUPPORT BUSH 07

77306018000

$3.08

FASTEN. DEVICE FILTER S. SX 11

77206019000

$8.41

CABURETOR CONNECTING

54806526000

$51.70

HOSE CLAMP 50-70MM

51006027000

$6.07

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

chain slider bushing

77304066050

$1.49
