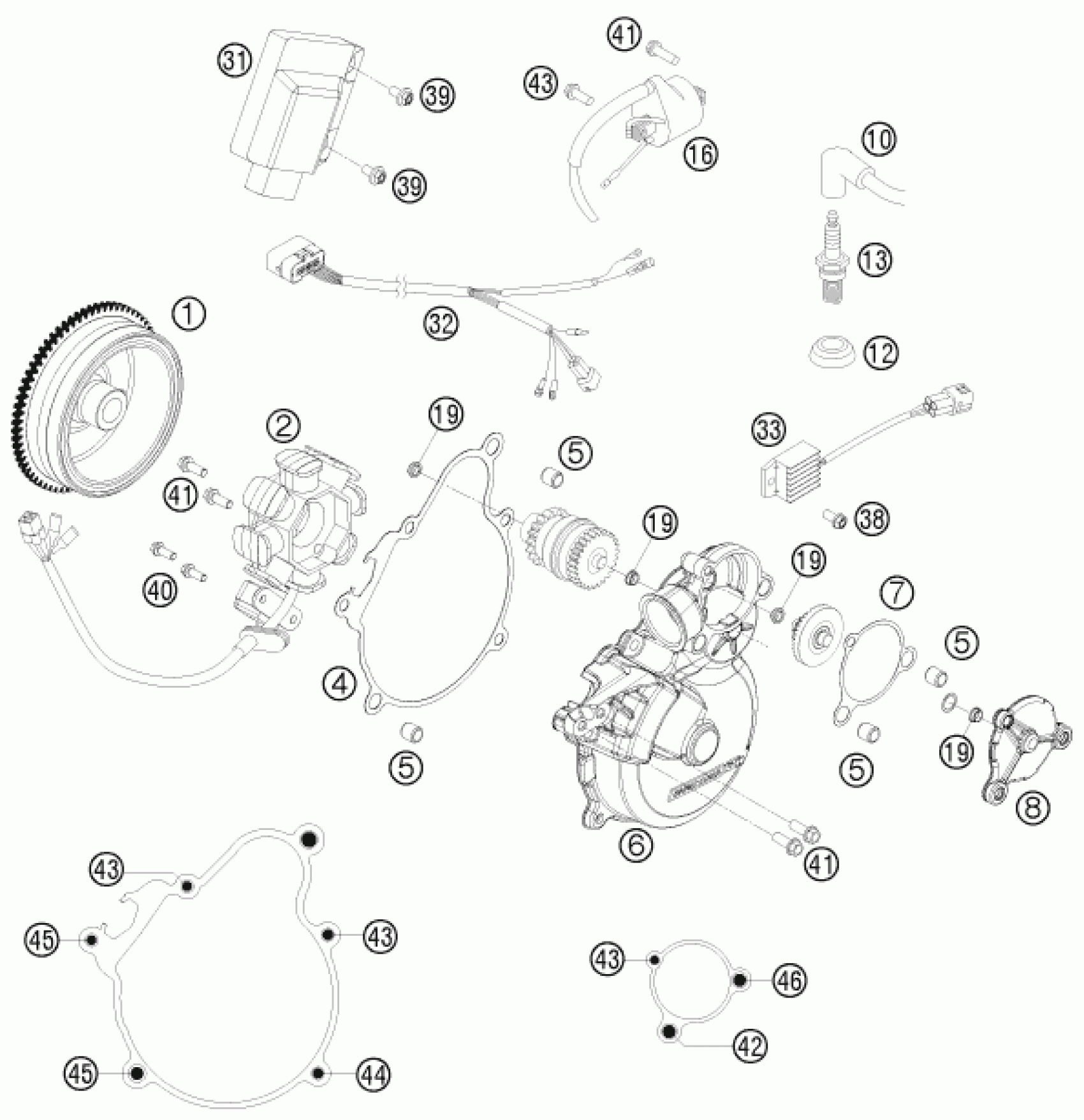

KTM 250 XC-W 2012 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN

55139005000

$410.36

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

2

STATOR KOKUSAN

55139004000

$171.28

4

IGNITI.COVER GASKET 07

55130040000

$14.76

5

DOWEL 9,8 X 7 X 10

49030090000

$2.05

6

IGNITION COVER CPL.

5513000224433

$130.24

7

IGN. OUT SIDE COV. GASKET 07

55130041100

$7.75

8

OUTER IGNITION COVER CPL.

5513004524433

$30.38

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

12

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

13

SPARK PLUG

54739093000

$5.41

19

COLLAR BUSHING

55140030100

$3.08

31

CDI UNIT 250 EXC 11

54839131300

$316.30

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

33

VOLTAGE REGULATOR 04

80011034000

$99.57

38

HH collar screw M6x12 TX30

0025060126

$3.08

39

COLLAR SCREW M6X12 TX

0023060123

$2.05

40

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

41

HH collar screw M6x20 TX30

0025060206

$3.08

42

HH collar screw M6x25 TX30

0025060256

$3.08

43

HH collar screw M6x16 TX30

0025060166

$3.08

44

HH collar screw M6x30 TX30

0025060306

$3.08

45

HH collar screw M6x35 TX30

0025060356

$3.08

46

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08
