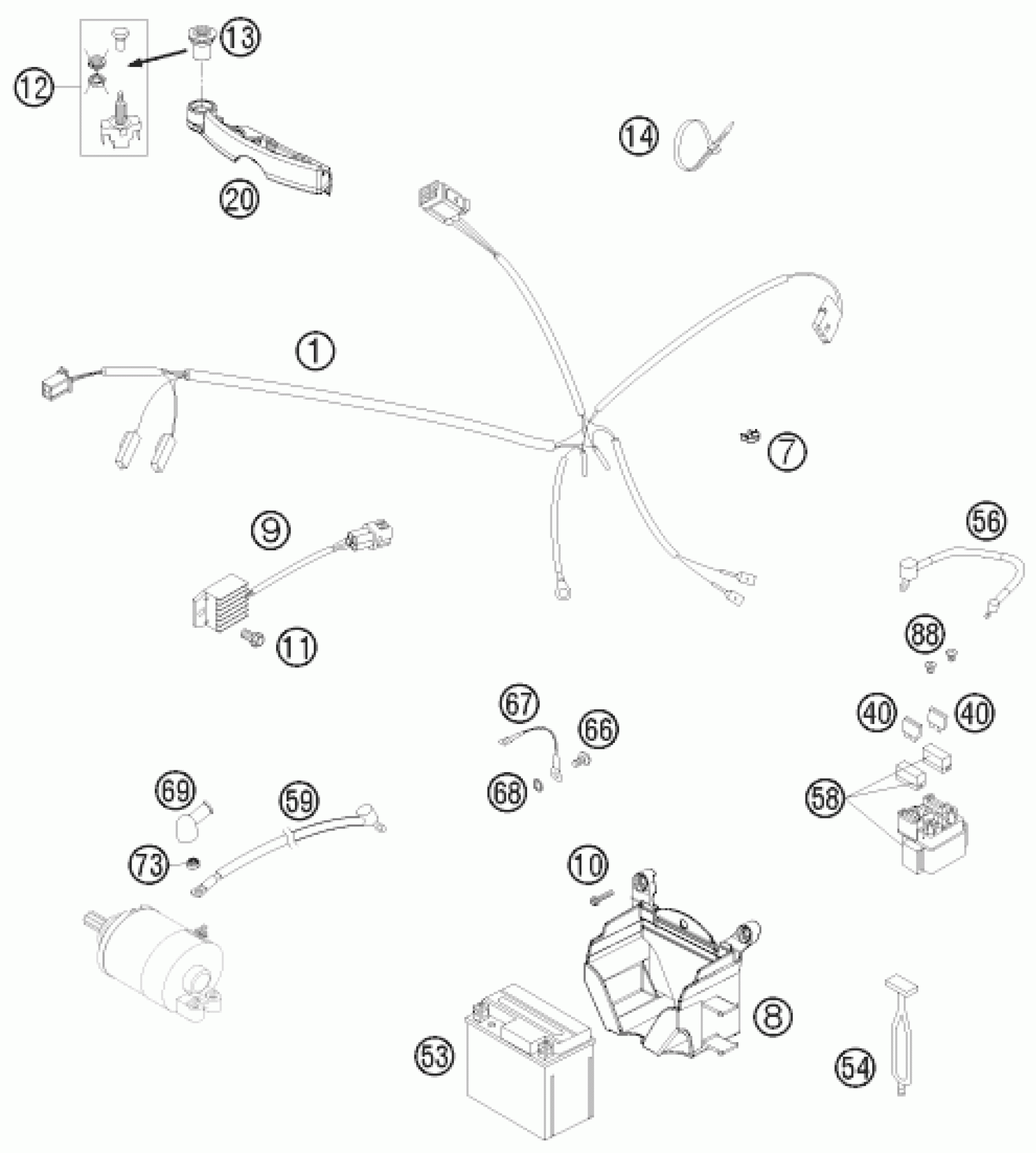

KTM 250 XC-W 2008 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS RACING USA 05

59411075100

$71.05

7

WIRING HOLDER 16MM

57013072100

Unavailable

8

BATTERY CASING

77311055000

$8.03

9

VOLTAGE REGULATOR 04

80011034000

$99.57

10

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

11

HH collar screw M6x10 TX30

0025060106

$3.08

12

PULL SWITCH LOOSE

55011599000

$23.09

13

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

20

SPEEDOMETER BRACKET XC-W 08

54814060100

$5.23

40

Plug-in fuse, big 10A

58011109110

$2.05

53

BATTERY 12V 3AH YTX4L-BS

77311053000

$166.05

54

RUBBER L=145MM

50303018000

$6.44

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 1100MM 07

55111059000

$26.08

66

HH collar screw M6x10 TX30

0025060106

$3.08

67

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

68

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
