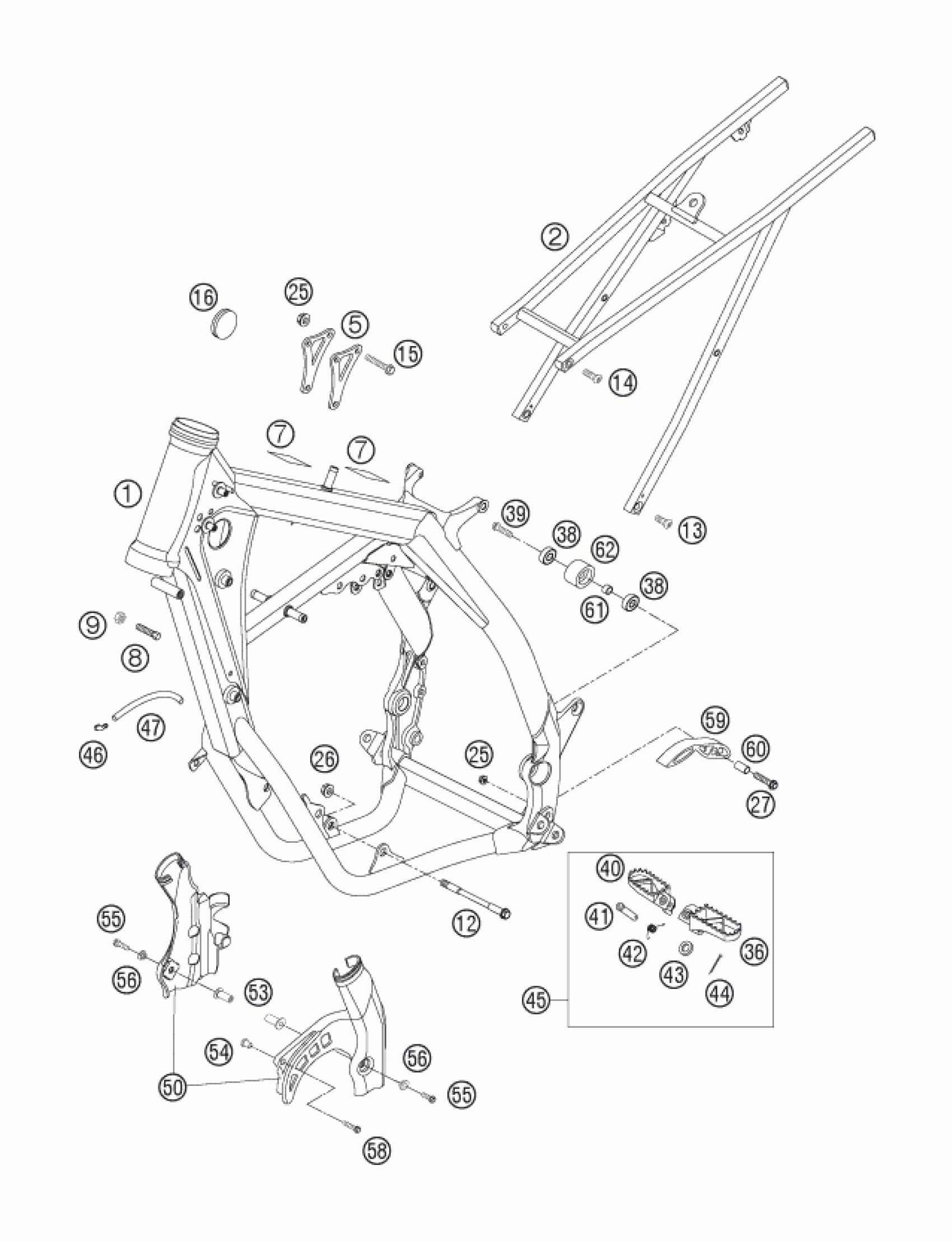

KTM 250 XC-W 2007 FRAME Diagram
#
Description
Price
1
FRAME 250/300 ''CB06'' USA
5480300170030
$655.18
5
REINFORCING BRACKET 250 EXC 07
54803013100
$12.61
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
$2.05
8
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
2
SUB FRAME CPL. 2-T. EXC 05
54803002344
$327.66
9
Hexagon nut DIN934 M8
0934080003
$2.05
12
engine brac.scr. M10x105 WS13
54603013000
$12.15
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
$2.05
14
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
15
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
16
PLUG 37MM
54606004000
$2.05
25
Self locking nut M8 10.9
54310086200
$3.08
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
27
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
36
FOOT PEG L/S SILVER 02
59003040250
$43.66
38
Grooved ball bearing 608 2RS C
0625006087
$21.40
39
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
40
FOOT PEG R/S SILVER 02
59003041250
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTPEG L.+R. CPL. 03
5030314013390
$167.45
46
ANGLE PIECE '97
50303089000
$5.23
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
FRAME PROTECTION SET 05
54803094100
$20.94
53
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
$5.23
54
BUSHING F. SPROCKET COVER RAC.
59030060050
$10.46
55
HH COLLAR SCREW M 5X25 WS=6
0014050253
$3.08
56
Bush f. frame protection 03
54803092060
$4.11
58
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
59
CHAIN SLIDING PIECE BELOW '97
51103053000
$9.15
60
BUSHING 8,2X10X20
51103053051
$4.11
61
BUSHING 8.2 X 12 X 6
74003021000
$3.08
62
CHAIN ROLL D=30MM
50203053000
$6.72
