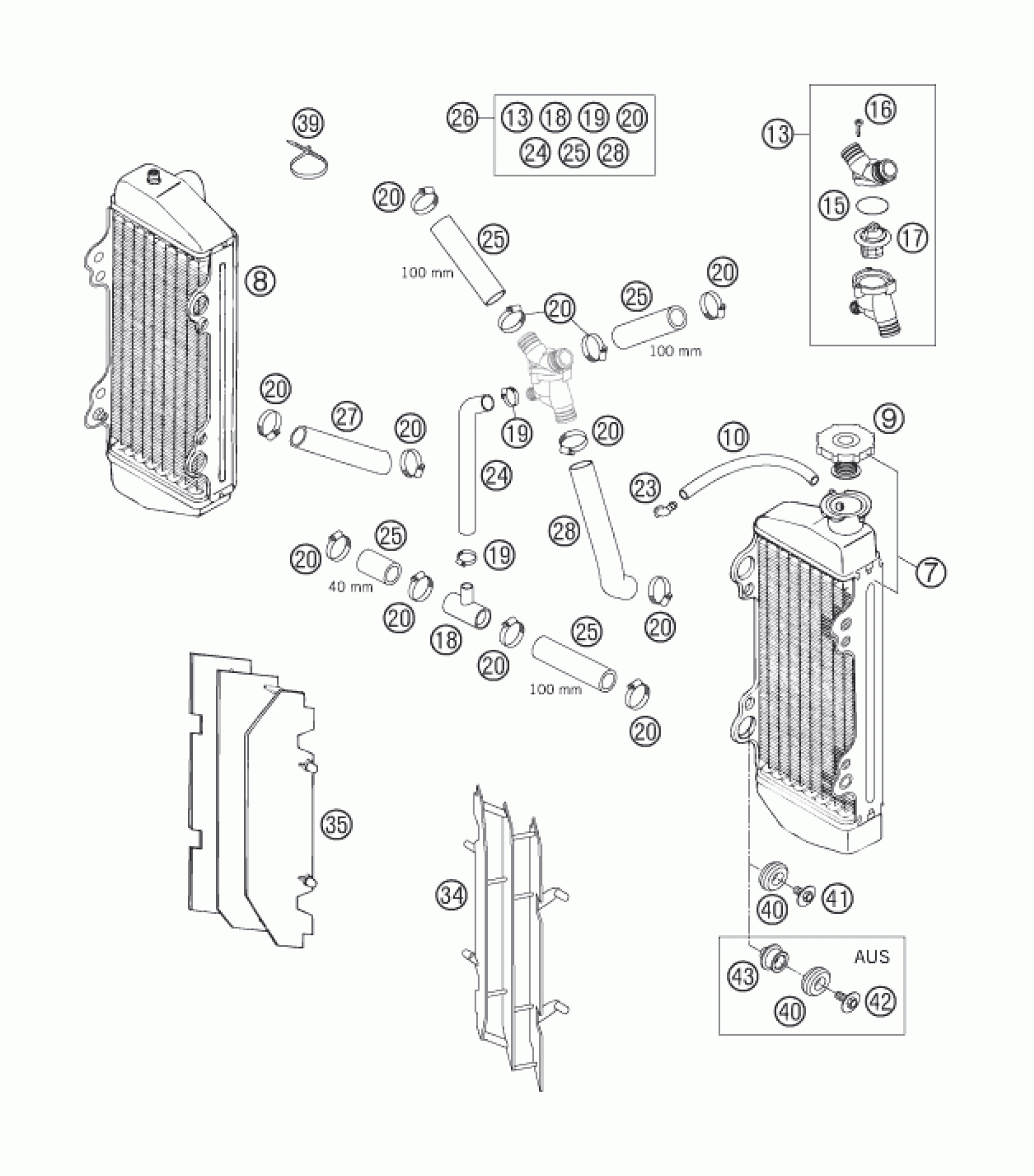

KTM 250 XC-W 2007 COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

8

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

10

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

13

THERMOSTAT 55°C CPL. 2004

54835013044

$35.02

15

O-RING 32,00X2,00

0770320020

$2.05

16

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

17

THERMOSTAT 55°C 2004

54835017000

$42.25

18

T-CONNECTOR 23/23/12,5

54835018000

$10.28

19

HOSE CLAMP GEMI 10-16

58335099000

$4.11

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

RADIATOR HOSE 10X17

54835024000

$21.32

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

RADIATOR HOSE W. THERMOSTAT 04

54835026033

$53.87

27

RADIATOR HOSE 18X25X130 MM 03

54835027000

$41.60

28

RADIATOR HOSE 18X25

54835028000

$20.33

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

COLLAR SCREW M6X12 TX

0024060123

$1.49

35

RADIATOR PROTECTOR RIGHT 06

5463513420030

Unavailable

42

COLLAR SCREW M6X27 TX

0024060273

$3.08

43

SPACER BUSHING

77035002100

$3.93
