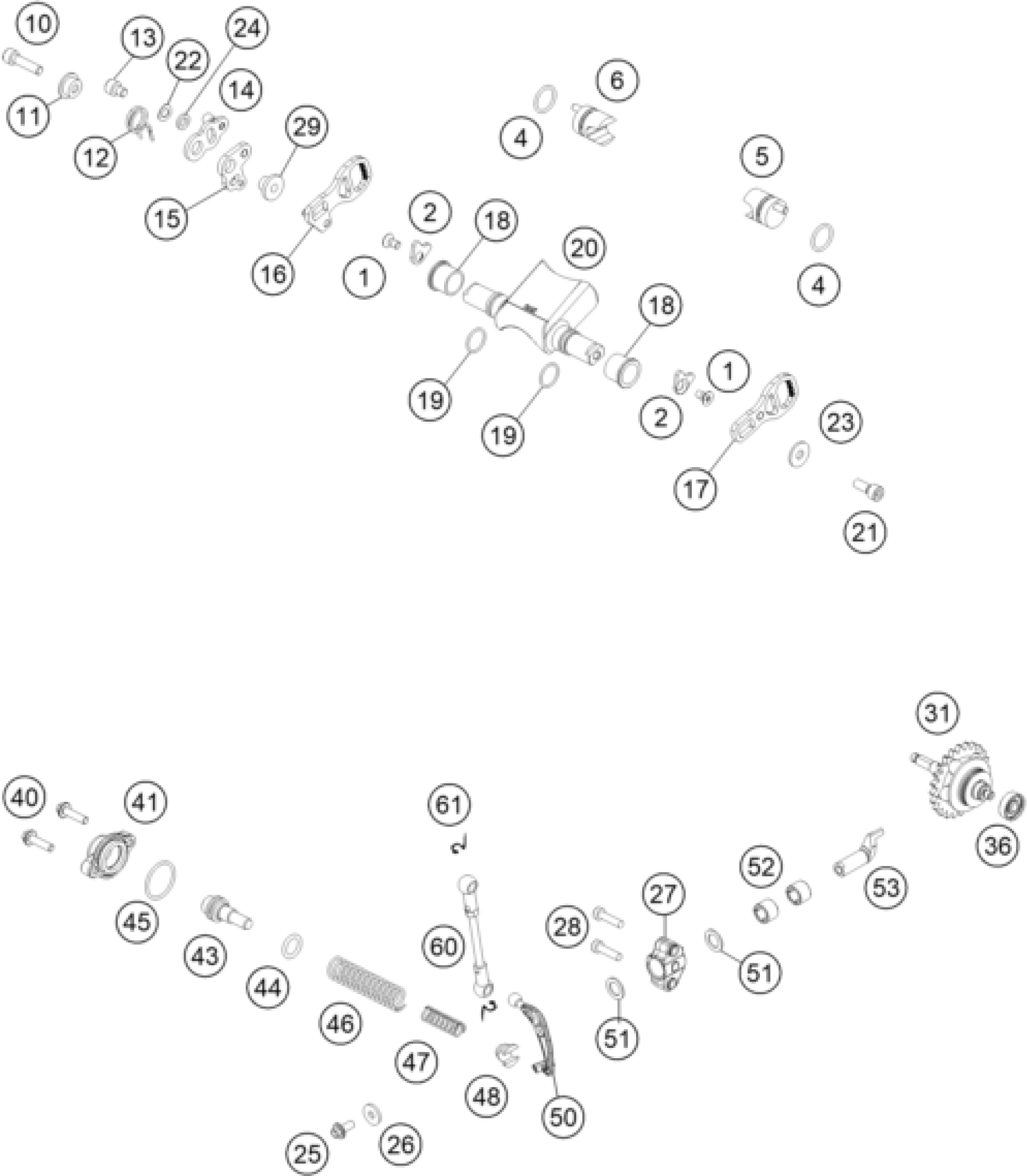

KTM 250 XC TPI 2021 EXHAUST CONTROL Diagram

hex lobe countersunc screw M5x

0019050106S

$2.05

securing plate

50437079100

$3.08

O-ring 16x2 Viton 75

0770160021

$3.08

CONTR.VALVE 250 LEFT KPL.

55437061044

$43.84

CONTR.VALVE 250 RIGHT KPL.

55437062044

$43.84

CYL. SCREW DIN14580 M 6X25

014580060256

$2.05

SPRING SLEEVE

54637067000

$4.11

Overload spring

55537066000

$1.49

Cap head screw M6x10

014580060106

$2.05

Adjusting lever cmpl.

55537065000

$13.74

Post mount cmpl.

55537080000

$21.03

Gear segment right cmpl.

55537064044

$12.71

GEAR SEGMENT L/S 250 07

54837064150

$29.72

exaust flap bushing

50437023100

$5.23

O-RING 15,00X1,50 VITON

0770150151

$3.08

Control hatch 250

55537020000

$85.08

Cap head bold ISO 14580 M6x16

014580060166

$2.05

spring washer DIN 137 B - 6

0137060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

WASHER 6,5X11X2

54637056100

$1.49

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

WASHER DIN7349-5X15X2

0349000050

$1.49

BEARING SUPPORT

55437058000

$15.51

HH collar screw M5x25 TX30

0025050256S

$1.49

Bearing sleeve

55537068000

$5.23

Centrifugal governor assy.

55537050244

$188.96

Grooved ball bearing 626LLBC3/

54637098100

$12.61

O-RING 24,00X2,00 NBR70

0770240020

$2.05

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

Closing cover 250-360

54637070300

$18.69

SPRING GUIDE 250/300

54837075000

$14.95

O-RING 12,37X2,62 NBR70

0770021120

$3.08

ADJUST. SPRING 2003

54837069000

$3.08

AUXILIARY SPRING MID. YELLOW

54637072300

$3.08

SPRING INSERT

54637071200

$9.06

Power valve control lever

47237056100

$31.69

SHIM WASHER DIN988 10X16X1

0988101610

$2.05

needle sleeve HK 1010 10x14x10

0618101410

$5.98

Control lever 250/300

55437057200

$39.07

Linkage cmpl.

55537095044

$13.74

SECURING DIN-71805-S-8

50237195055

$2.05

AUXILIARY SPRING SOFT, RED

54837072000

Unavailable

AUXILIARY SPRING HARD GREEN

54837072100

Unavailable
