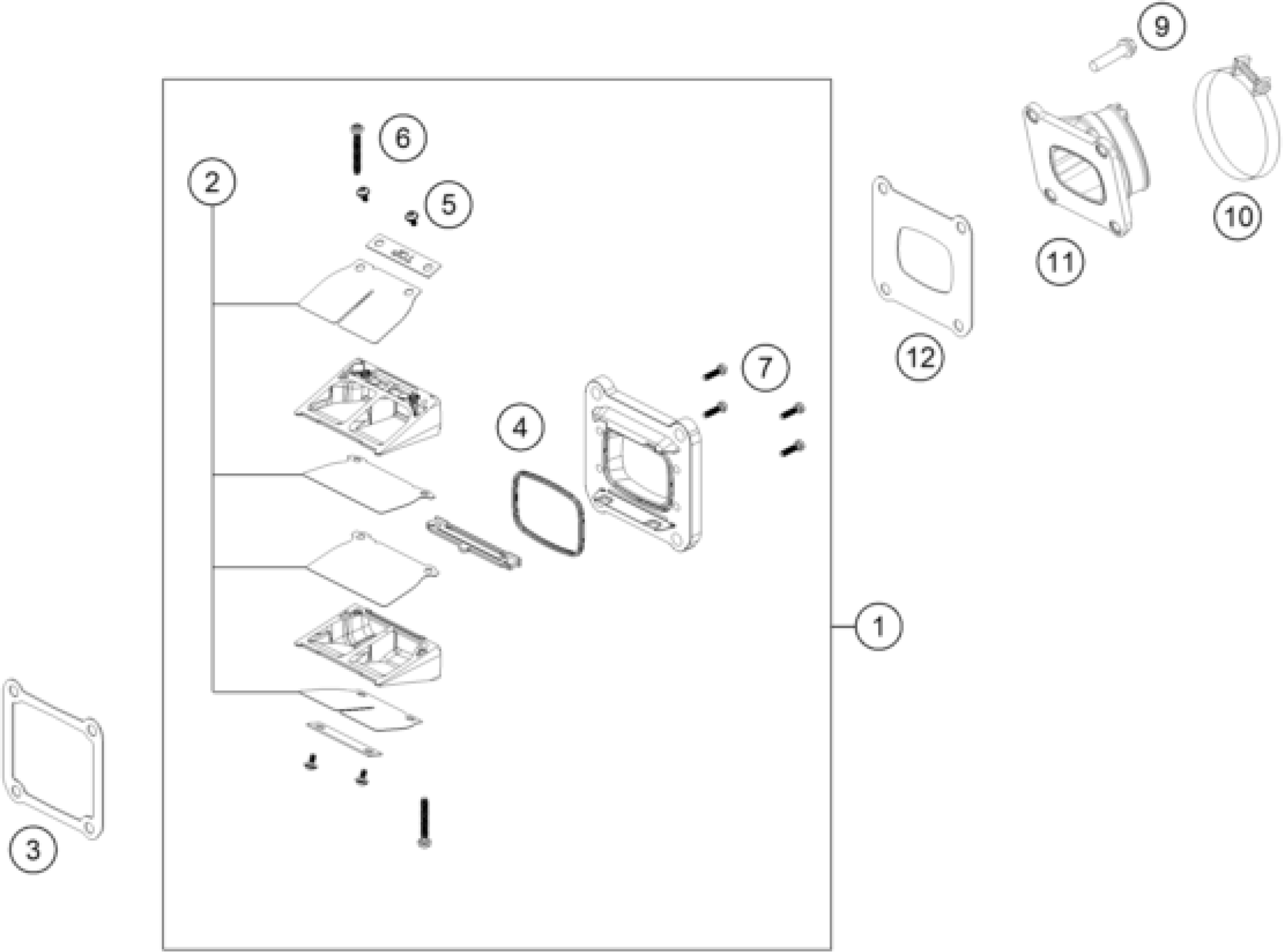

KTM 250 XC TPI 2020 REED VALVE CASE Diagram

#

Description

Price

1

Reed Valve Case cpl.

50530051044

$180.45

2

Reed Valve Set

50530152044

$114.66

3

GASKET REED VALVE CASE

50430098050

$7.66

4

GASKET SUPPORTING PLATE

54830153050

$9.44

5

EJOT DELTA PT SCREW 30X5,5

00810300553

$1.49

6

EJOT DELTA PT SCREW 35X25

0081035253

$1.49

7

EJOT DELTA PT SCREW 30X12

0081030124

$1.49

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

Hose clip GEMI 52mm

54330061000

$7.47

11

INTAKE FLANGE

50430050000

$54.32

12

GASKET INTAKE FLANGE

50430098060

$5.23
