Description

Price

1

Main silencer EXC

55505083000

$571.65

2

SCREW TORX M5X10

78105081010

$2.05

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

5

DAMP. COMPON. BLACK

77205068000

$6.54

6

end cap cpl.

55505083060

$97.79

7

stuffingyarn package

55505083085

$78.44

8

Pair of washers M6 NORDLOCK

50233041000

$4.11

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

Header

55705007000

$609.80

11

exhaust rubber

55405057000

$16.07

12

O-RING 44,00X3,00 VITON

0770440030

$4.11

13

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

15

Damper gray

79105068000

$8.03

16

HH collar screw M8x30

0025080306

$3.08

17

RANGE CHANGE METAL NUT M8

54603048000

$4.11

18

hose spring

55405058000

$3.08

19

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

20

BUSHING 8.5x12x28x8.3

77805069000

$5.98

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

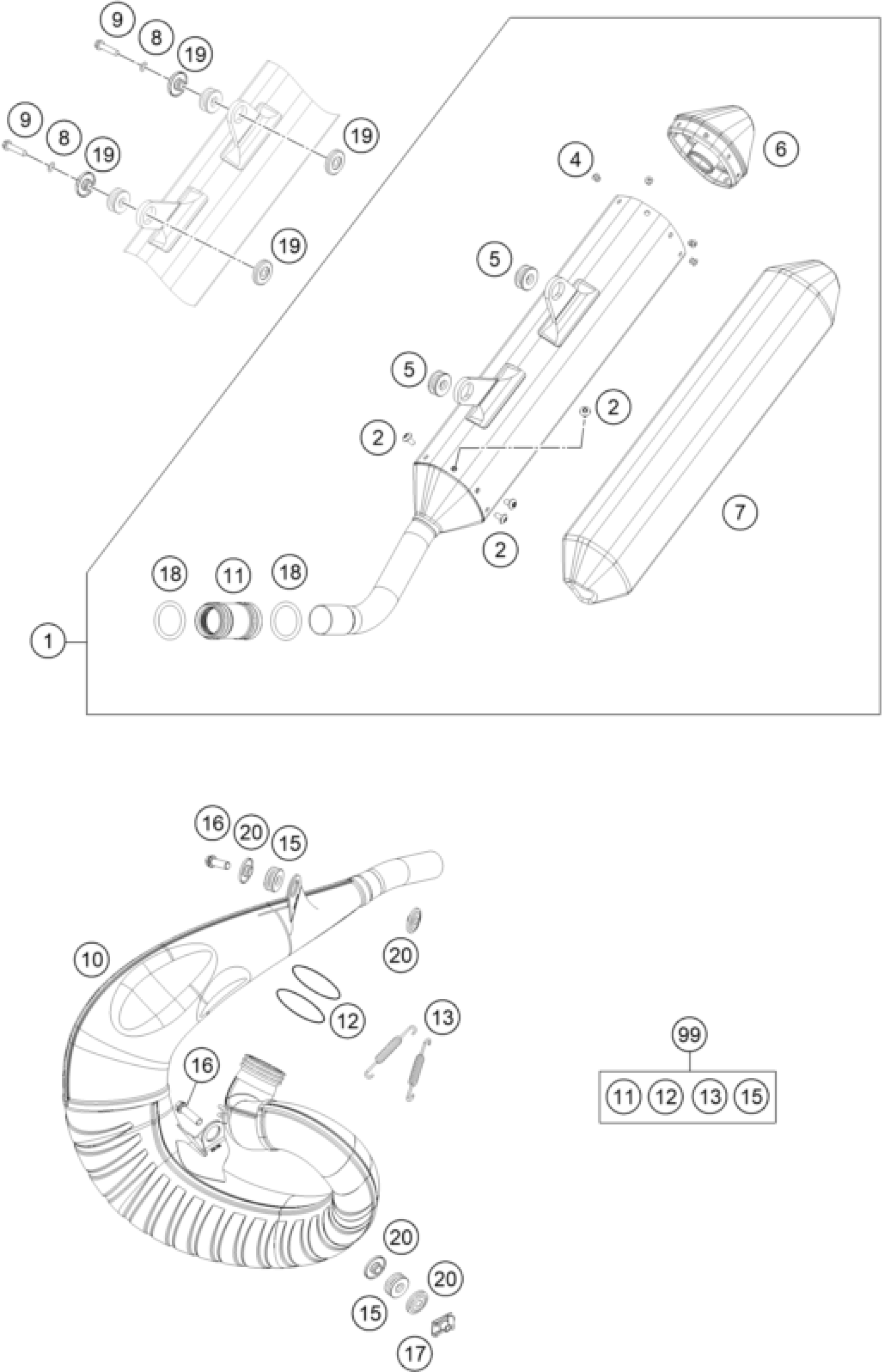

KTM 250 XC TPI 2020 EXHAUST SYSTEM Diagram

Main silencer EXC

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

DAMP. COMPON. BLACK

end cap cpl.

stuffingyarn package

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

Header

exhaust rubber

O-RING 44,00X3,00 VITON

TEN.SPRING L=62MM EY.MOVEABLE

Damper gray

HH collar screw M8x30

RANGE CHANGE METAL NUT M8

hose spring

BUSHING 7.5x12x28x8.3 11

BUSHING 8.5x12x28x8.3

EXHAUST HARDWARE KIT 11-14
