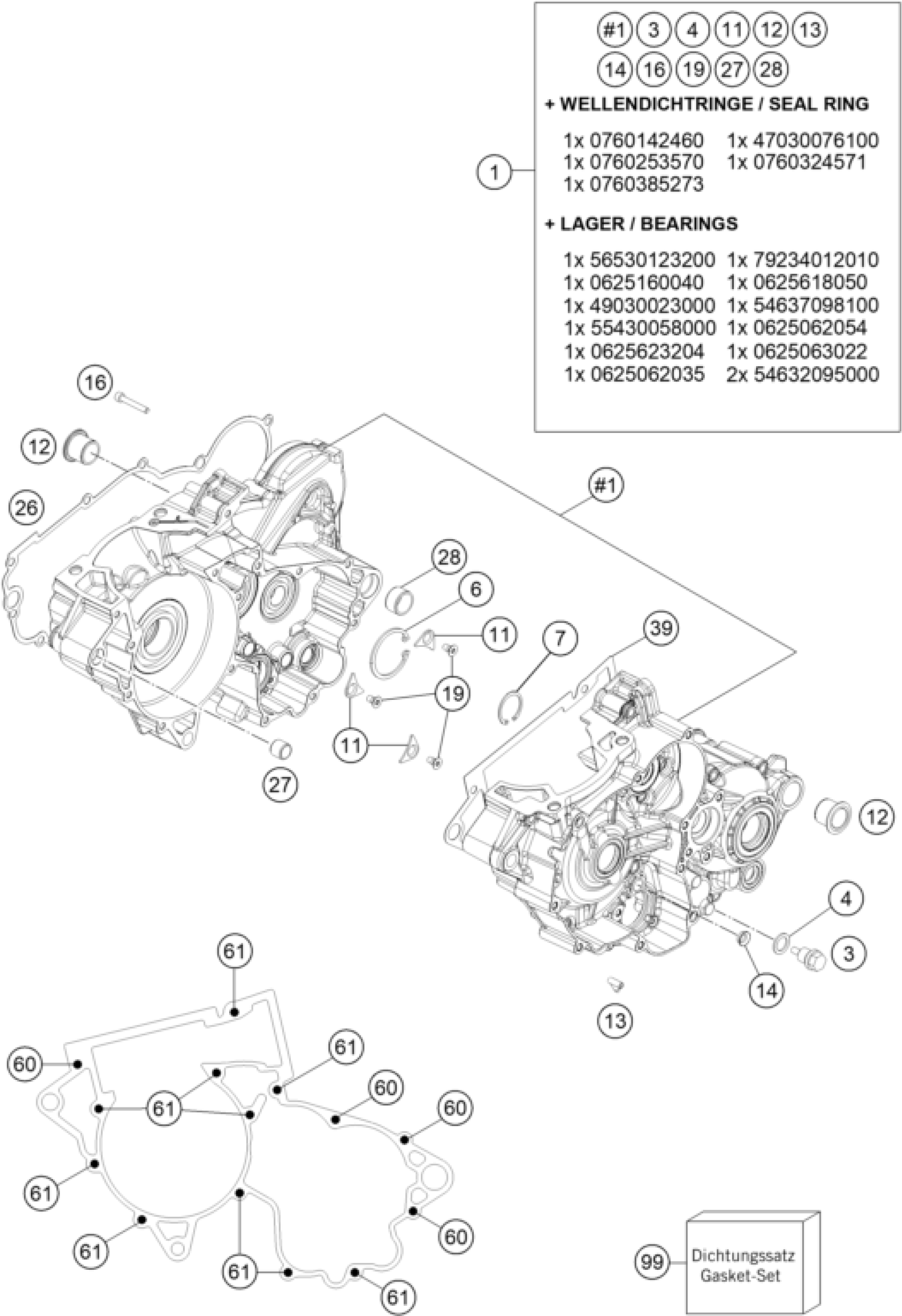

KTM 250 XC TPI 2020 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

55530100044

$1,027.74

3

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

4

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

6

CIRCLIP DIN0472-42X1,75

0472042175

$2.05

7

CIRCLIP DIN0472-28X1,2

55430059100

$1.49

11

RETAINING PLATE F. CS BEARING

75030085000

$1.49

12

CASE BUSH

75030010100

$12.33

13

ANGLE PIECE 50CCM LC 2001

45130022000

$5.88

14

Collar bushing

55540031000

$2.05

16

AH SCREW DIN0912 M 6X40

0912060406

$1.49

19

hex lobe countersunc screw M5x

0019050106S

$2.05

26

CLUTCH COVER GASKET INSIDE

55430025100

$22.71

27

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

28

DOWEL 21X12 03

54830027000

$5.23

39

ENGINE CASE GASKET

55430039000

$35.33

60

HH collar screw M6x60 TX30

0025060606

$3.08

61

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

99

Seal Kit Engine 250/300

55430199001

Unavailable
