CYLINDER, CYLINDER HEAD

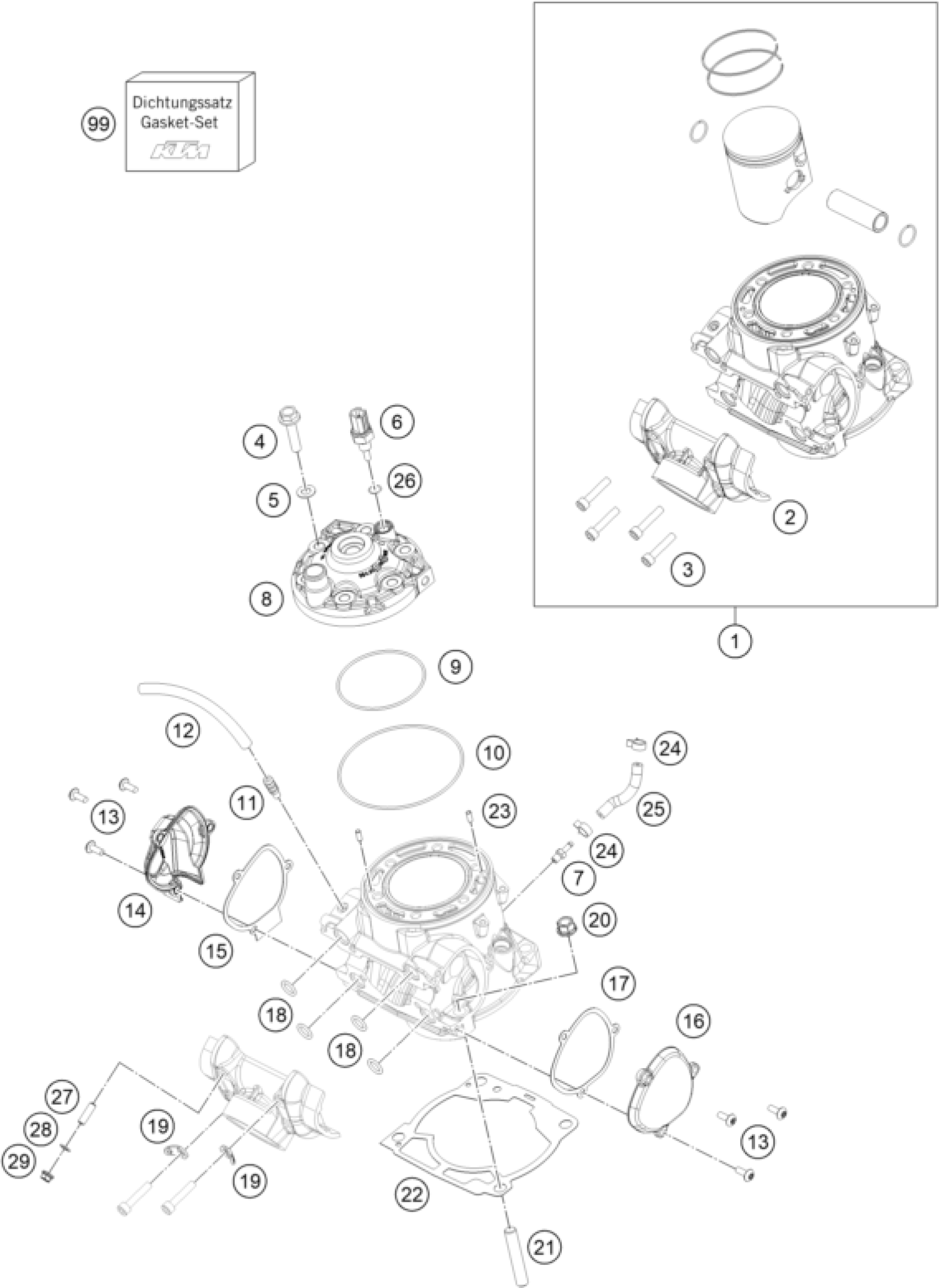

KTM 250 XC TPI 2020 CYLINDER, CYLINDER HEAD Diagram
#
Description
Price
1
Cylinder + Piston
55530138000
$1,098.06
2
Connection Flange
55437001000
$311.44
3
AH SCREW DIN0912-M 6X35
0912060353
$2.05
4
COLLAR SCREW M 8X35 WS=13
54830079000
$4.11
5
CU-SEAL RING 8 X 16 X 1
56530080000
$2.05
6
water temperature sensor
79435047000
$23.74
7
Vacuum connection
55430023000
$7.10
8
Cylinder head 250 EXC
55430106200
$201.48
9
O-RING 73,00X2,00 VITON
0770730020
$5.23
10
O-ring 105x2
0770105020
$5.32
11
VACUUM CONNECTION M6
78036020090
$7.66
12
HOSE EPA D=6/10 PER METER
78015019001
$62.64
13
Oval head screw M5x14 TX25
58605083014
$3.08
14
exhaust control cover rh
5483700710015
$38.42
15
Gasket control cover, right
55537008000
$6.91
16
CONTROL COVER L/S 09
5483700500015
$24.58
17
Gasket control cover, left
55537006000
$6.91
18
O-RING 11,3 X2,4 SILICON
0770116241
$3.08
19
RETAINING PLATE
51005074000
$3.08
20
Collar nut M10-SW13 ZnNi
55530044000
$1.49
21
Stud M10x35
0835100353
$2.05
22
CYLINDER BASE GASKET
55430030025
Unavailable
22
CYLINDER BASE GASKET
55430030020
Unavailable
22
CYLINDER BASE GASKET
55430030040
Unavailable
22
CYLINDER BASE GASKET
55430030050
Unavailable
22
CYLINDER FOOT GASKET
55430030075
Unavailable
23
Needle roll.DIN5402 NRB 4X9.8
0402040980
$3.08
24
CLAMP YDNAC 10096F (9,6MM)
59007017000
$2.05
25
tube 3,2x9.0 L=75mm
61041095075
$4.11
26
o-ring 10.00x2.00 silicone
0770100020
$2.05
99
Gasket set piston 250/300
55430097000
Unavailable
22
Cylinder base gasket
55430030030
$5.23
27
THREAD PIN DIN0913-M 6X20
0913060203
$1.49
28
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
29
COLLAR NUT M6X1 SW8
77336088106
$12.61
