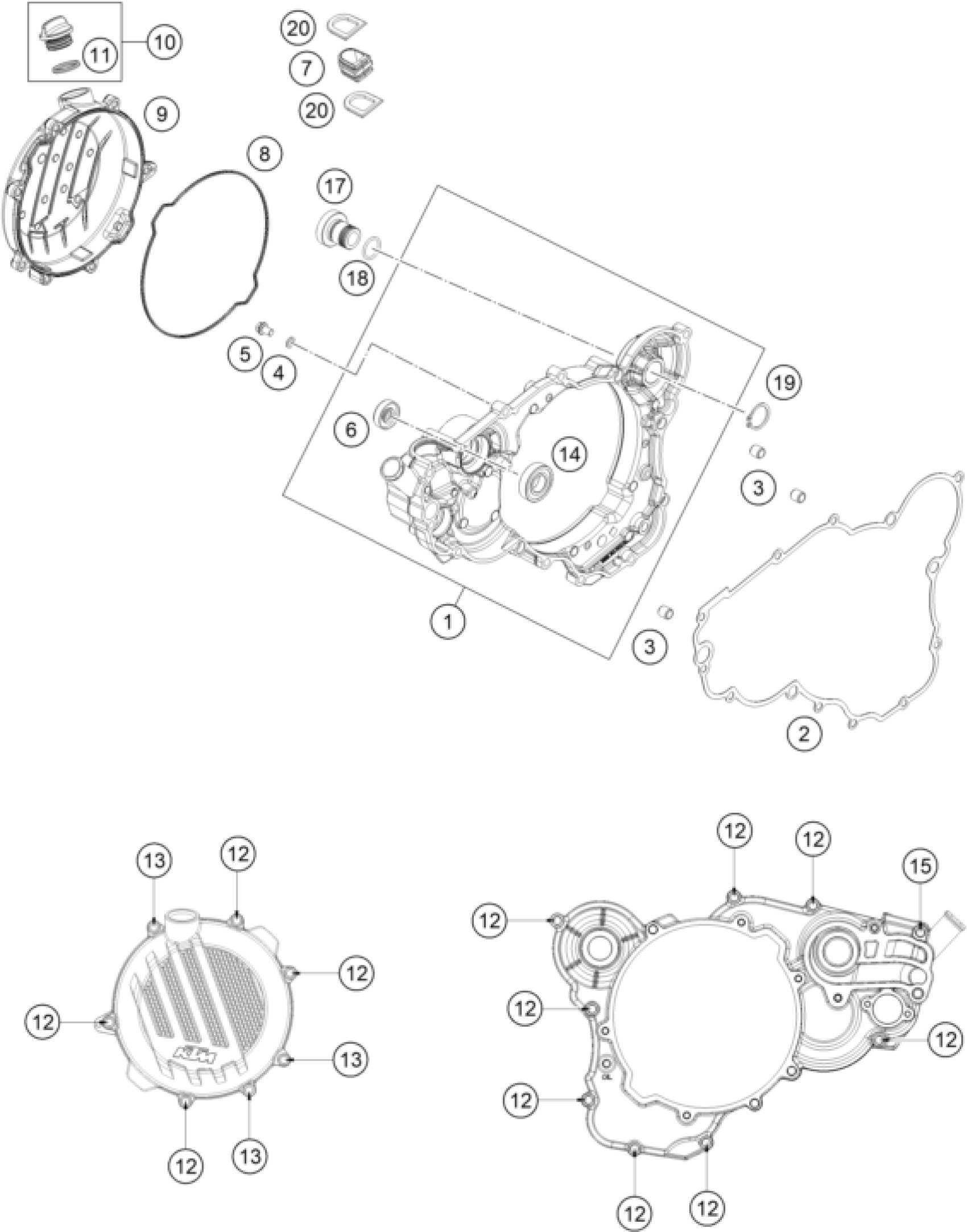

KTM 250 XC TPI 2020 CLUTCH COVER Diagram

#

Description
Price

1

Inner clutch cover cmpl.

55530101044

$125.56

2

CLUTCH COVER GASKET INSIDE

55430025100

$22.71

3

DOWEL 9,8 X7X10

49030090100

$2.05

4

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

5

HH collar screw M6x10 TX30

0025060106

$3.08

6

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

7

SEALING CARRIER 07

54837091100

$3.08

8

CLUTCH COVER GASKET OUTSIDE

55430027000

$13.46

9

Clutch cover

5543002610015

$63.01

10

Oil filler cap cmpl. M24x3

79430020033

$8.03

11

O-RING 19,00X3,00 NBR

0770191015

$2.05

12

HH collar screw M6x20 TX30

0025060206

$3.08

13

HH collar screw M6x60 TX30

0025060606

$3.08

17

KICK STARTER PLUG

83033056100

$16.82

14

BALL BEARING 16002 C3

0625160020

$19.07

18

O-RING 14,00X2,00

0770140200

$2.05

19

CIRCLIP DIN0471-19X1,2

0471190120

$1.49

15

HH collar screw M6x40 TX30

0025060406

$3.08

20

SEALING ELEMENT BOTTOM

54637107000

$7.38
