Description

Price

1

Intake camshaft

A46036009000

$128.18

2

Exhaust camshaft

A46036010000

$126.78

3

Slide bars

A46036004000

$12.15

4

Slide bars

A46036001000

$11.40

5

Slide rail

A46036002000

$16.07

6

BUSHING SCREW M6

77236001160

$5.23

7

BUSHING SCREW M8

77236002160

$3.08

8

o-ring 18.00x2.00 NBR70

0770180020

$2.05

9

Chain tension adjuster, hydrau

77036003200

$52.91

10

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

11

chain tension adjuster plug

77336008200

Unavailable

12

o-ring 10.00x1.00 NBR70

0770010010

$2.05

13

threaded plug

77236080100

$6.63

15

SECURING PROTECTION

77236005000

$3.08

16

Timing chain

A47036013000

$63.76

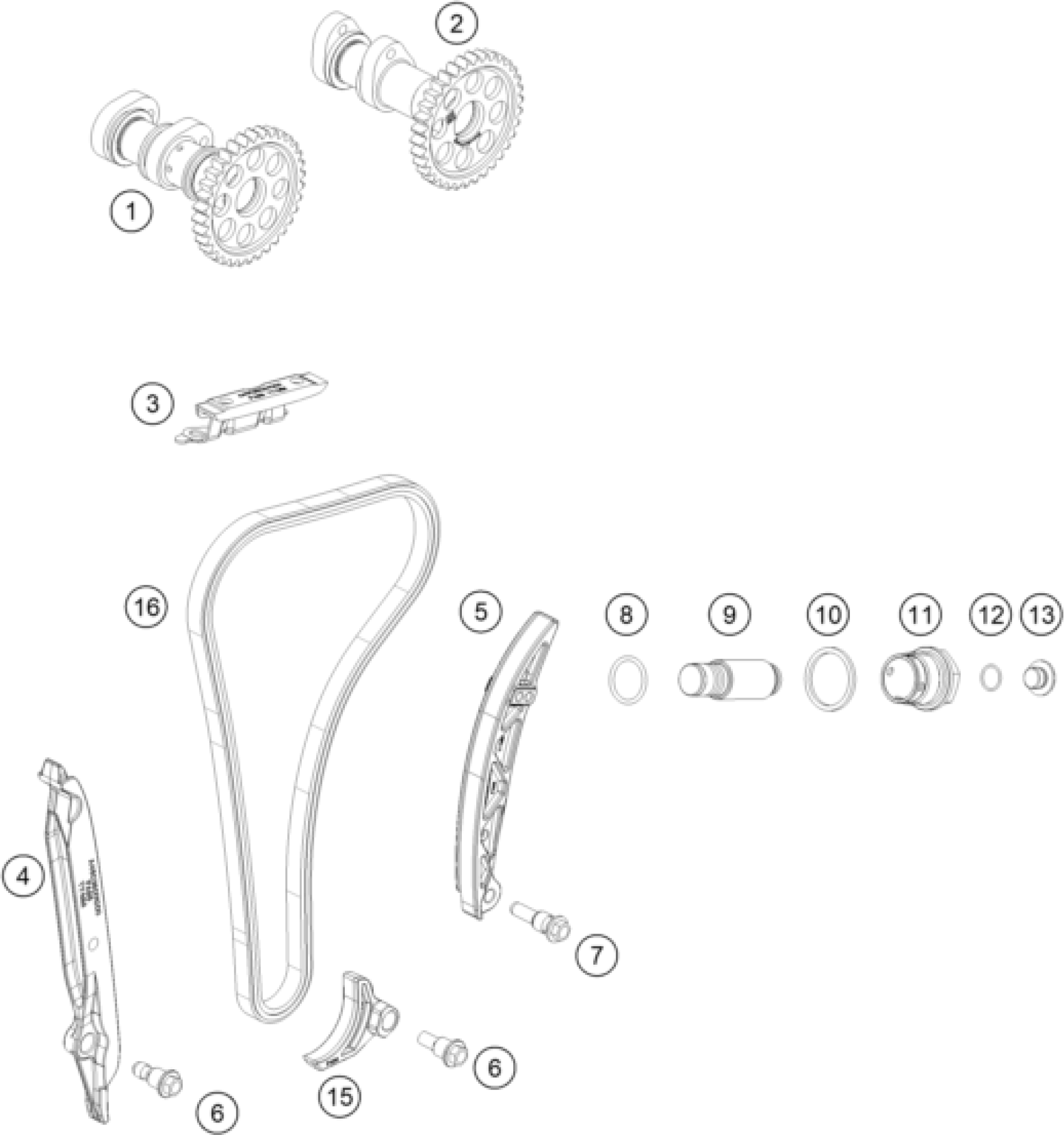

KTM 250 XC-F 2026 TIMING DRIVE Diagram

Intake camshaft

Exhaust camshaft

Slide bars

Slide bars

Slide rail

BUSHING SCREW M6

BUSHING SCREW M8

o-ring 18.00x2.00 NBR70

Chain tension adjuster, hydrau

CU SEAL-RING DIN7603 A24X29X2

chain tension adjuster plug

o-ring 10.00x1.00 NBR70

threaded plug

SECURING PROTECTION

Timing chain
