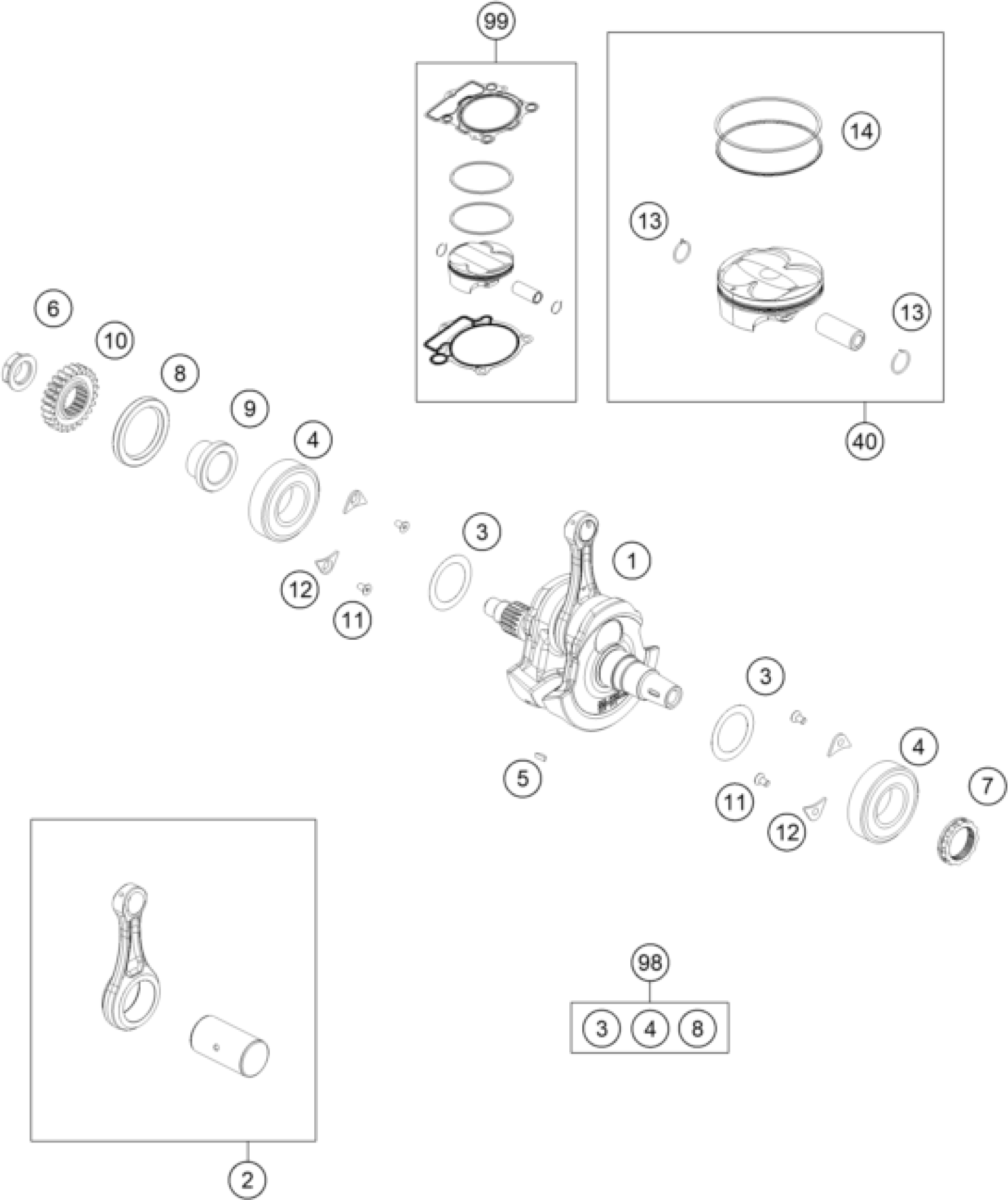

KTM 250 XC-F 2025 CRANKSHAFT, PISTON Diagram

Crankshaft cmpl.

A46030018000

$832.24

Connecting rod rebuild kit

A46030015044

$337.25

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

Nut M18x1.5 Precote LH thread

0910001801001S

$4.29

Nut M27x1 Precote

0910002700800S

$20.19

SHAFT SEAL RING A 40X55X6 V.

0760405561

$15.61

Spacer, primary gear

77232022100

$11.02

gear primary drive

79232023124

$101.44

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

Retaining bracket crankshaft b

75030085100

$1.49

CIRCLIP PISTON PIN

79030274000

$15.80

Piston ring set

79130231044

$108.79

PISTON Gr. I CPL. MX 250

A46030007000 I

Unavailable

Piston Gr. II cpl. MX 250

A46030007000 II

Unavailable

Crankshaft repair kit

00050002319

Unavailable

Piston kit Gr. I MX 250

A46030007010 I

Unavailable

Piston kit gr. II MX 250

A46030007010 II

Unavailable
