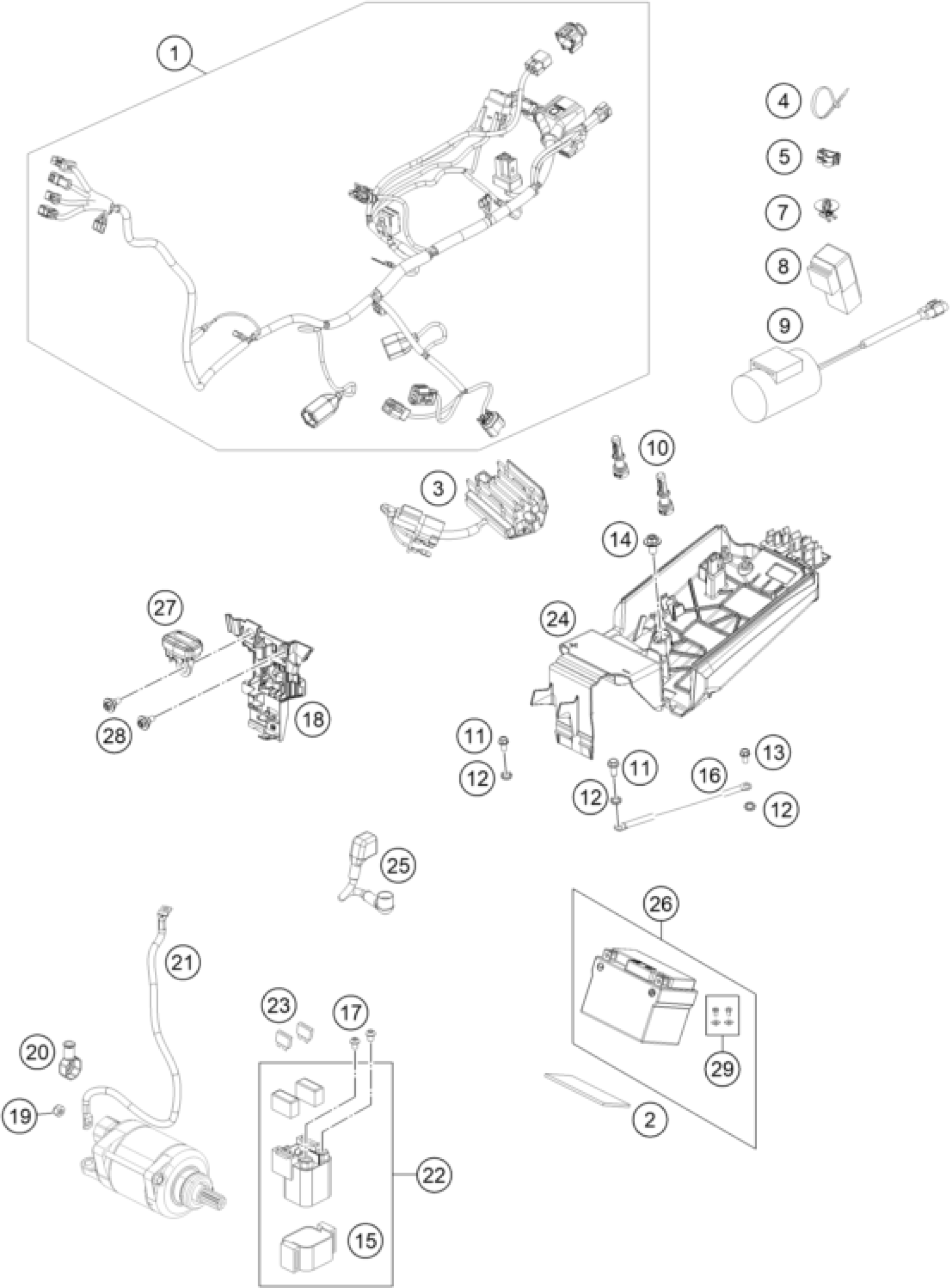

KTM 250 XC-F 2024 WIRING HARNESS Diagram

#

Description
Price

1

Main harness

A46011075100

$311.25

2

METAMOLL 90X45X3MM 03

59003001099

$2.05

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

7

Cable bracket d8

79711013010

$1.49

8

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

9

Capacitor

77711035000

$87.32

10

Holder control unit

55641030000

$3.08

11

HH collar screw M5x12 TX30

0025050126

$3.08

12

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

13

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

16

Ground wire

75011097100

$10.18

17

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

18

Connector support

A46011083000

$11.59

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

Starter cable

A46011059000

$15.33

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 10A

58011109110

$2.05

24

Battery holding bracket

A46011055000

$10.97

25

Battery cable cmpl.

A46011059050

$23.65

26

battery 12V/24Wh

79111053000

$166.05

27

Dashboard

A46014069000

$44.03

28

Special screw M6x15x5.5

83008100015

$3.08

29

screw kit

79111053010

$4.11
