Description

Price

1

Main shaft cmpl.

A46033501000

$217.94

13

BALL BEARING TM 16004 C4

0625160041

$19.44

14

Groove ball bearing 6205 C4 NT

0625062056

$14.02

15

RETAINING PLATE F. CS BEARING

75030085000

$1.49

16

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

3

Idler gear 5th gear, teeth=23

A46033505000

$69.28

4

STOP DISC 25X31X1,5

54833044000

$5.23

5

CIRCLIP WS24

0417024000

$2.05

6

Sliding gear 3rd/4th gear, tee

A46033503000

$128.37

7

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

8

Idler gear sixth-gear, teeth=2

A46033506000

$70.02

9

Fixed gear 2nd gear, teeth=16

A46033502000

$81.15

10

bushing

79133001010

$8.50

12

SPACER SHIM 21X42X0.2

77233088000

$5.79

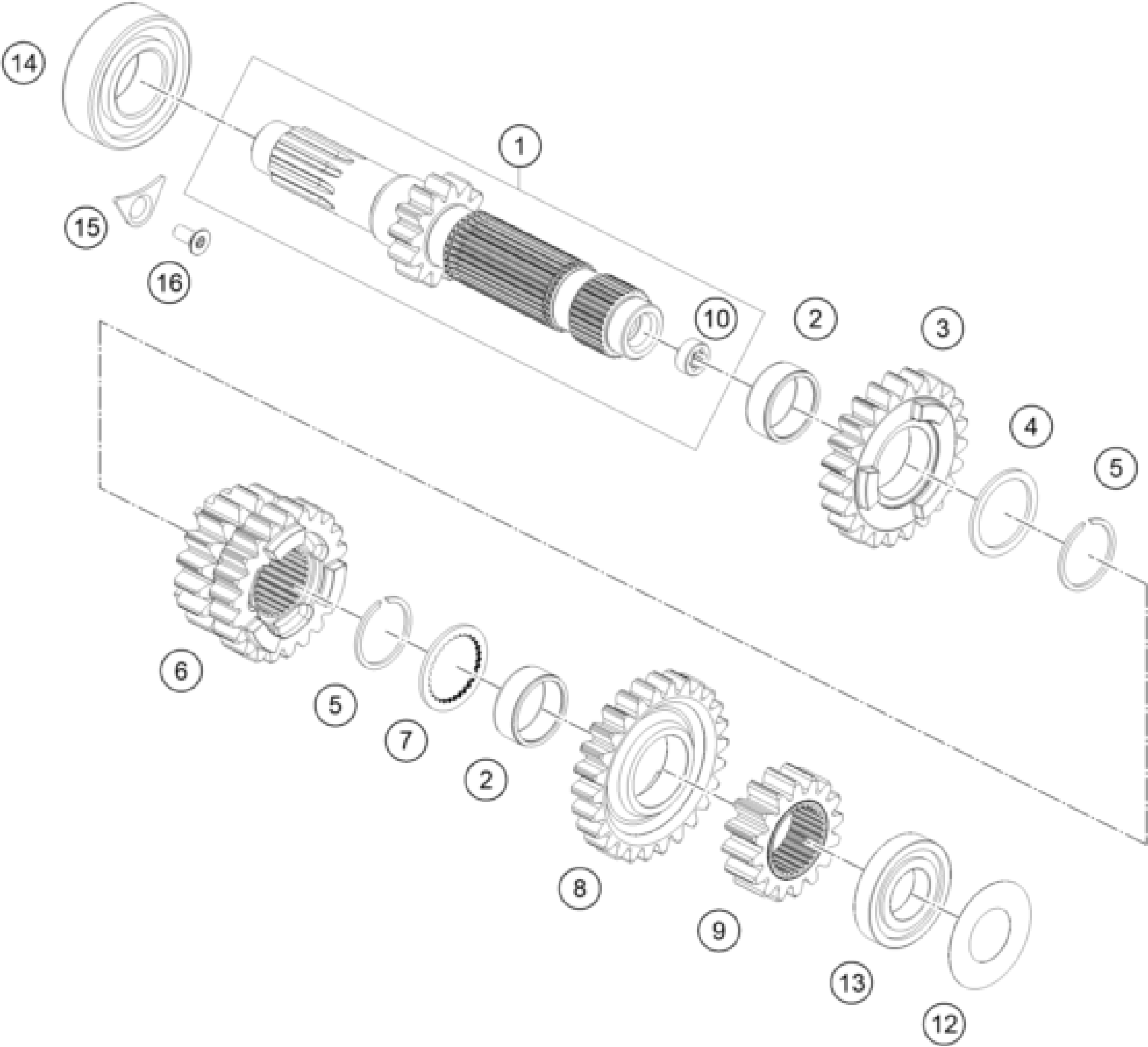

KTM 250 XC-F 2023 TRANSMISSION I - MAIN SHAFT Diagram
