SHIFTING MECHANISM

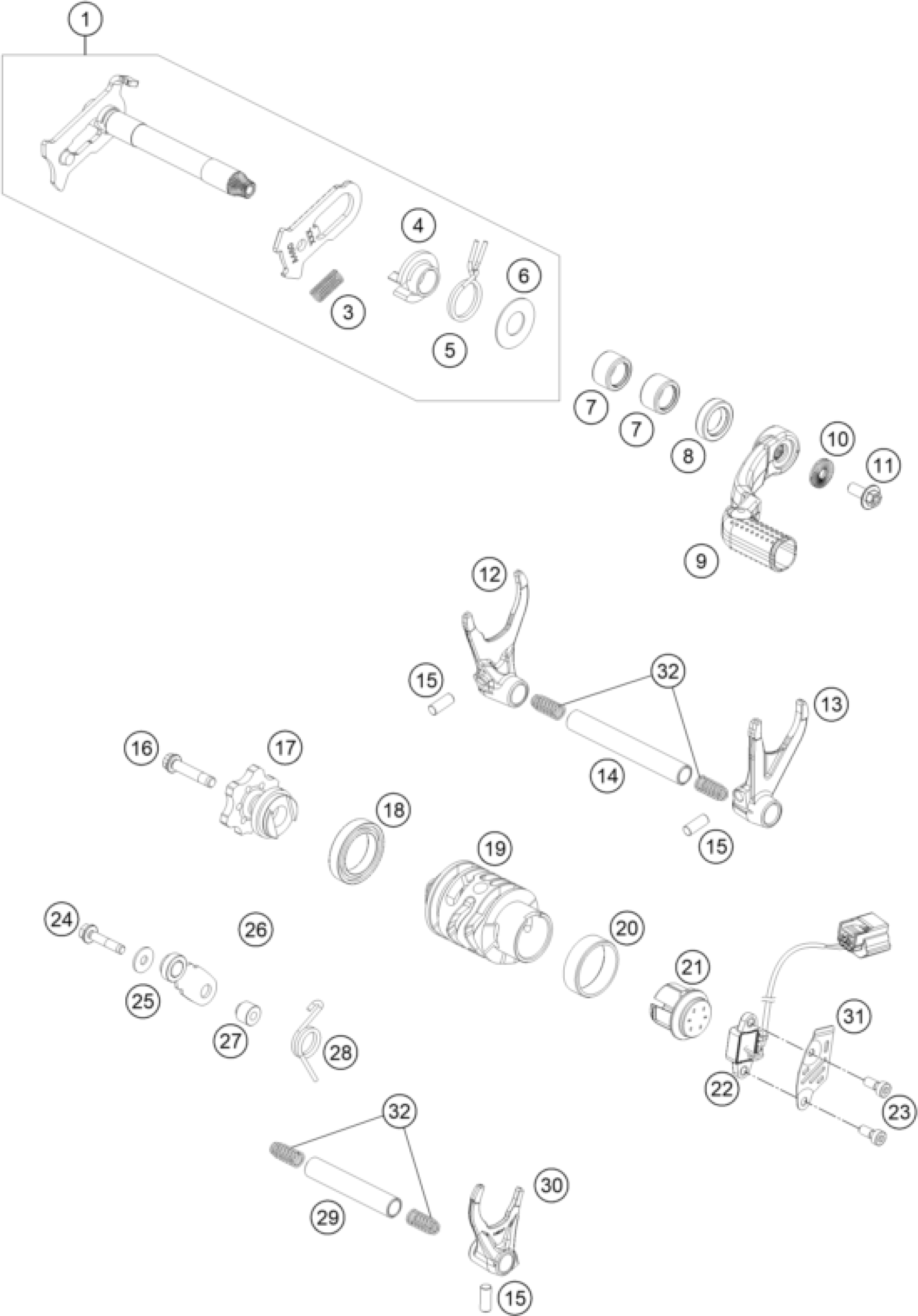

KTM 250 XC-F 2023 SHIFTING MECHANISM Diagram
#
Description
Price
1
Shift shaft cpl.
A46034005033
$38.05
3
TENSIONING SPRING 0,8MM
56534013100
$1.49
4
SPRING GUIDE
54634020000
$6.44
5
RETURN SPRING 03
54834014000
$4.11
6
STOP DISK 14X30X1
54634050000
$2.05
7
needle sleeve HK 1412 14x20x12
54632095000
$7.00
8
radial shaft seal 14x24x6 B
0760142460
$9.25
9
Shift lever cmpl.
79234031100
$102.56
10
PAIR NORDLOCK WASHER M6
50233041500
$4.11
11
HH collar screw M6x15 TX30
0024060156S
$2.05
12
shift fork 1.-3. gear
A46034503000
$40.85
13
shift fork 2.-4. gear
A46034502000
$40.85
14
Shift fork shaft (L=93 mm)
A46034019000
$8.31
15
NEEDLE ROLLER DIN5402 6X14,8
0402061480
$4.11
16
HH collar screw M6x30 TX30
0025060306S
$3.08
17
Shift star cmpl.
A46034015000
$21.03
18
Grooved ball bearing 6805 JR C
0410002500700
$43.94
19
Shift drum 6 gear
A46034512000
$78.06
20
FRICTION BEARING CONTROLLER
79234012010
$22.99
21
Magnet bracket cmpl.
79234012020
$58.71
22
gear position sensor
79211023000
$121.35
23
Hex coll. screw M5x14 ISA30 se
0025050146S
$1.49
24
HH collar screw M5x25 TX30
0025050256S
$1.49
25
washer DIN 9021 A - 5.3
0021050003
$1.49
26
Detent arm cmpl.
A46034024044
$11.59
27
SLEEVE FOR LOCKING LEVER
54634052300
$3.08
28
LOCKING LEVER SPRING 03
54834023000
$3.08
29
Shift fork shaft (L=66 mm)
A46034020000
$7.85
30
shift fork 5.-6. gear
A46034501000
$40.85
31
Shield gear position sensor
A46011024000
$6.63
32
Compression spring L=25mm D=0.
58038023400
$1.49
