Description

Price

1

ROTOR EFI CPL.

79239005044

$544.44

2

FLYWHEEL SCREW

77339010100

$5.60

3

Ignition cover gasket

A46030040000

$8.97

4

Cap head screw DIN 6912 - M5x3

0012050303S

$1.49

5

Stator

79239004200

$204.20

6

Cap head screw DIN912 - M5x16

0912050163S

$1.49

7

Cable retainer

A46030002050

$9.06

8

HH collar screw M6x20 TX30

0025060206

$3.08

10

Ignition cover

A46030002000C1

$85.36

11

THREAD PIN DIN 913 M5X6

0913050063S

$1.49

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

16

o-ring 24.00x2.50 Viton

07700240251

$3.08

17

SCREW PLUG M24X1,5

7723000216030

$36.64

18

Resistor Plug Cover

79139090000

$58.99

19

spark plug

77839093000

$22.71

21

HH collar screw M6x30 TX30

0025060306

$3.08

22

Ignition coil

58439006000

$75.45

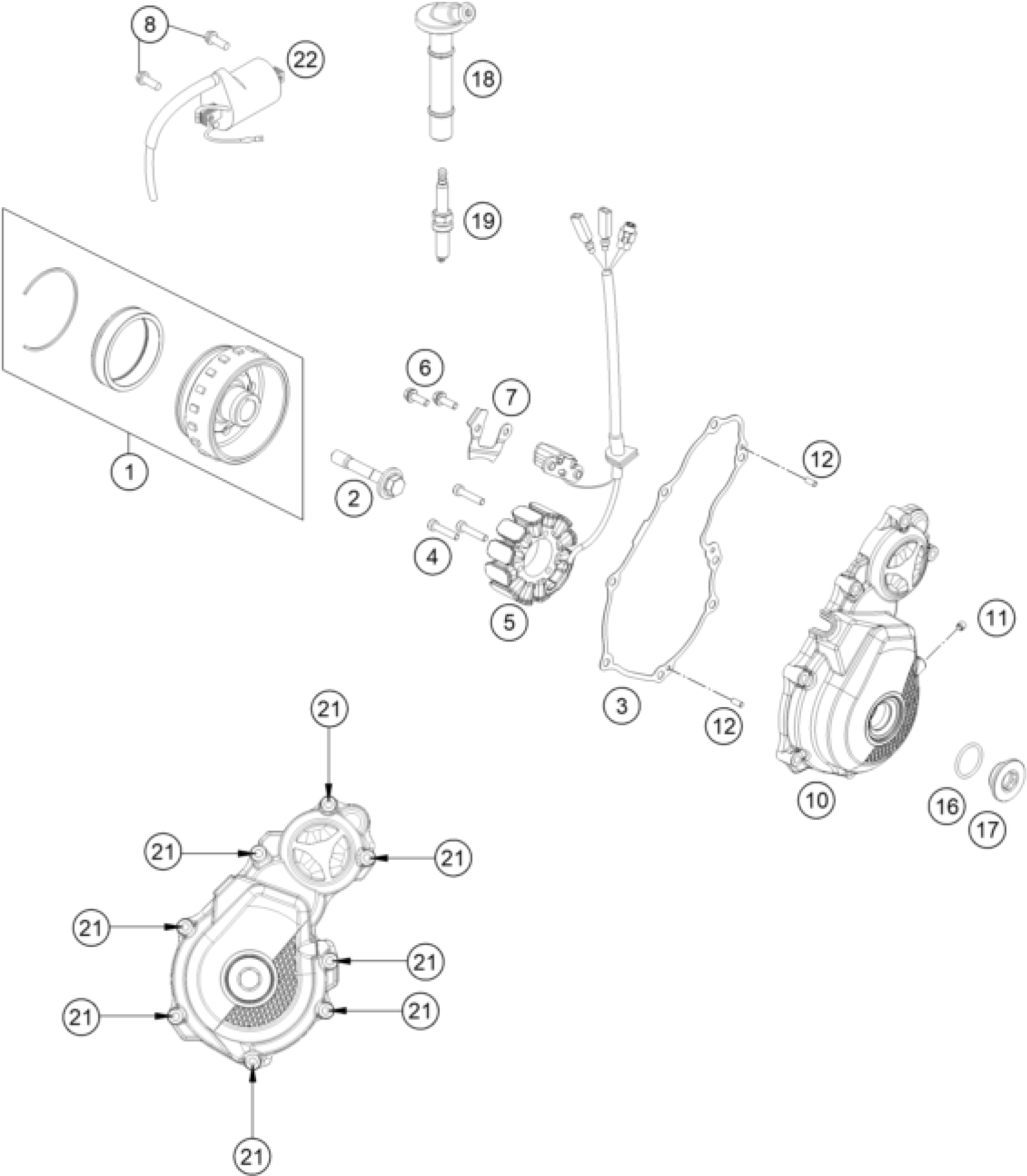

KTM 250 XC-F 2023 IGNITION SYSTEM Diagram

ROTOR EFI CPL.

FLYWHEEL SCREW

Ignition cover gasket

Cap head screw DIN 6912 - M5x3

Stator

Cap head screw DIN912 - M5x16

Cable retainer

HH collar screw M6x20 TX30

Ignition cover

THREAD PIN DIN 913 M5X6

Needle roll.DIN5402 NRB 4X9.8

o-ring 24.00x2.50 Viton

SCREW PLUG M24X1,5

Resistor Plug Cover

spark plug

HH collar screw M6x30 TX30

Ignition coil
