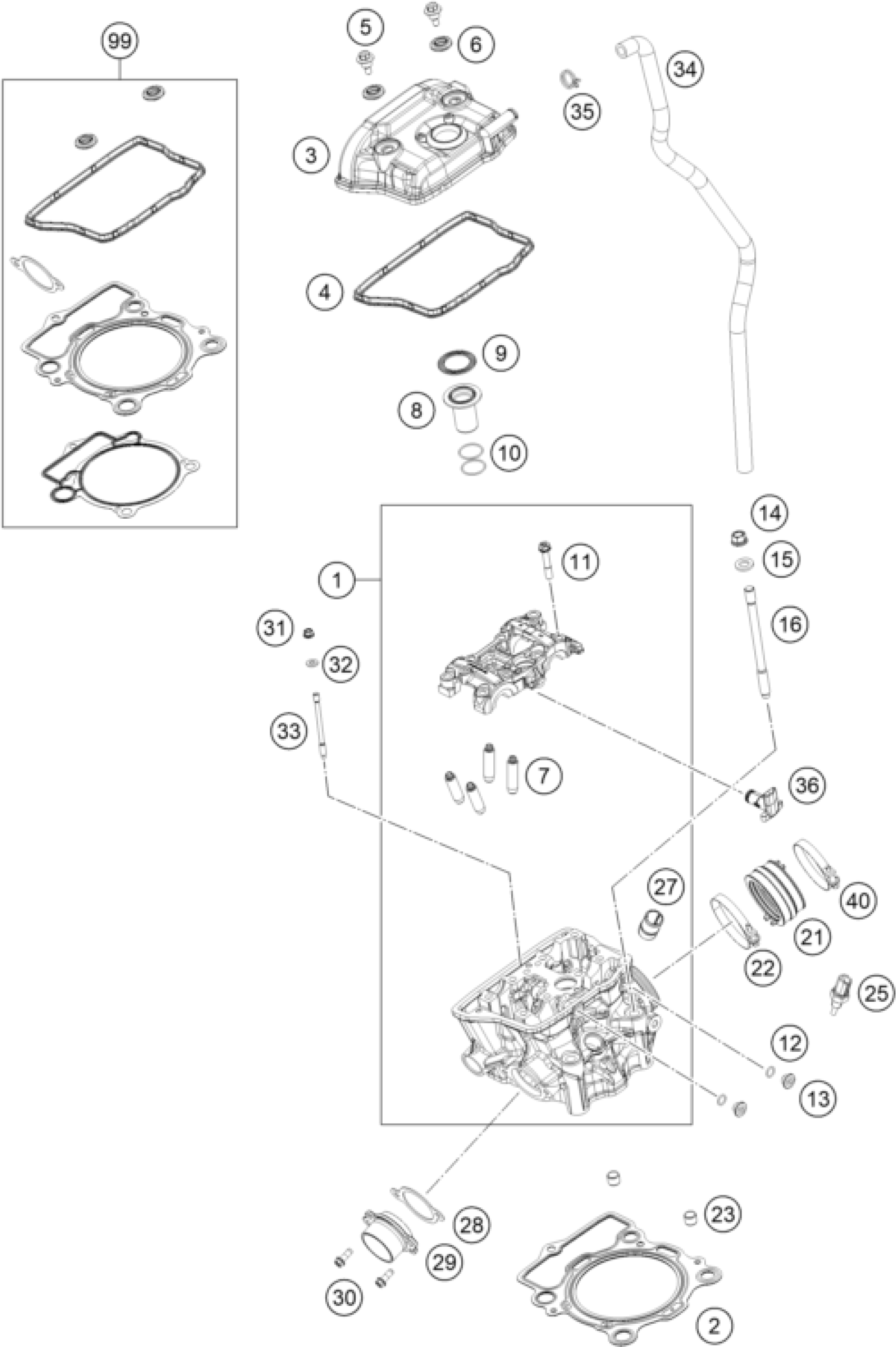

KTM 250 XC-F 2023 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

A46036020044

$456.55

2

Cylinder head gasket

A46030036072

$51.23

3

Valve cover

A46036052000C1

$25.14

4

Valve cover seal

A46036053000

$4.11

5

VALVE COVER SCREW

77336054150

$5.23

6

Sealing element

77036054250

$4.11

7

VALVE GUIDE OUTLET

77136026001

$27.85

8

Spark plug shaft insert

A46036075000

$10.65

9

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

10

O-ring 23x1.5 Viton

07702300151

$5.23

11

Collar screw M7x1x38

0000150703800

$1.49

12

O-RING 9X1,5 NBR

0770090015

$2.05

13

threaded plug

77236080100

$6.63

14

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

15

washer 19x10.5x2.5

77336089010

$4.11

16

Stud M10x1,25

0900000814500

$4.11

21

rubber sleeve

79536044000

$28.60

22

Hose clamp GEMI 63mm 05

61036047000

$7.56

23

dowl sleeve 10.2x12.5x10

58530014100

$4.11

25

water temperature sensor

79435047000

$23.74

27

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

28

Exhaust pipe flange gasket

A46036041000

$6.07

29

Engine flange

A46036039000

$20.56

30

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

31

COLLAR NUT M6X1 SW8

77336088106

$12.61

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

Stud M6

0900000607900

$2.05

34

Engine vent hose

79030087000

$31.59

35

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

40

Hose clip GEMI 58

77236048000

$12.05

99

Cylinder gasket kit mx 250

A46030097000

Unavailable

36

Angle piece, engine breather

A46036081000

$6.63
