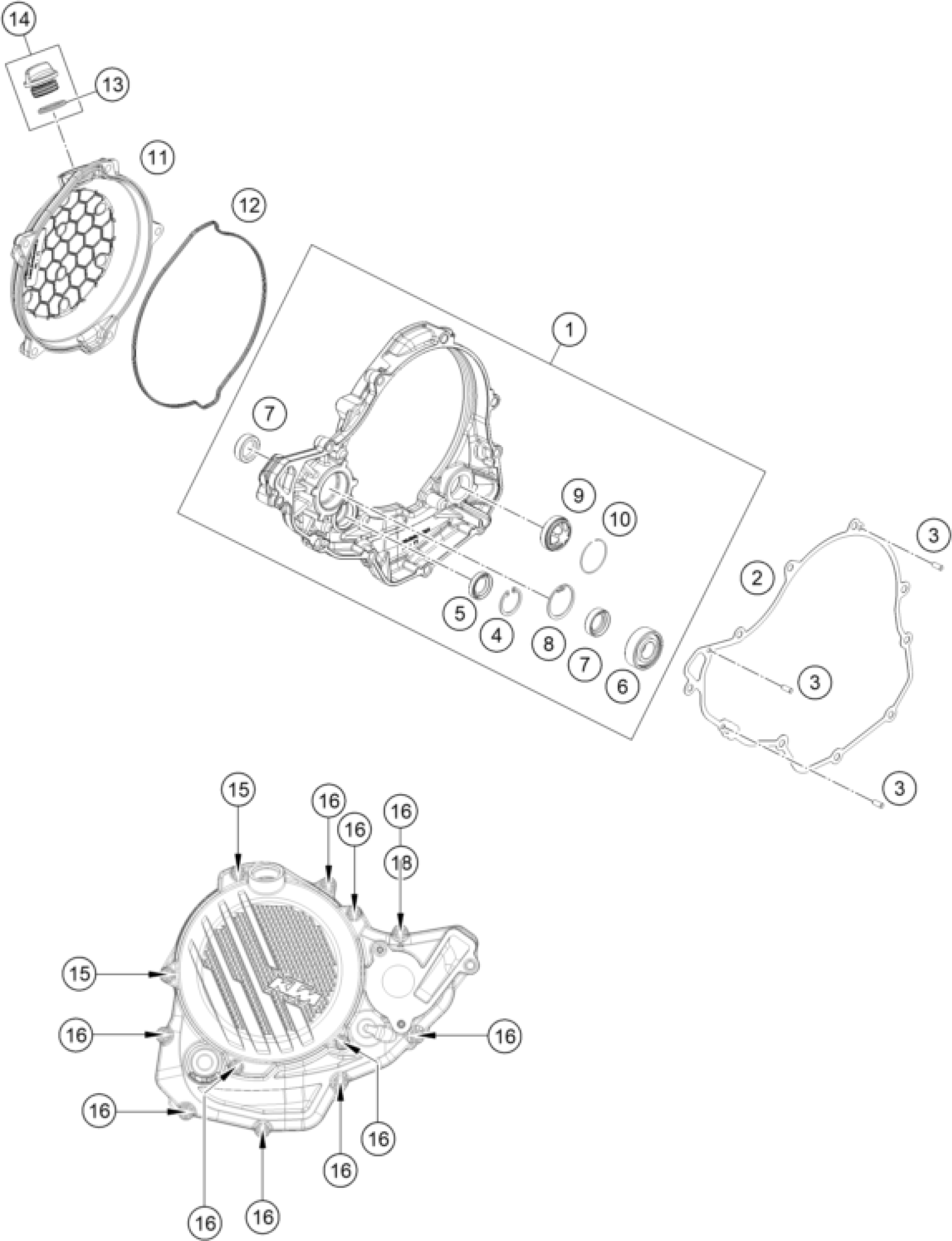

KTM 250 XC-F 2023 CLUTCH COVER Diagram

inner clutch cover cpl.

A46030001044

$76.47

Clutch cover gasket

A46030025000

$11.87

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

CIRCLIP DIN0472-24X1.2

0472024120

$1.49

SHAFT SEAL RING 14X24X5 VITON

0760142450

$16.07

BALL BEARING 6202 C0 2

0625062022

$14.48

SHAFT SEAL RING 15X30X4.5 BAUD

07601530451

$6.82

CIRCLIP 30X1,2

0472300120

$1.49

OIL SIGHT GLASS

59030019200

$21.31

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

Clutch cover outside

A48030026000C1

$51.60

Clutch cover gasket external

A48030027000

$6.91

O-RING 19,00X3,00 NBR

0770191015

$2.05

Oil filler cap cmpl. M24x3

79430020033

$8.03

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

HH collar screw M6x25 TX30

0025060256

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05
