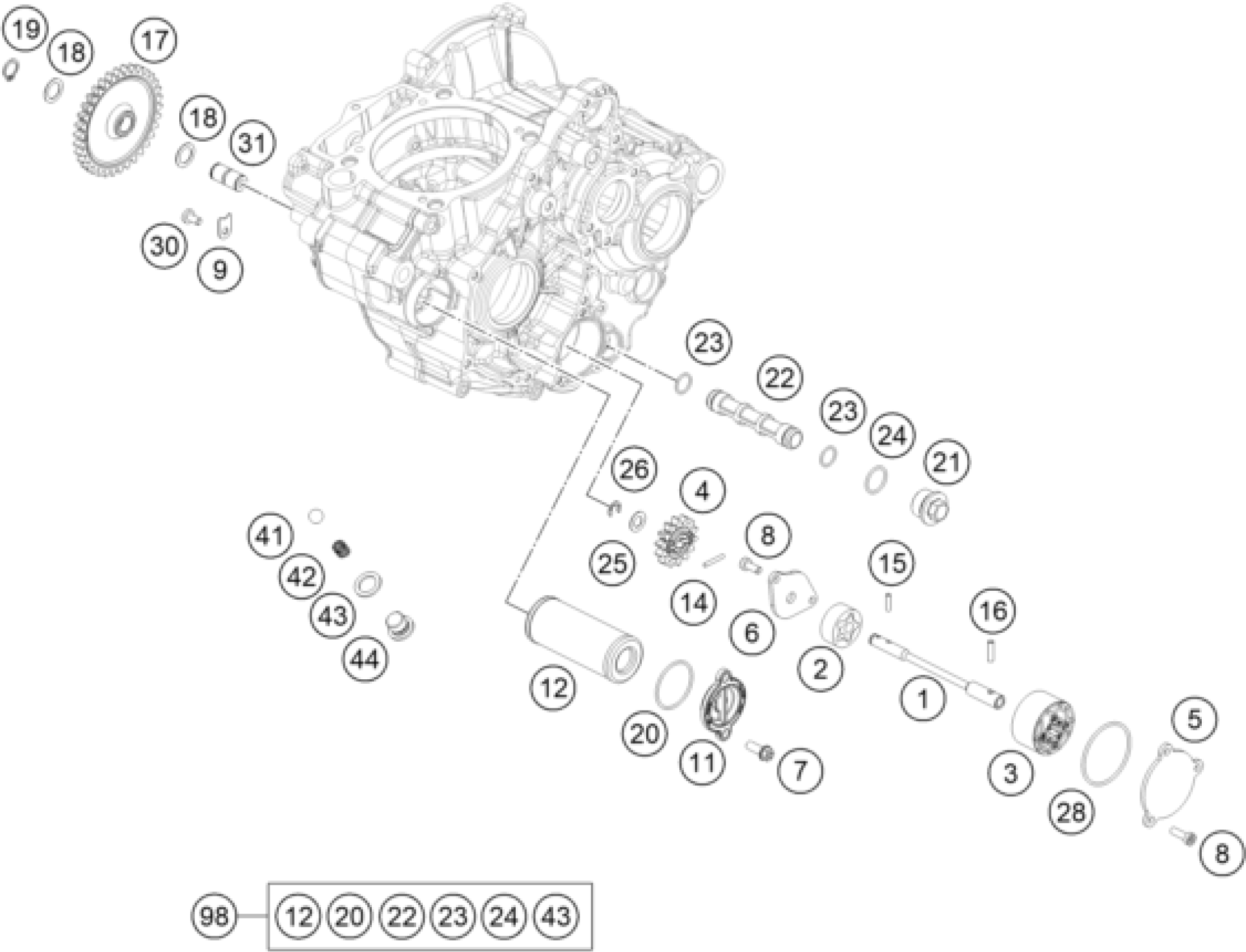

KTM 250 XC-F 2020 LUBRICATING SYSTEM Diagram

Oil pump shaft

79238002100

$35.33

OILPUMP ROTOR-SET 12MM CPL.

59038011112

$20.75

ROTOR-SET CPL. 22MM

61238111000

$16.63

OIL PUMP GEAR 14T 08

77038001100

$7.75

OIL PUMP COVER LEFT

79238004000

$14.11

OIL PUMP COVER RIGHT

79238003000

$17.10

HH collar screw M6x16 TX30

0025060166

$3.08

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

AXIAL-CIRCLIP

77238061050

$3.08

OIL FILTER COVER 08

77338041200

$11.68

Oil Filter 07

77338005100

$9.34

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

needle roller NRB 4x15.8 G2

0402041580

$2.05

Oil pump idler-gear

79238006100

$21.12

SHIM WASHER DIN0988-12X18X0,50

0988121805

$2.05

retaining ring DIN 471 12x1

0471120010

$1.49

O-RING 33,05X1,78

07703305178

$3.08

PLUG M20X1,5 WS=13

59038017100

$7.85

OIL SCREEN

59038016100

$7.00

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

O-RING 17,17X1,78 GLO

0770020170

$2.05

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

O-RING 44,00X2,00 VITON

0770440020

$3.08

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

BUSHING PIN

77038013100

$8.41

BALL DIN5401-9

0401090003

$2.05

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

PLUG SCREW SAS M12X1,5

78036024000

$9.72

OILFILTER-GASKET SET 350 SX-F

00050000083

Unavailable
