Description

Price

1

HANDLEBAR D=28MM

7900200100030

$151.84

2

Handlebar pad cmpl.

79102002044

$35.05

3

Kill switch

50311089200

$37.58

4

STARTER BUTTON GREY 13

78111074000

$42.91

5

Map switch

79039074100

$166.59

6

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

Handguard

79602182044EB

$26.34

9

Handguard assembly kit

79602084044

$33.99

13

THROTTLE CONTROL CASING CPL.

79002010025

$29.16

17

GRIP SET

79002021100

$31.44

18

Cable tie 200/4.6mm black

44011076200

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

30

MASTER CYLINDER CPL.

79202030044

$268.06

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 9MM

79202032044

$60.39

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

34

VALVE

54802051000

$19.16

35

BOLT KPL.

54802052000

$29.35

36

Brake fluid DOT5.1 0,25L

00062030000

$12.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

Push rod cmpl.

54802046000

$23.46

44

CLAMP CPL. 06

54802005100

$25.80

63

CLUTCH PIPE

79232063000

$112.38

92

Throttle cable wire

79102091000

$83.30

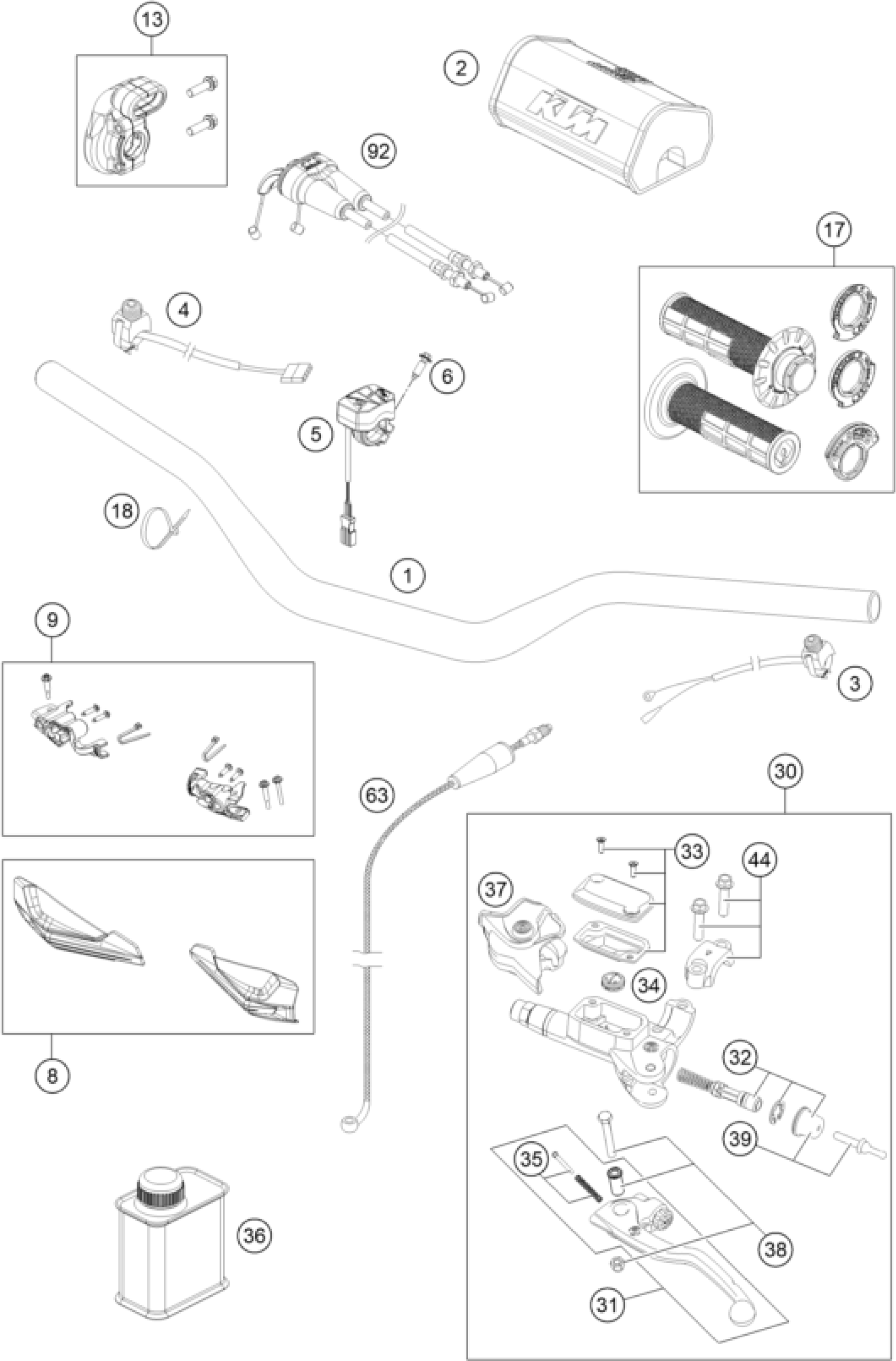

KTM 250 XC-F 2020 HANDLEBAR, CONTROLS Diagram
