Description

Price

1

GASKET KIT

78107089100

$71.80

2

FILTER KIT

81207090100

$76.29

3

Fuel pump

79707088400

Unavailable

4

NUT F. FUEL PUMP M12

78107088014

$10.00

5

Fuel connection cmpl.

79107190044

$23.37

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

8

FUEL HOSE TANK

77407116000

$15.98

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE THROTTLE BODY

79007216000

$14.11

11

Clutch CPC PLCD17005, black

5850701050030

$55.90

12

Fuel connection

77707010000

$15.14

14

FUEL FILTER

78141013190

$9.53

20

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

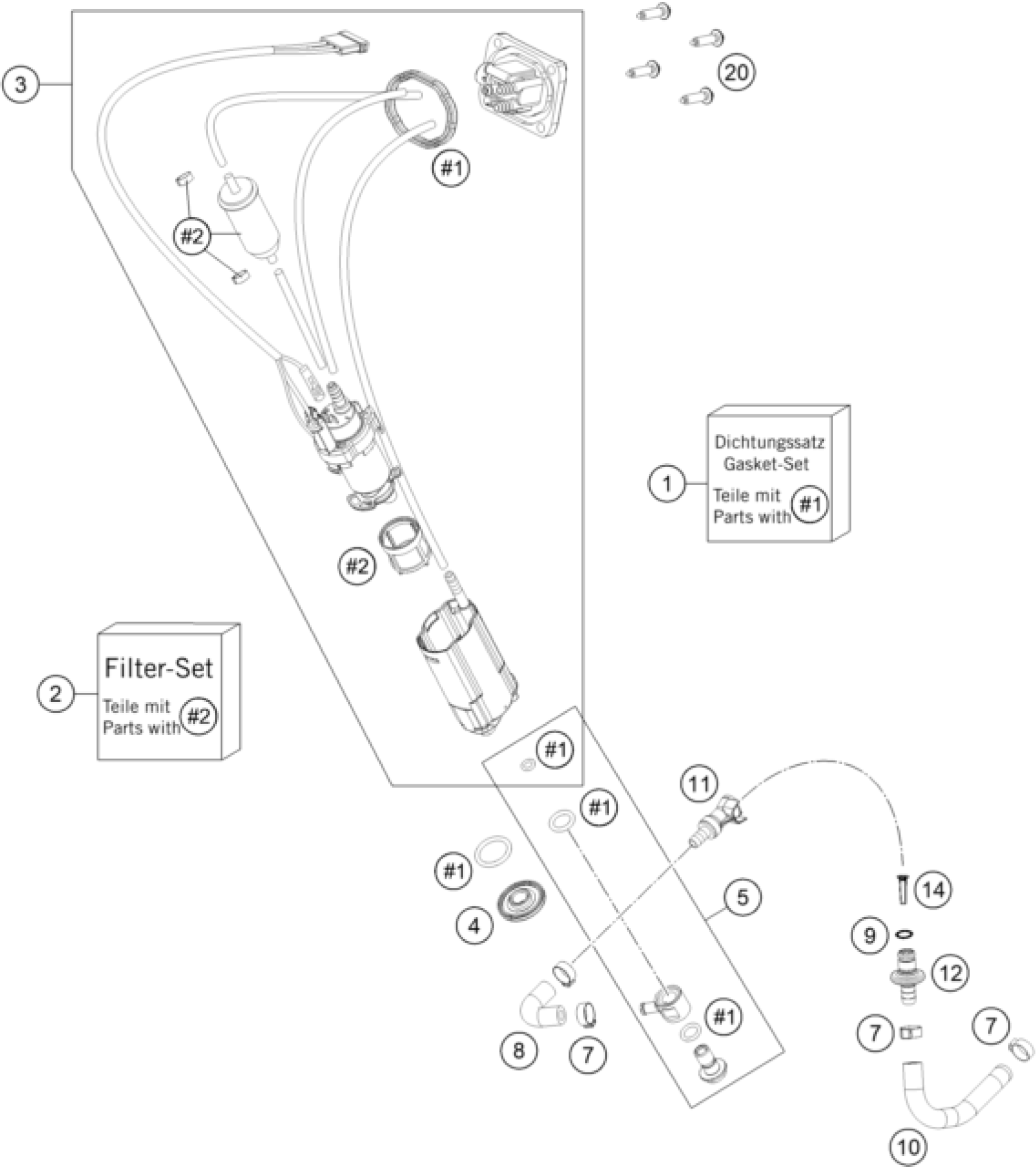

KTM 250 XC-F 2020 FUEL PUMP Diagram
