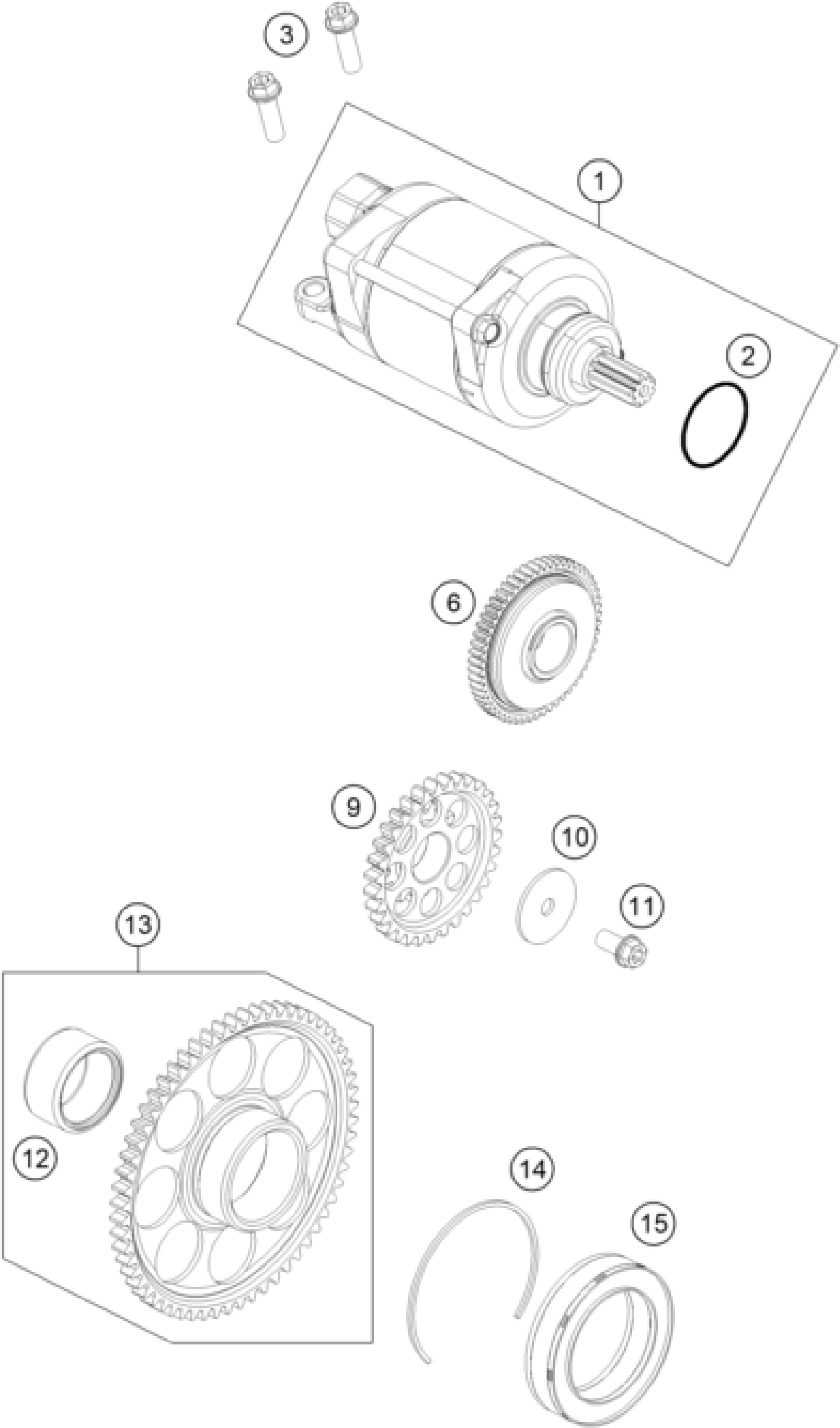

KTM 250 XC-F 2020 ELECTRIC STARTER Diagram

#

Description

Price

1

E-STARTER ENGINE CPL.

79240001000

$268.43

2

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

3

HH collar screw M6x25 TX30

0025060256

$3.08

6

Torque limiter

79240016100

$188.77

9

Intermediate starting gear

79240022100

$70.68

10

STOP DISC 6X26X1,5

79240017000

$3.08

11

HH collar screw M6x12 TX30

0025060126

$3.08

12

NEEDLE BUSH HK2516 25/32/16 02

0618253216

$9.90

13

freewheel gear cpl.

79240020033

$45.06

14

CIRCLIP DIN0472-57X1,50

0472057150

$2.05

15

FREEWHEEL

79240026000

$83.95
