CYLINDER HEAD

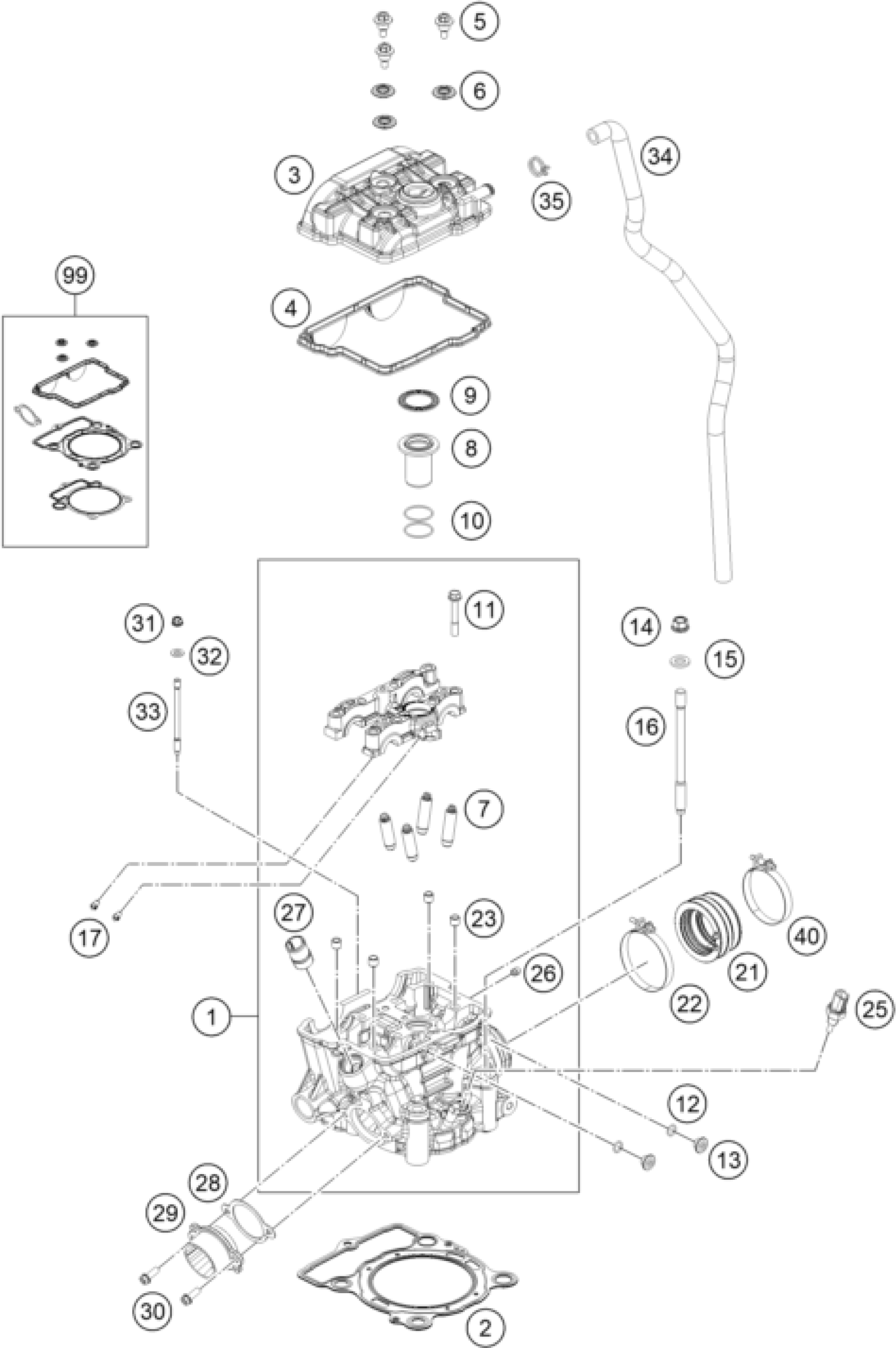

KTM 250 XC-F 2020 CYLINDER HEAD Diagram
#
Description
Price
1
CYLINDER HEAD CPL.
79036020044
$796.89
2
CYLINDER HEAD GASKET
79030036086
$96.20
3
VALVE COVER
7773605200033
$56.09
4
VALVE COVER GASKET
77736053000
$15.70
5
VALVE COVER SCREW
77336054150
$5.23
6
RUBBER GASKET FOR SCREW
77036054150
$4.11
7
VALVE GUIDE OUTLET
77136026001
$27.85
8
INSERT SPARK-PLUG SHAFT
77736075000
$18.88
9
GASKET SPARK-PLUG SHAFT
77336053050
$5.88
10
O-RING 1,5x26
0770260015
$3.08
11
Collar screw M7x1x42
77330067242
$1.49
12
O-RING 9x1,5 V80 SH
07700900151
$2.05
13
threaded plug
77236080100
$6.63
14
COLLAR NUT M10X1,25 SW13
77336088210
$2.05
15
washer 19x10.5x2.5
77336089010
$4.11
16
STUD BOLT M10X1,25
79230044000
$10.46
17
oil jet 50 M5
60030063050
$9.44
21
RUBBER CUP
79236044100
$38.70
22
Hose clamp GEMI 63mm 05
61036047000
$7.56
23
DOWEL(BUSH BRIDGE)7/9/8 05
77036090000
$5.23
25
water temperature sensor
79435047000
$23.74
26
SCREW PLUG
59030296000
$6.26
27
SCREW IN NOZZLE M20X1,5
58030010200
$8.87
28
GASKET EXHAUST FLANGE
77236041000
$10.93
29
Exhaust flange
79136039000
$31.97
30
HH collar screw M6x16 TX30 SL
0025060166S
$2.05
31
COLLAR NUT M6X1 SW8
77336088106
$12.61
32
WASHER DIN0125-A 6,4
0125060003
$1.49
33
STUD BOLT M6
79230043000
$7.66
34
Engine vent hose
79030087000
$31.59
35
CLAMP YDNAC 10173 (18MM)
58431082300
$2.05
40
Hose clip GEMI 58
77236048000
$12.05
99
CYL. GASKET SET 250 SX-F 16
79230097000
Unavailable
