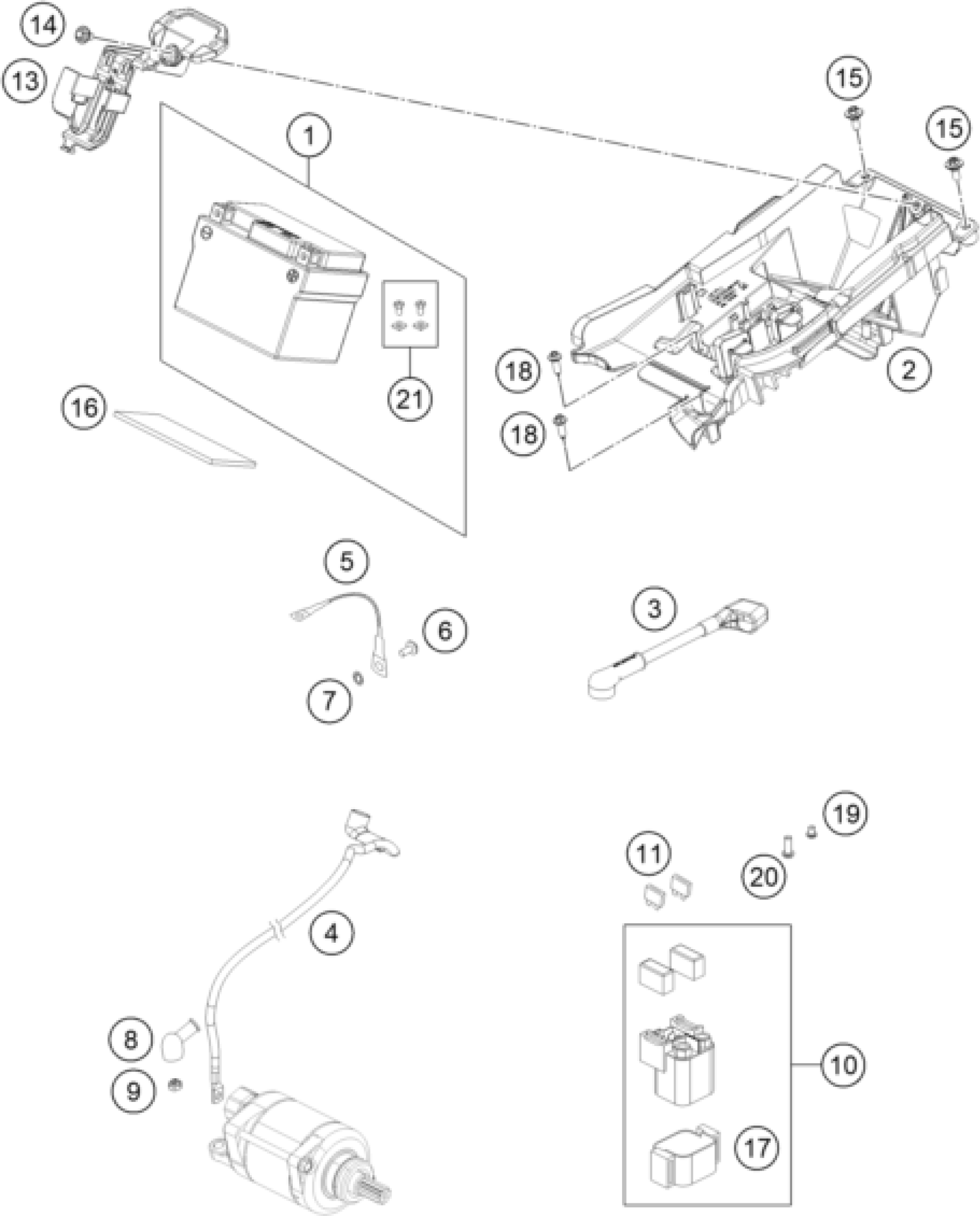

KTM 250 XC-F 2020 BATTERY Diagram

#

Description
Price

1

battery 12V/24Wh

79111053000

$166.05

2

Battery box

79111055000

$31.78

3

Batteriekabel

25111059050

$20.66

4

Starterkabel

25111059000

$20.94

5

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

6

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

7

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

8

Protection cap for starter eng

77240099000

$6.35

9

Self lock. nut DIN985-M6-A2

0985060003

$2.05

10

Starter reley 12V 99

58211058000

$72.64

11

Plug-in fuse, big 10A

58011109110

$2.05

13

battery support

79111056000

$5.79

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

15

SPECIAL SCREW M6X15X3

83008000015

$3.08

16

METAMOLL 90X45X3MM 03

59003001099

$2.05

17

BRACKET RUBBER F.STARTRELAY 07

58211058050

$5.23

18

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

19

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

20

Oval head screw AH socket M6x1

0738060167

$1.49

21

screw kit

79111053010

$4.11
