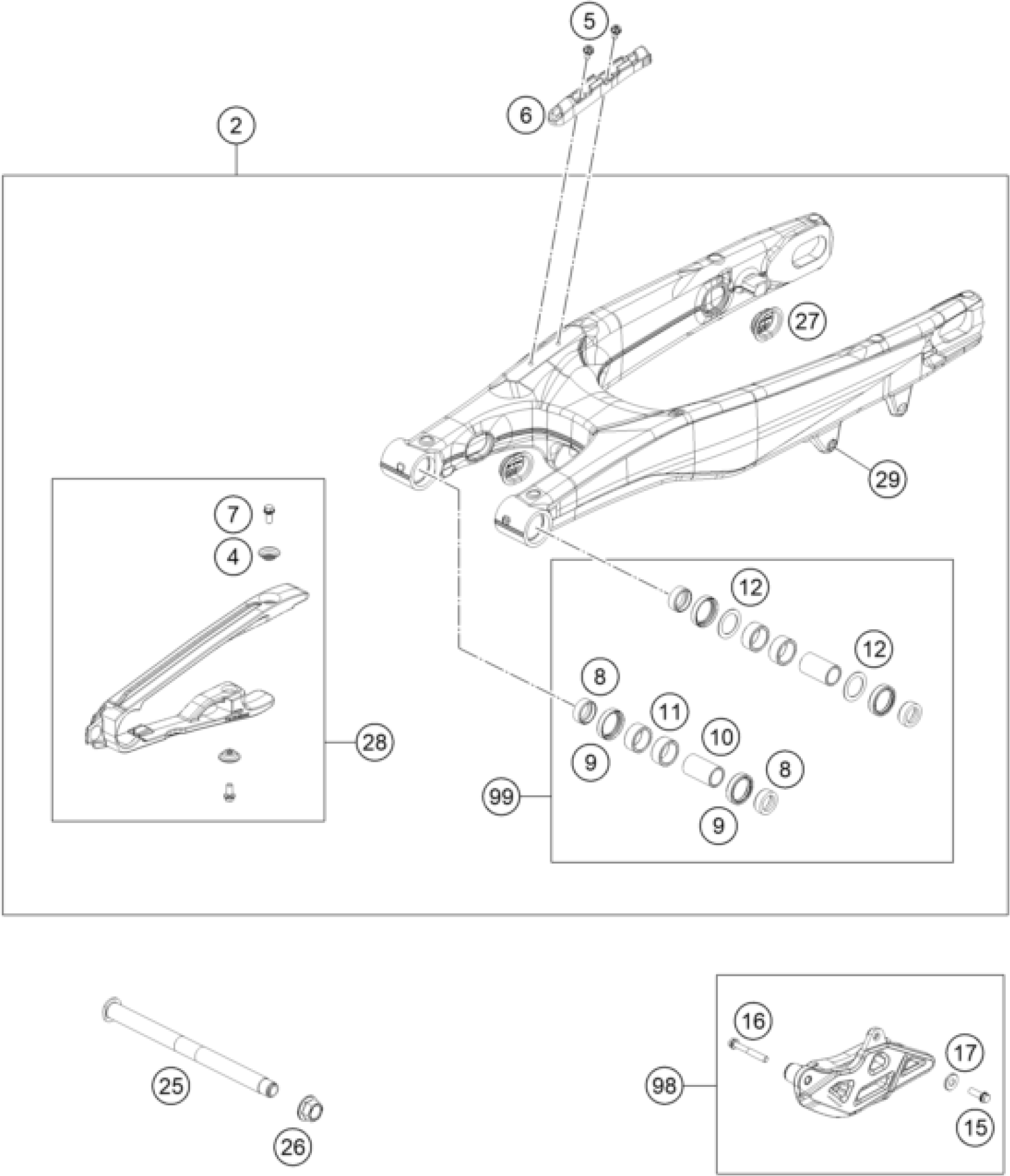

KTM 250 XC-F 2019 SWING ARM Diagram

Swingarm cmpl. 2019

79104030044

$808.58

chain slider bushing

77304066050

$1.49

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

BRAKE HOSE GUIDE

79004042000

$6.07

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

Support f. shaft seal ring 16

77704034000

$13.46

radial shaft seal 25x32x7

0760253270

$6.63

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

Needle bushing HK2212V 22/28/1

0618222812

$9.81

STOP DISK 22,2X31,7X1

54603036000

$3.08

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

$3.08

SWING ARM M16X1,5 2016

79004037000

$78.91

Nut with flange M16X1,5 WS=19

54804038000

$2.05

Locking cap swingarm

77204041000

$4.11

Chain guard cpl.

77204066010

$23.37

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

CHAIN GUIDE KIT REAR SX-F 14

77704070210

$54.88

SWING ARM REPAIR KIT SX-F

79004030010

Unavailable
