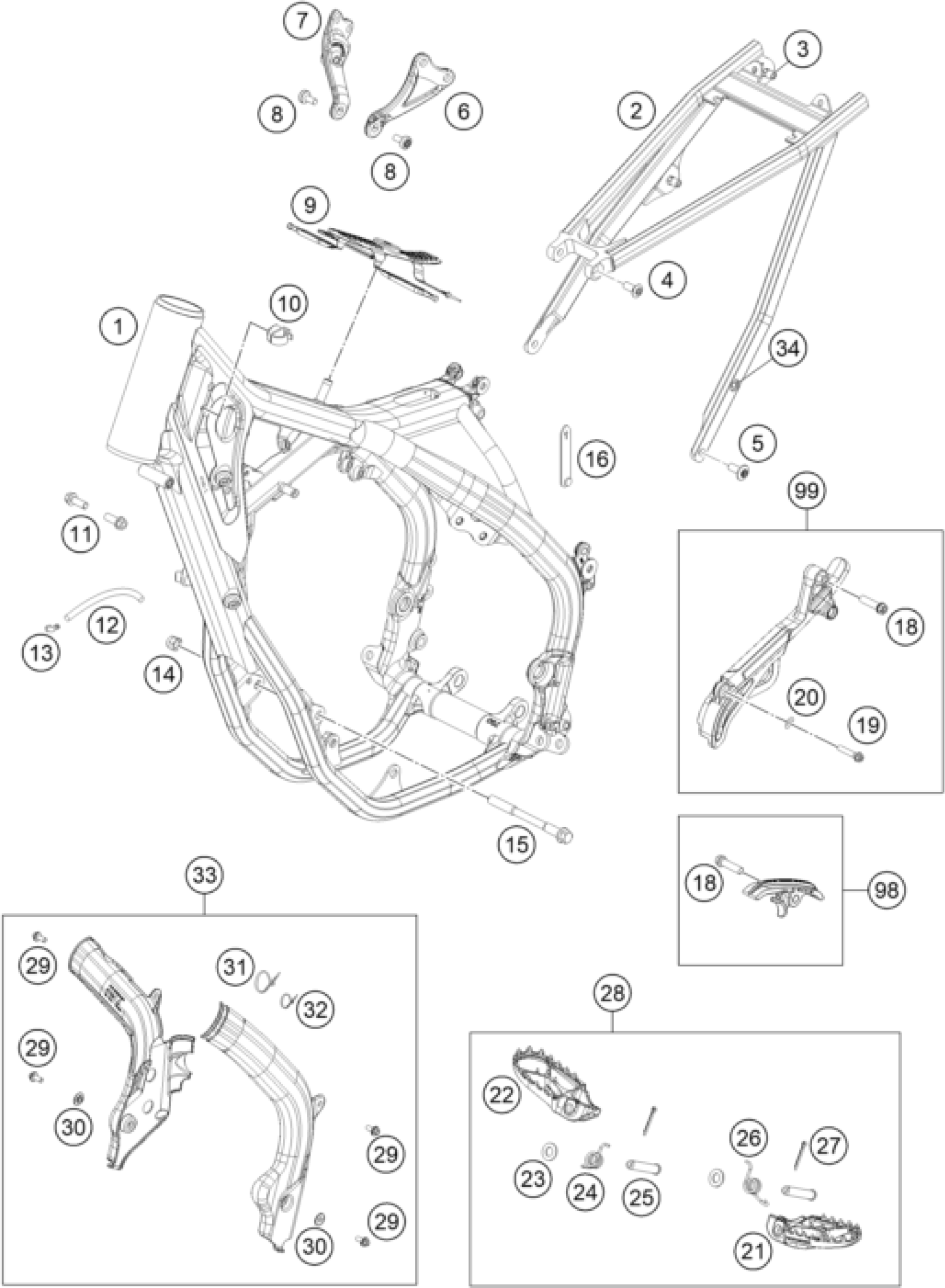

KTM 250 XC-F 2018 FRAME Diagram
#
Description
Price
1
Frame "790R4" electr. orange
79003001500EB
$1,606.34
2
SUBFRAME 2016
79003002000
$267.78
3
BLIND RIVET NUT EM6-60LF/HX
77303139000
$4.11
4
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
5
Special screw M8X18 TORX45 SL
79003003000
$3.08
6
ENGINE BRACE LEFT
79003013100
$48.14
7
ENGINE BRACE R/S
79003014100
$57.40
8
SHCS M8x20 TX45
0035080206S
$5.32
9
TANK REST RUBBER
79607012000
$10.09
10
CABLE SUPPORT KHS NR.150-47610
58111076000
$4.11
11
HH collar screw M8x16 TX40 SL
0025080166S
$3.08
12
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
13
ANGLE PIECE '97
50303089000
$5.23
14
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
15
engine brac.scr. M10x115
77203014000
$8.97
16
RUBBER CABLE TIE 75MM 03
60011093075
$5.23
18
HH collar screw M8x30
0025080306
$3.08
19
HH collar screw M6x40 TX30
0025060406
$3.08
20
WASHER DIN0125-A 6,4
0125060003
$1.49
21
FOOTREST L/S 2016
79003040000
$41.51
22
FOOTREST R/S 2016
79003041000
$41.51
23
washer DIN 125 A 10.5
0125100003
$2.05
24
FOOTREST SPRING R/S 2016
79003044000
$2.05
25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
26
FOOTREST SPRING L/S 2016
79003045000
$2.05
27
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
28
FOOT PEGS SET CPL. 2016
79003040033
$101.16
29
HH COLLAR SCREW M 5X12 WS=6
0014050123
$2.05
30
Bush f. frame protection 03
54803092060
Unavailable
31
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
32
CABLE TIE 140/2,5MM BLACK
44011076140
$1.49
33
FRAME PROTECTION SET ORANGE
79003094000EB
$36.55
34
BLIND RIVET NUT M6 KNURLED
79003002080
$3.08
98
CHAIN SLIDING KIT BELOW CPL.16
79003053010
$17.85
99
SPROCKET COVER KIT
79003096010
$24.77
