Description

Price

1

WIRING HARNESS XC-F

79211075100

$353.33

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

8

CONDENSER 2016

79011035000

$76.76

10

HH collar screw M6x20 TX30

0025060206

$3.08

12

INDICATOR LIGHT EFI+RES CPL.14

77714081000

$44.22

13

SUPPORT INDICATOR LIGHT XC

77214098100

$4.11

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

16

DUMMY PLUG MAPSELECTSWITCH

77211010050

$5.23

17

END PLUG CAN-BUS 08

69011040000

$20.00

19

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

21

DUMMY PLUG AN 4-PIN

81211096000

$8.69

9

BRACKETKIT CONDENSER

79011036044

$9.06

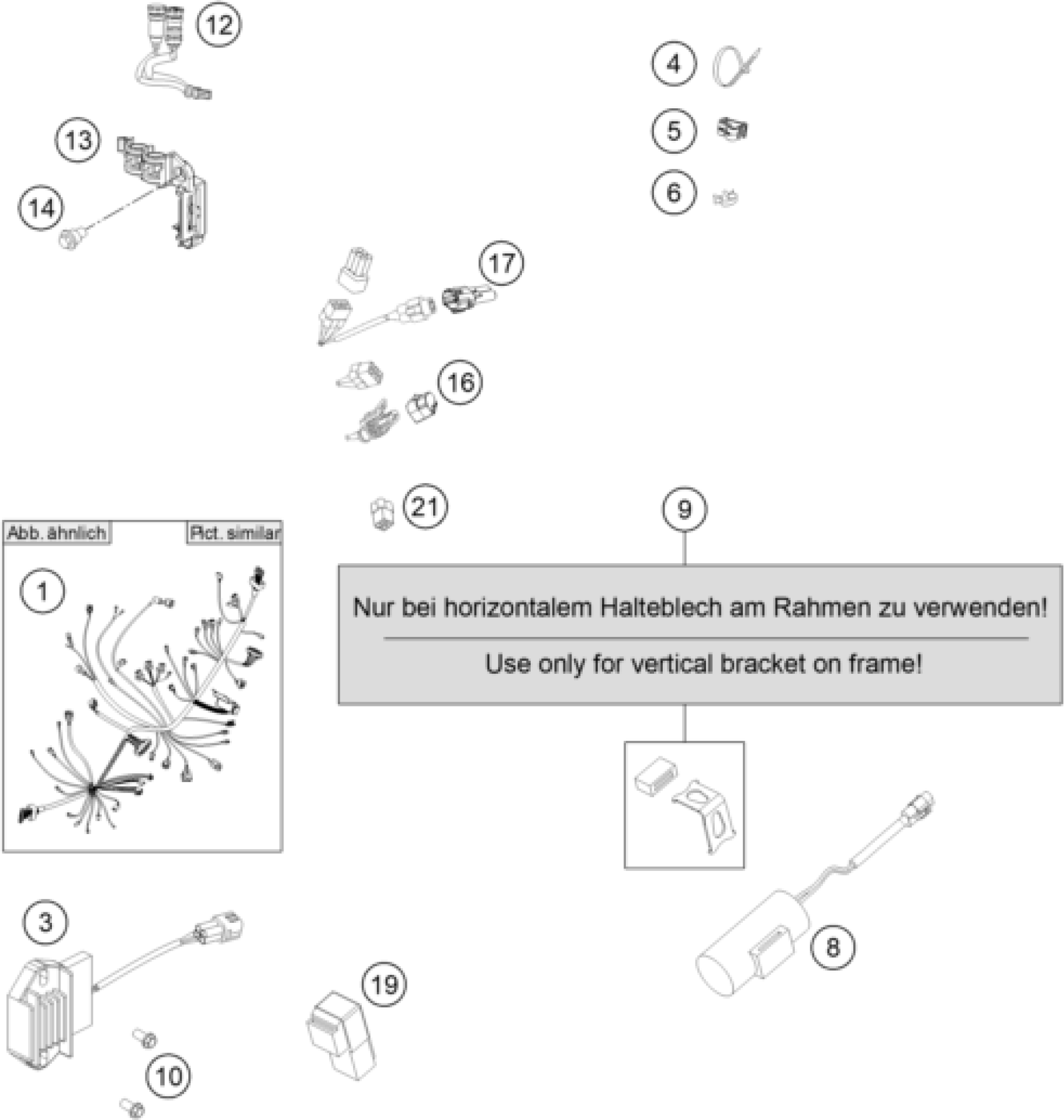

KTM 250 XC-F 2016 WIRING HARNESS Diagram

WIRING HARNESS XC-F

Voltage regulator

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

Line guide

CABLE SUPPORT KHS NR.150-47610

CONDENSER 2016

HH collar screw M6x20 TX30

INDICATOR LIGHT EFI+RES CPL.14

SUPPORT INDICATOR LIGHT XC

SPECIAL SCREW M6X12,5 WS=8

DUMMY PLUG MAPSELECTSWITCH

END PLUG CAN-BUS 08

RELAY CM1A-R-12V-H80 07

DUMMY PLUG AN 4-PIN

BRACKETKIT CONDENSER
