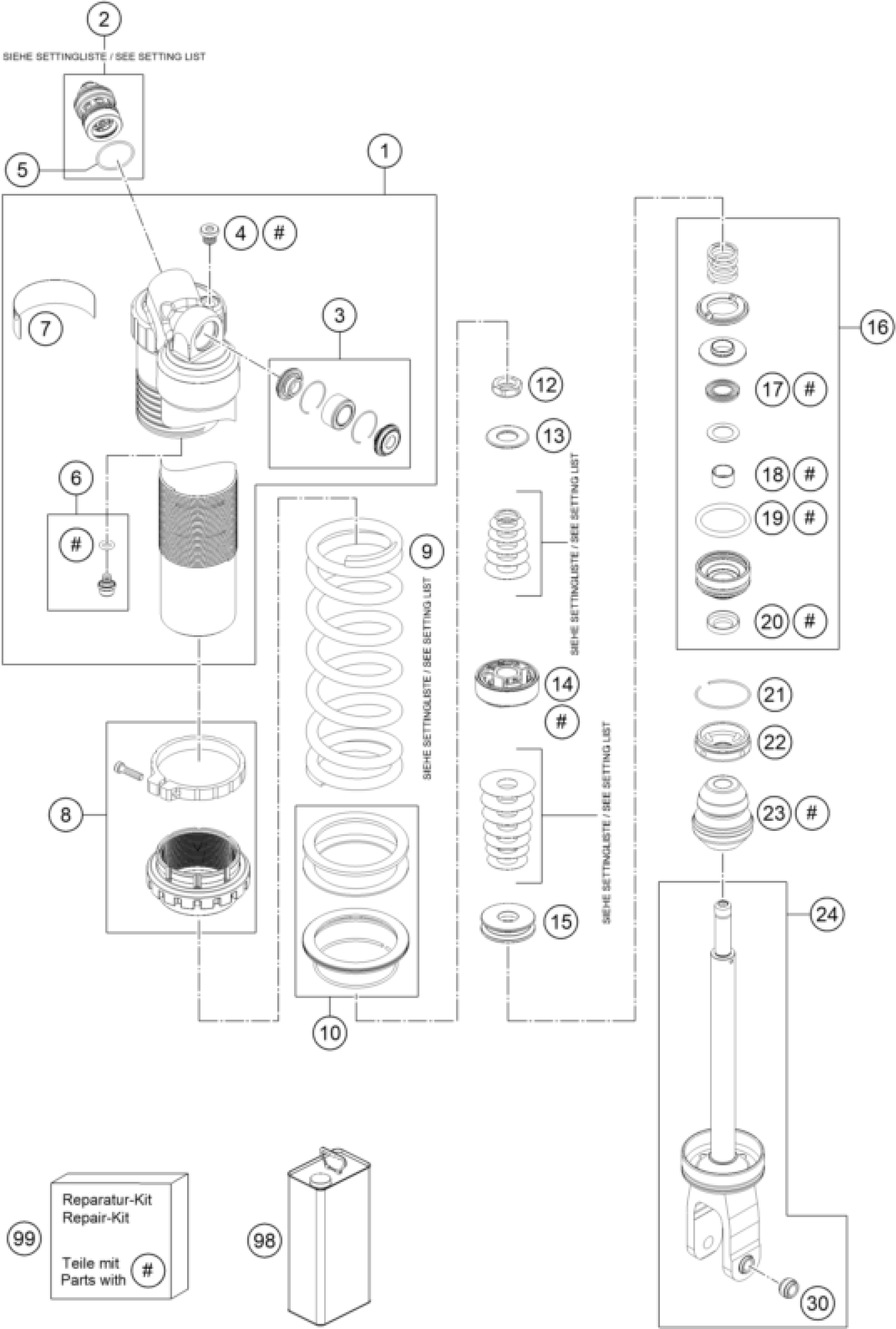

KTM 250 XC-F 2016 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSOCK UPPER PART CPL.

50181040S1

$548.29

2

Compression cpl.

50181101S1

Unavailable

3

Ball joint bearing kit 12mm

R12025

$36.93

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

O-ring 25x1,5 Viton70

50180218

$2.05

6

PLUG SCREW M5X6 CPL.

36120151S

$4.11

7

STICKER WP WARNING

52000128

$2.05

8

Spring retainer M58,1x2 plasti

50180991S

$35.05

9

SPRING 247 42 N/MM

91210106S

Unavailable

9

SPRING 247 45 N/MM

91210107S

Unavailable

9

SPRING 247 48 N/MM

91210108S

Unavailable

9

SPRING 252 51 N/MM

91210109S

Unavailable

10

SPRING PLATE SET

50180824S

$38.23

12

Locking nut M12x1 h7,5 WAF19

50181112

$7.85

13

Rebound disc 12x34x2 h0

50181092

$21.31

14

Piston 12x49,6x20 cpl.

50181030E

$51.32

15

Rebound disc 12x43x12,5 h8

50181091

$25.70

16

Sealholder 50x28 cpl.

50180603SA

$63.10

17

Seal ring cpl. 18x30x5

50180605S

$22.06

18

Guide bushing 18x20x12

46180119

$6.35

19

O-ring 41x5 NBR70

50180103

$1.49

20

Dirt scarper NOK 18mm black

50180606

$7.85

21

Round-wire snap ring 53x1,75

50180126

$1.49

22

Cover 50x6 h16

50180626

$45.81

23

Rubber pad 18x58x46 black

50181100

$19.35

24

MONOSHOCK BOTTOM PART CPL.

50181032S1

$296.20

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

99

REP. KIT 5018 LINK 2016 US/HQV

R12029

Unavailable

2

DCC-COMPR.DAMP.CONTROL LINK 16

50181101S2

Unavailable

2

DCC-COMPR.DAMP.CONTROL LINK 16

50181101S3

Unavailable

30

Bush M10x12/15/13x9,5

46811205

$6.72
