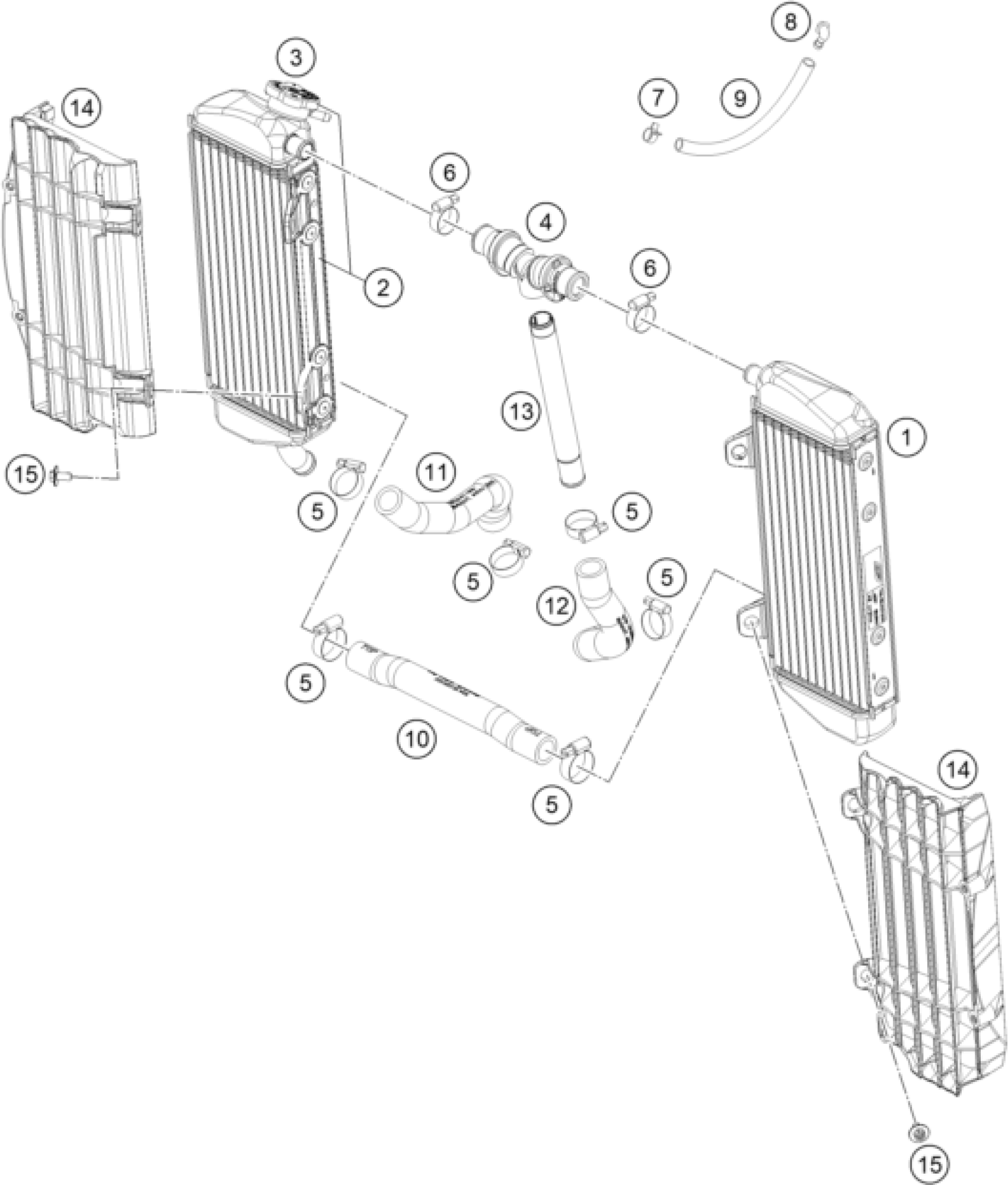

KTM 250 XC-F 2016 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR LEFT 16

50435007000

$200.74

2

RADIATOR RIGHT 16

50435008000

$244.59

3

RADIATOR CAP 1,8 BAR

79035016000

$28.51

4

Y-PIECE CPL.

79035071044

$53.57

5

HOSE CLAMP GEMI 18-29

10001020000

$2.05

6

HOSE CLAMP NORMA 14/24

42013037400

$2.05

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

8

ANGLE PIECE '97

50303089000

$5.23

9

PVC-HOSE 6X9

50335030001

Unavailable

10

PREFORMED HOSE RADIATOR

50435025000

$21.87

12

HOSE ENGINE Y-PIECE

79035024000

$11.59

13

COOLING WATER PIPE

50435073000

$19.44

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

14

RADIATOR PROTECT 2016

7903503400030

$18.13

11

PREFORMED HOSE WATER PUMP

79235027000

$16.63
