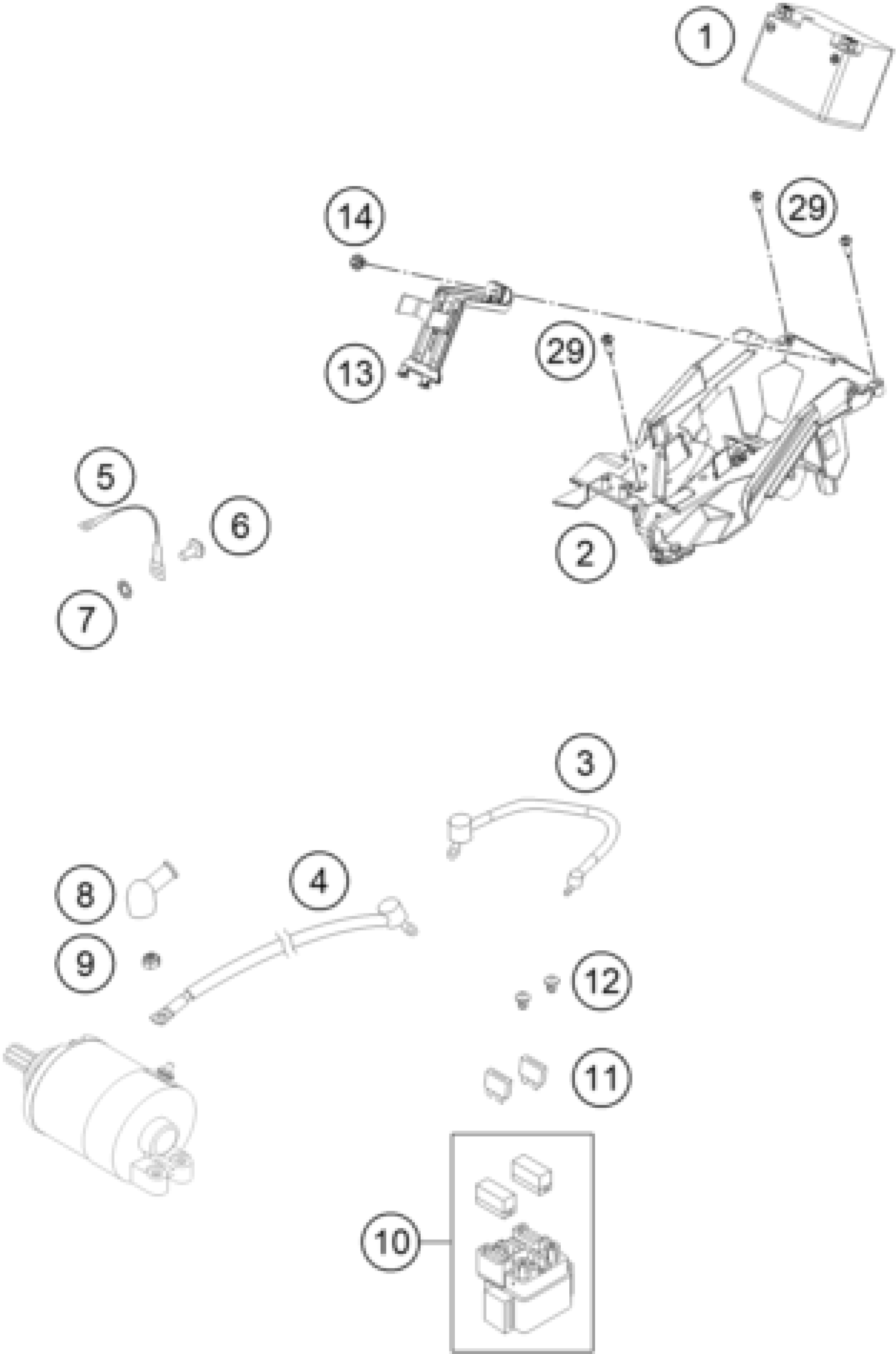

KTM 250 XC-F 2016 BATTERY Diagram

#

Description
Price

1

LITHIUM ION BATTERY 5S

77311953000

$166.05

2

BATTERY BOX

79011055100

$37.86

3

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

4

STARTERCABLE 700 MM '97

58411059100

$23.65

5

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

6

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

7

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

8

Protection cap for starter eng

77240099000

$6.35

9

Self lock. nut DIN985-M6-A2

0985060003

$2.05

10

Starter reley 12V 99

58211058000

$72.64

11

Plug-in fuse, big 10A

58011109110

$2.05

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

13

BATTERY BOX SUPPORT

79011056100

$3.08

29

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05
