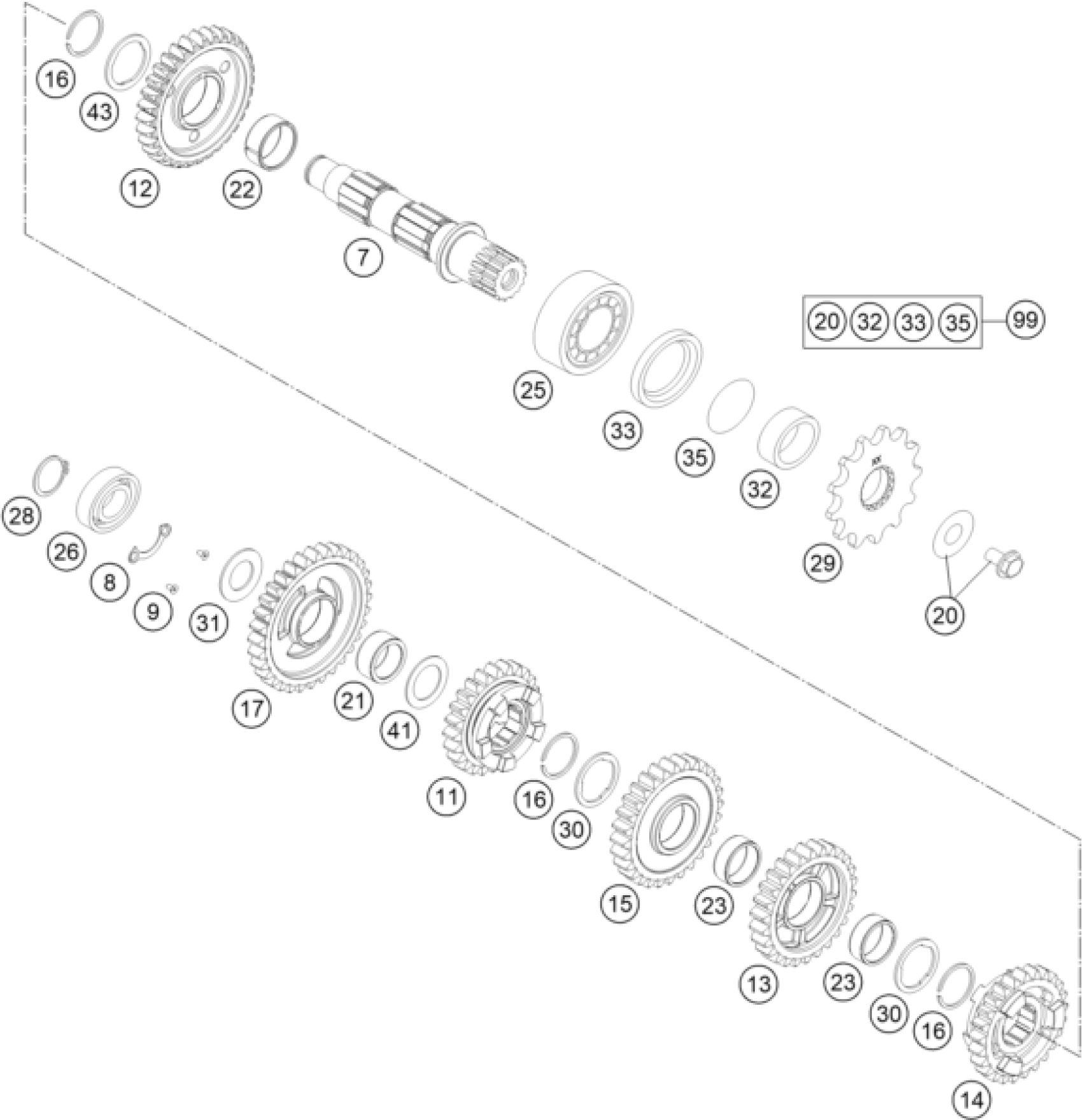

KTM 250 XC-F 2015 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

COUNTERSHAFT

77733110000

$124.53

8

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

9

hex lobe countersunc screw M5x

0019050106S

$2.05

11

SLIDING GEAR 6TH GEAR, 20T

72033016000

$107.98

12

IDLER GEAR 2ND G. T=30

77733112000

$134.16

13

IDLER GEAR 4.G. Z=28

77733114100

$76.47

14

SLIDING GEAR 5.G.,Z=23

77733115100

$102.56

15

IDLER GEAR 3.G. Z=24

77733113100

$120.14

16

CIRCLIP WS24

0417024000

$2.05

17

IDLER GEAR 1ST G. T=32

77733011000

$141.18

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

NEEDLE BEARING K 20X26X12

0405202612

$10.93

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

25

cylindrical roller bearing NJ2

49030023000

$74.42

26

BALL BEARING 6203 JR2 C3

0625062035

$14.48

28

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

30

STOP DISC 23,4X31X1,5

77733043000

$3.08

31

STOP DISK 17,2X30X1,3

77233020000

$4.11

32

SPACER BUSHING 12MM

54633014100

$20.94

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

35

O-RING 25,12X1,78 NBR70

0770020220

$3.08

41

STOP DISC 20,2X30X1

54833080000

$3.08

43

STOP DISC 24X32X1,5

77733044000

$4.11

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
