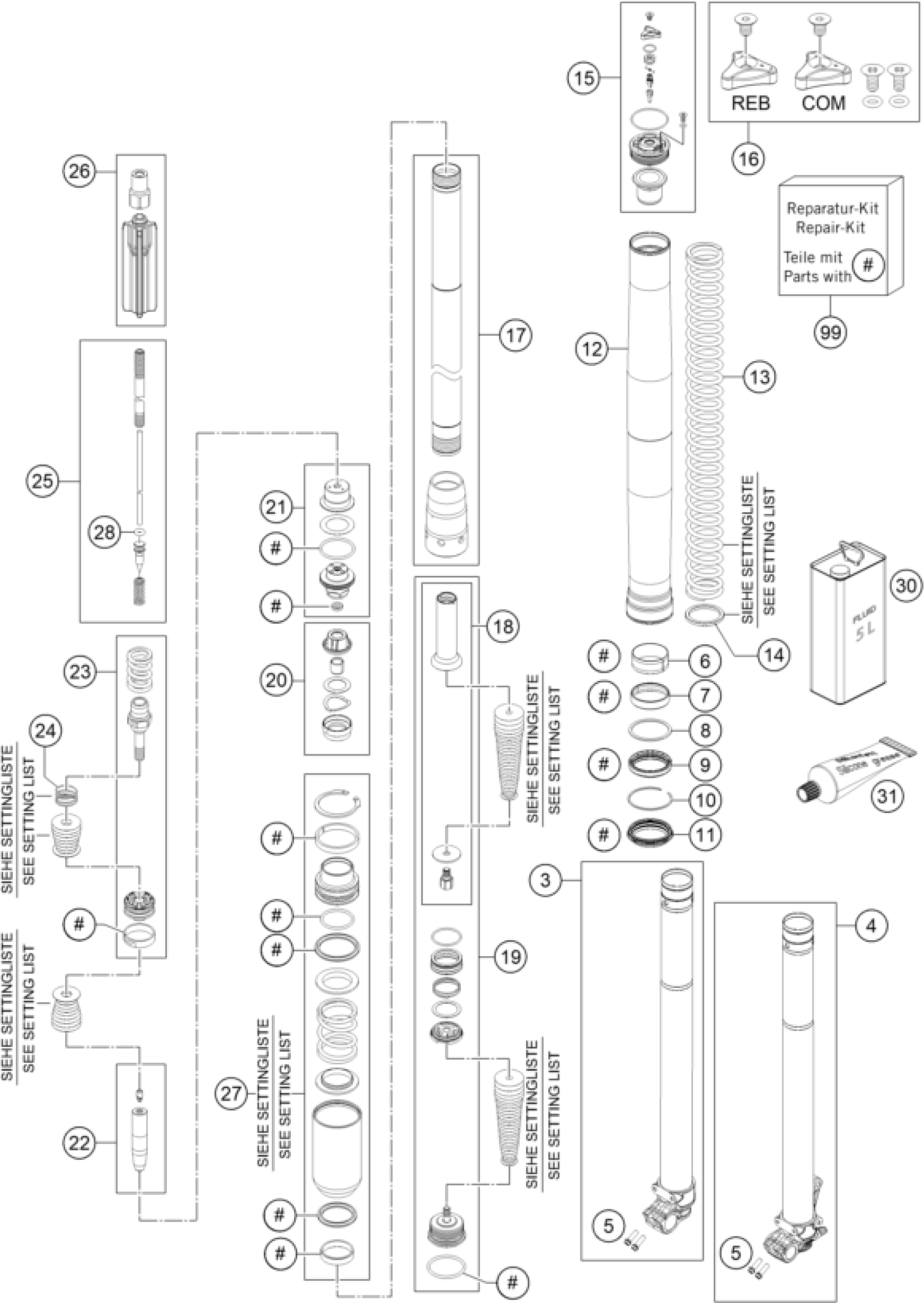

KTM 250 XC-F 2015 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

27

PRESSURE TANK FOR 24187O51 CPL

48601315S2

Unavailable

27

pressure vessel for 24187O73 c

48601315S1

Unavailable

13

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

15

Screw cap M51x1,5 Zugsture cpl

48601050E

$62.82

16

SCREW CAP SMALL PART KIT

R14033

$6.82

17

CARTRIDGE KIT

48601031S

$109.39

18

HYDROSTOP KIT

R14044

$28.21

19

BASE VALVE KIT

48601403S

$79.09

20

Check valve d21mm cpl.

48601025S1

$28.88

21

SCREW SLEEVE KIT

R14035

$60.95

22

NEEDLE KIT

48601123S

$34.52

23

TAP KIT

R14045

$34.96

24

Spring (11,4) 0,4-8 valve

48600382

$2.05

25

PISTON ROD CPL.

48601343S

$105.09

26

SPRING GUIDE CPL.

48601035S1

$14.27

27

PRESSURE TANK FOR 24187O57 CPL

48601315S3

Unavailable

30

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

31

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR - KIT

R24001

Unavailable

15

Screw cap M51x1,5 compression

48601116E

$62.82

13

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

3

AXLE CLAMP R/S WITH INNER TUBE

48601327S1

$379.05

4

AXLE CLAMP L/S WITH INNER TUBE

48601326S1

$408.27

5

HH collar screw M8x25

0025080256

$2.05

6

Guide bushing 47x49x20

48601008

$12.05

7

Guide bushing 48x52x12

48601009

$12.05

8

Supportwasher 50x57,6x1,5

48600013

$3.08

9

Shaft seal SKF 48x57,9x11,4 re

48601179

$13.64

10

Snap ring SB58x1,5 acc drawing

48600070

$2.05

11

Dirt scarper SKF 48mm red

48601178

$12.80

12

Fork outer tube 49,13x577 dt54

48600736

$462.35

13

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

13

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

13

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

13

SPRING 5,0N/MM SET D=4,9MM

91410105S

Unavailable

14

Washer 35x43x2,5 plastic

48600456

Unavailable

14

Washer 35x43x1,5 plastic

48600458

Unavailable

28

O-ring 2,2x1,6 Viton75 green

46811265

$1.49
